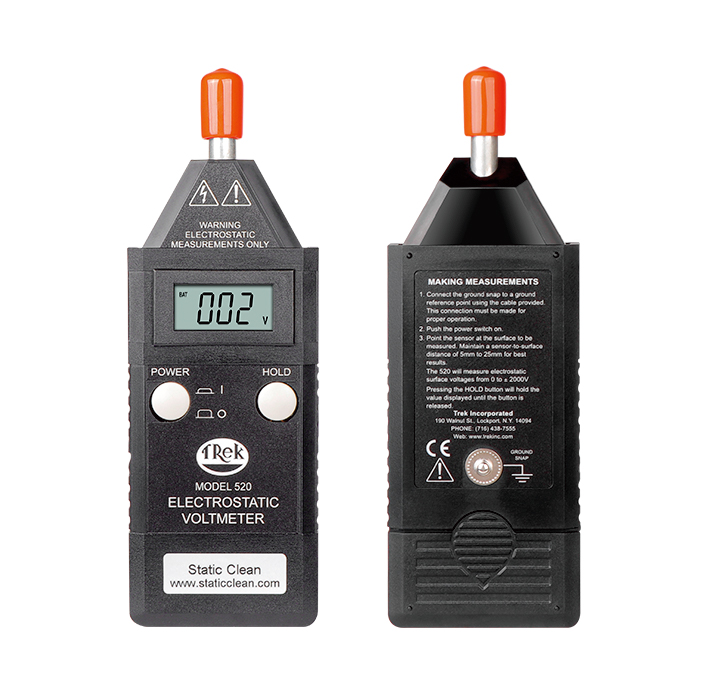

Portable Measurement of Surface Static Voltage

The TREK520 is designed to measure electrostatic voltage on surfaces without making direct electrical contact. This makes it useful when checking charged materials, work surfaces, equipment, and other objects where a contact probe is not practical.

The instrument measures DC electrostatic surface voltage from 0 to +2kV, providing a convenient solution for routine static control inspections.

Non-Contact Testing for ESD Environments

The measurement method allows operators to inspect static voltage from a defined distance while keeping the instrument electrically isolated from the tested surface. This is particularly useful in ESD-controlled work areas and locations where charged surfaces need to be checked without disturbing the test object.

The supplied probe design is intended to provide stable readings during normal measurement procedures.

Fast Response for Changing Static Conditions

With a response time of less than 25 ms and a sampling rate of approximately 2.5 measurements per second, the TREK520 can respond quickly to changes in surface voltage.

This allows operators to observe static conditions during material handling, production processes, and other operations where electrostatic levels may change over time.

Clear LCD Readout and HOLD Function

The instrument uses a 3-digit LCD display to present the measured voltage. A HOLD function is provided so that a reading can be retained for easier observation after measurement.

The straightforward control layout helps operators carry out routine checks without a complicated setup process.

Stable Readings for Routine Inspection

The TREK520 is designed for stable measurement performance under specified operating conditions. Its temperature coefficient is listed at less than 600 ppm/°C, while the time stability is specified at less than 600 ppm/hour.

The specified measurement accuracy is within ±5% of full scale.

Compact Handheld Construction

Measuring approximately 31 mm × 59 mm × 173 mm and weighing around 200 g, the TREK520 is suitable for portable inspection work.

Its compact form makes it convenient to carry between production stations, laboratories, ESD work areas, and other testing locations.

Typical Applications

The TREK520 can be used for:

ESD workstation inspections

Electronics manufacturing

Static-sensitive component handling

Electronic assembly areas

Laboratory testing

Ionization system checks

Production line static monitoring

Static-control maintenance

Quality inspection

Technical Specifications

Model: TREK520

Function: Electrostatic surface voltage measurement

Measurement Range: 0 to +2kV DC

Operating Temperature: 15°C to 35°C

Measurement Humidity: 10% to 90% RH

Time Stability: <600 ppm/hour

Temperature Stability: <600 ppm/°C

Response Time: <25 ms

Sampling Rate: Approximately 2.5 measurements per second

Measurement Accuracy: <±5% of full scale

Voltage Output: 1.3 jack

Compensation Voltage: <10 mV

Output Noise: <25 mV RMS

Output Impedance: 47Ω

Display: 3-digit LCD

Dimensions: 31 mm × 59 mm × 173 mm

Weight: Approximately 200 g

Test Voltage: 1/1000

Power Supply: 9V battery or rechargeable battery with charger, depending on configuration

Practical ESD Monitoring Solution

The TREK520 provides a simple approach to checking electrostatic surface voltage without connecting the meter directly to the test object. Its compact size, quick response, readable display, and portable power supply make it suitable for repeated measurements across different points in an ESD-controlled environment.

FAQ

What does the TREK520 measure?

The TREK520 measures electrostatic surface voltage using a non-contact measurement method.

What is its measurement range?

The specified measurement range is 0 to +2kV DC.

Does the instrument require direct contact with the surface?

No. It is designed for non-contact electrostatic voltage measurement.

How quickly does it respond to voltage changes?

The specified response time is less than 25 ms.

What type of display does it use?

The TREK520 uses a 3-digit LCD display.

Does it have a HOLD function?

Yes. The HOLD function allows a measured value to be retained for easier viewing.

How much does the meter weigh?

The instrument weighs approximately 200 g.

Where can the TREK520 be used?

It can be used in electronics manufacturing, ESD workstations, laboratories, static-control areas, and other environments where surface electrostatic voltage needs to be monitored.
