Product Overview

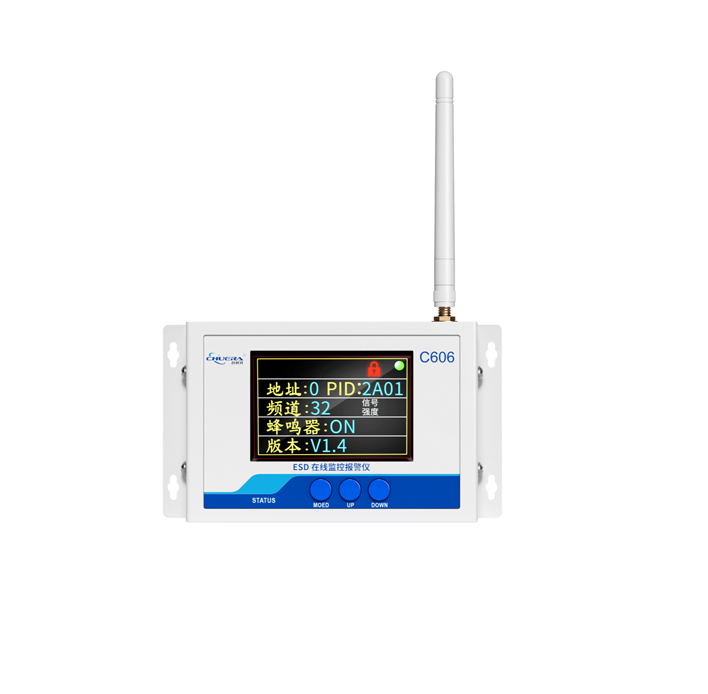

The CHUERA-C606 wireless ESD alarm Unit is developed for production environments where ESD abnormalities need to be noticed quickly and clearly.
The device is designed for networked operation rather than isolated monitoring. It can work together with wrist strap monitors, grounding monitors, ionizers and other ESD control equipment. When an abnormal condition is detected within the connected system, the C606 provides an alarm reminder to help operators and production supervisors respond in time.
Its combination of audible warning, visual indication and external tower light support makes it particularly useful on electronics production lines where ESD conditions need to be visible from a distance.
Networked ESD Alarm Management
Modern ESD control often involves several types of monitoring equipment across a production area.
The CHUERA-C606 acts as an alarm unit within this connected monitoring system and can be used together with:
This approach allows abnormal conditions detected by different ESD devices to be communicated more clearly to production personnel.
Instead of requiring operators to watch every individual monitor continuously, the alarm unit provides a more direct way to highlight conditions that require attention.
Audible and Visual Alarm
The CHUERA-C606 provides both sound and visual alarm indication.
The audible warning helps draw attention when an abnormal condition occurs, while the visual indication gives operators a quick way to check the current status.
This is useful in busy manufacturing environments where employees may be working at different positions along the same production line.
By combining sound and light warnings, ESD-related issues can be identified more quickly without relying entirely on the display of an individual monitoring device.

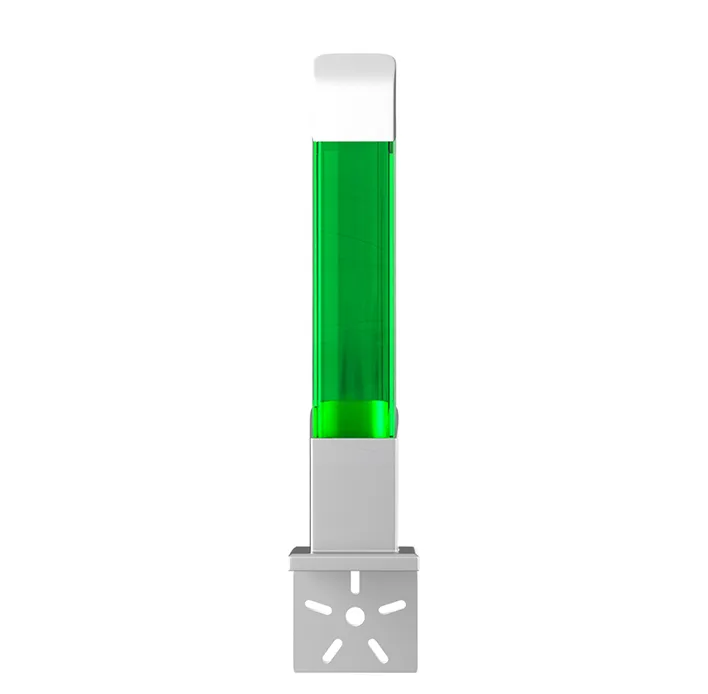

External Three-Color Tower Light
The C606 supports connection to an external three-color alarm light for improved visibility on the production floor.
The indicator status is defined as:
Green: Normal
Red: Abnormal
Yellow: Not in use
The external light can be positioned where operators or supervisors can easily see it, making it suitable for production lines, work cells and other areas where ESD monitoring status needs to be visible from a distance.
Designed for Production-Line Warning
A monitoring device can detect a problem, but the information is only useful when the people on site notice it quickly.
The CHUERA-C606 focuses on this part of the ESD management process.
When used together with connected ESD monitoring equipment, the C606 provides a clear alarm point for the production area. This makes it easier for operators, technicians and line supervisors to recognize abnormal conditions and carry out further inspection.
It is especially suitable for production lines where several anti-static devices are operating at the same time.
Wireless System Integration
As a wireless ESD alarm unit, the CHUERA-C606 is suitable for production environments where flexible system deployment is required.
Wireless operation can reduce the amount of communication wiring needed between monitoring points and make it easier to integrate alarm units into an existing ESD management layout.
This is particularly useful when multiple workstations or production-line sections need to be monitored as part of the same ESD control system.
Leakage Voltage Alarm Monitoring
The CHUERA-C606 includes leakage voltage related monitoring capability.
The product specification provides a leakage voltage reference value of less than 20 mV, with an accuracy of ±10% and a maximum adjustable value of 1000 mV.
This function can be used as part of the overall ESD monitoring and warning process to help identify abnormal electrical conditions associated with connected equipment.
Compact Design
The C606 main unit weighs approximately 0.4 kg and is designed for convenient installation in industrial environments.
Its compact enclosure allows it to be installed near production equipment, workstations or other ESD control devices without occupying unnecessary space.
The front display provides local operating information, while the external alarm light can be positioned according to the actual layout of the production line.
Technical Specifications
| Parameter | Specification |
|---|
| Model | CHUERA-C606 |
| Product Type | Wireless ESD Alarm Unit |
| Power Supply | DC 9V / 1A |
| Power Consumption | 9W |
| Main Unit Power | 0.25W |
| Alarm Method | Audible and Visual Alarm |
| External Indicator | Three-Color Tower Light |
| Normal Status | Green |
| Abnormal Status | Red |
| Not in Use | Yellow |
| Leakage Voltage | <20 mV |
| Accuracy | ±10% |
| Maximum Adjustable Value | 1000 mV |
| Operating Method | Networked Use |
| Weight | Approx. 0.4 kg |
Main Features
Designed for networked ESD monitoring systems
Works with wrist strap monitors, grounding monitors and ionizers
Provides audible alarm reminders
Provides clear visual status indication
Supports an external three-color tower light
Helps production personnel identify ESD abnormalities quickly
Suitable for production-line and workstation alarm applications
Wireless design supports flexible system deployment
Compact main unit for easier installation
Supports leakage voltage related alarm monitoring
Typical Applications
The CHUERA-C606 can be integrated into ESD-controlled manufacturing environments where abnormal conditions need to be communicated clearly to operators and supervisors.
Typical applications include:
SMT production lines
PCB assembly
Electronics manufacturing
Semiconductor production
Precision electronic assembly
ESD Protected Areas
Workstations using wrist strap monitoring
Equipment grounding monitoring systems
Production areas equipped with ionizers
Automated manufacturing lines
Centralized ESD monitoring systems
Electronics testing and assembly workshops
A Clearer Way to Handle ESD Abnormalities
In a production environment, ESD management is not only about collecting monitoring data. The abnormal condition also needs to reach the right person quickly.
The CHUERA-C606 provides a simple connection between ESD monitoring and on-site warning.
When a connected device reports an abnormal condition, the C606 can use sound and visual indication to make the issue more noticeable. An external tower light can further improve visibility across a production line.
For factories already using wrist strap monitors, grounding monitors, ionizers or other ESD equipment, the C606 can be added as part of a more complete alarm and monitoring system.
FAQ
What is the CHUERA-C606 used for?
The CHUERA-C606 is a wireless ESD alarm unit used to provide audible and visual warnings when abnormal conditions occur within a connected ESD monitoring system.
Does the CHUERA-C606 need to be connected to a network?
Yes. The product is designed for networked use and works together with other ESD monitoring equipment.
What equipment can work with the C606?
It can be used together with wrist strap monitors, grounding monitors, ionizers and other compatible ESD monitoring devices.
Does the C606 provide an audible alarm?
Yes. The device provides sound alarm reminders when abnormal conditions are detected.
Does it provide a visual alarm?
Yes. Visual status indication is supported, and an external three-color tower light can also be connected.
What do the three tower light colors indicate?
Green indicates normal operation, red indicates an abnormal condition, and yellow indicates that the monitored point is not in use.
Can the C606 be used on an SMT production line?
Yes. It is suitable for SMT lines, PCB assembly areas, electronics manufacturing workshops and other ESD-controlled production environments.
What is the power supply?
The standard power supply is DC 9V / 1A.
What is the power consumption?
The specified power consumption is 9W, while the main unit power is 0.25W.
What is the leakage voltage specification?
The leakage voltage reference value is less than 20 mV, with an accuracy of ±10%. The maximum adjustable value shown in the product specification is 1000 mV.
Can an external alarm light be installed?
Yes. The CHUERA-C606 supports an external three-color tower light for clearer production-line status indication.
Where is the CHUERA-C606 commonly used?
It can be used in electronics factories, SMT workshops, PCB assembly lines, semiconductor production, ESD Protected Areas and other manufacturing environments that use centralized ESD monitoring.
