Direct Measurement for Conductive Surfaces

The CHUERA-780-1 is designed for applications where electrostatic voltage needs to be measured directly from a conductive surface. Its contact measurement method provides a practical solution for checking static voltage at specific test points during production, inspection, and ESD control procedures.

The extended sensing cable helps operators position the measuring probe without needing to move the main instrument close to the test area.

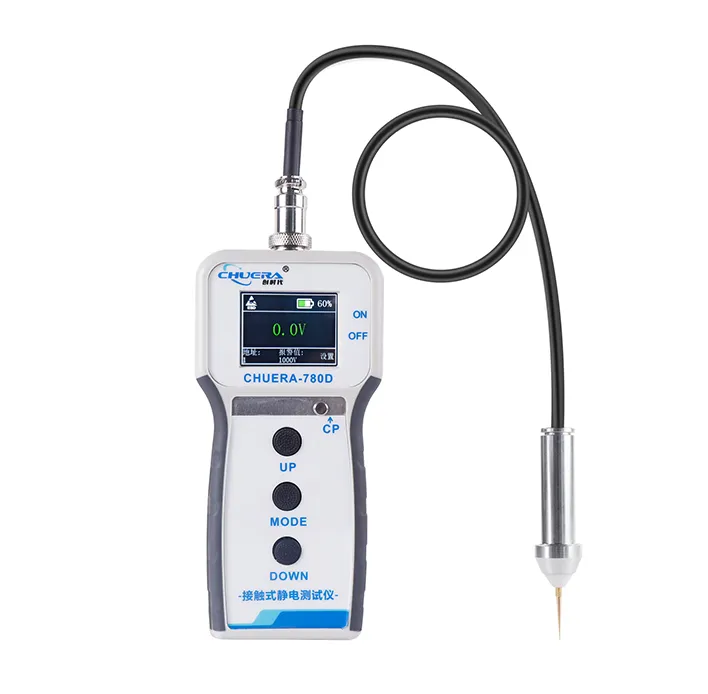

Compact Instrument with Flexible Probe Connection

The meter uses a handheld design with a separate sensing probe connected through a 60 cm cable. This configuration gives operators more freedom when working around equipment, fixtures, and confined areas.

The main unit measures approximately 165 × 80 × 28 mm, making it convenient to carry between different inspection locations.

Color Display for Quick Reading

A color display provides a clear view of measurement results and operating information. With a display resolution of 0.1V, the instrument can show relatively small changes in the measured voltage.

The control interface combines the display with physical buttons, allowing operators to move through operating modes and adjust settings during testing.

Measurement and Recording Functions

The CHUERA-780-1 supports a measurement range from -2000V to +2000V, with an accuracy of ±5%. Its sampling rate can be set within 1 to 10 measurements per second.

The built-in memory can store up to 10 × 10 records, making it possible to retain measurement results for later reference during inspection work.

Adjustable Alarm and Access Control

An adjustable alarm function can provide a visual reminder when the measured value reaches a preset condition. The instrument also supports password-based management, which can help control access to certain operating settings in production environments.

Rechargeable Power System

The unit uses a built-in lithium battery and operates from a DC 12V system. Charging and signal output are provided through a Type-C interface, offering a convenient connection method for routine charging and operation.

Suitable Applications

The CHUERA-780-1 can be used for conductive surface voltage checks in:

Electronics manufacturing

ESD-controlled workstations

Electronic assembly areas

Static-sensitive production lines

Laboratory environments

Quality inspection departments

ESD protection equipment verification

Production equipment maintenance

Technical Specifications

Model: CHUERA-780-1

Power Supply: Lithium battery

Operating Voltage: DC 12V

Charging Voltage: DC 12.6V

Charging and Signal Interface: Type-C

Measurement Accuracy: ±5%

Measurement Method: Contact

Display: Color display

Resolution: 0.1V

Sampling Rate: 1–10 measurements per second

Storage Capacity: 10 × 10 records

Measurement Range: -2000V to +2000V

Operation: Touch display and buttons

Product Dimensions: 165 × 80 × 28 mm

Sensing Cable Length: 60 cm

Packaging Dimensions: 250 × 200 × 80 mm

Product Net Weight: Approximately 288 g

Gross Weight: Approximately 745 g

Operating Temperature: -10°C to 55°C

Operating Humidity: 0% RH to 90% RH

Product Advantages at a Glance

The CHUERA-780-1 brings direct contact measurement, data recording, alarm management, and portable operation together in one instrument. The separate probe and 60 cm cable make point testing more convenient, while the rechargeable battery supports repeated use during daily ESD inspection work.

FAQ

What is the CHUERA-780-1 designed to measure?

It is designed for contact measurement of electrostatic voltage on conductive surfaces.

What is the measurement range?

The specified range is -2000V to +2000V.

What is the measurement accuracy?

The specified accuracy is ±5%.

How long is the sensing cable?

The sensing cable is approximately 60 cm long.

Does the instrument store measurement data?

Yes. The built-in storage capacity is up to 10 × 10 records.

Does it have an alarm function?

Yes. The alarm setting can be adjusted according to the testing requirements.

How is the unit charged?

The instrument uses a built-in lithium battery and provides a Type-C charging and signal interface.

Can the operating settings be protected?

Yes. The product supports password-controlled management.

What environments are suitable for this meter?

It can be used in electronics manufacturing, ESD workstations, laboratories, quality inspection areas, and other environments where conductive surface voltage needs to be checked.
