Product Overview

The CHUERA-C620 Electrostatic Field Strength Monitor is developed for environments where static electricity conditions need continuous monitoring.

Static charges can accumulate on materials, equipment surfaces and production areas, creating potential risks for sensitive electronic components. The C620 provides real-time electrostatic field measurement, helping engineers and operators understand the actual static environment during production.

With non-contact detection technology, the monitor reduces the influence caused by direct contact measurement and provides a more convenient method for checking electrostatic conditions.

Non-Contact Electrostatic Measurement

The CHUERA-C620 adopts non-contact measurement technology, allowing users to detect electrostatic field strength without touching the measured object.

This design reduces possible interference caused by physical contact and improves measurement convenience in production environments.

The device supports multiple detection distances according to different inspection requirements.

Available factory calibration distances include:

100mm

300mm

500mm

These options allow users to select a suitable measurement position based on equipment layout and application conditions.

Real-Time Static Field Display

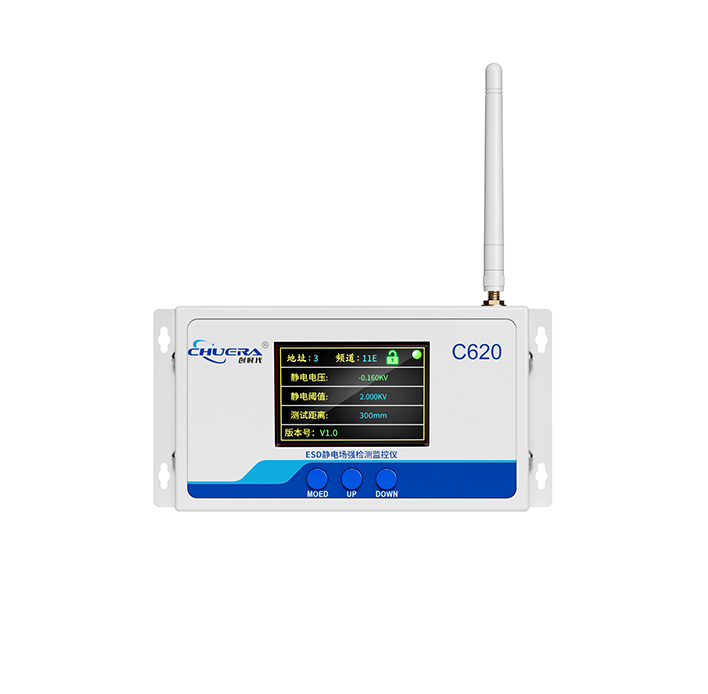

The device is equipped with a 3.5-inch color display for direct viewing of measurement information.

The screen can display:

• Static voltage value

• Alarm threshold

• Detection distance

• Device status

• Operating information

Real-time display allows operators to quickly understand current electrostatic conditions without additional testing equipment.

Adjustable Alarm Management

Different industries and production processes may require different electrostatic control limits.

The CHUERA-C620 supports adjustable alarm thresholds, allowing users to configure monitoring values according to actual requirements.

When the detected electrostatic value exceeds the preset limit, the device can provide an alarm reminder to help personnel identify abnormal conditions.

Default alarm threshold:

±100V

Adjustable alarm range:

±50V to ±5000V

Wide Electrostatic Monitoring Range

The CHUERA-C620 supports a wide monitoring range, making it suitable for different static control applications.

The device can monitor electrostatic voltage conditions from low-level static changes to higher static field variations.

This flexibility allows the monitor to be used in precision electronic manufacturing as well as general industrial ESD management environments.

Wireless Communication Support

The CHUERA-C620 supports wireless communication, providing more flexibility for system installation.

Wireless transmission reduces additional wiring requirements and makes it easier to integrate the monitor into existing ESD management systems.

Supported wireless frequency options include:

2.4GHz

470MHz

The wireless function helps simplify communication between monitoring devices and management platforms.

Fast Response Monitoring

The CHUERA-C620 is designed for quick electrostatic condition detection.

The sampling period is:

100ms

Fast response allows the monitor to capture changes in static field conditions more effectively, especially in production areas where equipment operation and material movement may cause rapid static variation.

Industrial Installation Design

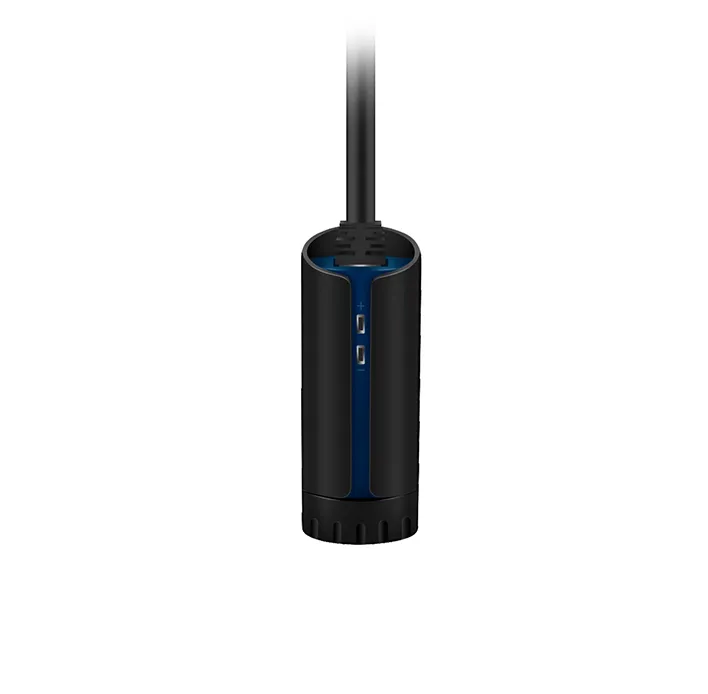

The C620 consists of a monitoring unit and dedicated sensor structure designed for industrial applications.

The device includes:

• Color display

• Operation buttons

• Electrostatic sensor

• Wireless communication module

The compact design allows convenient installation near production equipment, inspection areas and ESD control points.

ESD Environment monitoring

Electrostatic control is an important part of electronics manufacturing and precision production.

The CHUERA-C620 provides a practical solution for checking invisible electrostatic conditions and evaluating whether the working environment meets ESD control requirements.

By monitoring static field changes continuously, users can identify potential problems earlier and improve production environment management.

Typical Applications

The CHUERA-C620 is suitable for environments where electrostatic field monitoring is required.

Typical applications include:

• Electronics manufacturing

• SMT production lines

• PCB assembly

• Semiconductor production

• Precision electronic assembly

• ESD protected areas

• Clean production workshops

• Laboratory environments

• Electronic component inspection

• Static control management projects

Technical Specifications

Model: CHUERA-C620

Product Type: Electrostatic Field Strength Monitor

Rated Voltage: DC 9V / 1A

Default Alarm Threshold: ±100V

Alarm Range: ±50V to ±5000V

Start-Up Waiting Time: 5 seconds

Sampling Period: 100ms

Detection Angle: <15°

Communication Signal: Wireless 2.4GHz / 470MHz

Infrared Control Distance: 1m

Factory Calibration Distance: 100mm, 300mm, 500mm

Display: 3.5-inch color display

Measurement Method: Non-contact electrostatic field detection

Main Features

• Real-time electrostatic field measurement

• Non-contact detection method

• 3.5-inch color display

• Adjustable alarm threshold settings

• Wide electrostatic voltage monitoring range

• Multiple detection distance options

• Wireless communication support

• Fast sampling response

• Suitable for ESD-controlled production environments

• Helps identify static electricity risks during manufacturing

Application Value

Static electricity is invisible during normal production operation, but uncontrolled electrostatic conditions may affect sensitive electronic components and manufacturing stability.

The CHUERA-C620 provides a more efficient way to monitor these invisible conditions by continuously measuring electrostatic field strength.

Through real-time data display and alarm management, users can better understand environmental static changes, verify ESD protection effectiveness and improve production environment control.

For industries requiring strict static management, the C620 provides a practical monitoring solution between basic inspection tools and complete ESD management systems.

FAQ

What does the CHUERA-C620 measure?

The CHUERA-C620 measures electrostatic field strength and monitors static electricity conditions in production environments.

Does the device require contact measurement?

No. The C620 uses non-contact detection technology to measure electrostatic field strength.

What is the adjustable alarm range?

The adjustable alarm range is ±50V to ±5000V.

What is the default alarm setting?

The default alarm threshold is ±100V.

What detection distances are available?

The factory calibration distances include 100mm, 300mm and 500mm.

What information is shown on the display?

The display shows static voltage value, alarm threshold, detection distance and device operating information.

Does the monitor support wireless communication?

Yes. The C620 supports wireless communication through 2.4GHz and 470MHz frequencies.

What is the sampling speed of the device?

The sampling period is 100ms.

Where can the CHUERA-C620 be used?

It is suitable for electronics manufacturing, SMT lines, PCB assembly, semiconductor production, laboratories and other ESD-controlled environments.

Why choose non-contact electrostatic measurement?

Non-contact measurement reduces interference caused by touching the measured object and makes static field inspection more convenient.
