Product Overview
The CHUERA-C608/C609 Wireless Temperature and Humidity Monitoring Device is developed for environments where temperature and humidity conditions need to be monitored continuously.
Instead of relying on manual inspection, the device provides automatic measurement and data collection, helping users understand environmental changes in real time.
The product combines sensing, wireless communication and data management functions in one system. It can be used independently or integrated into a larger intelligent monitoring platform.
The C608/C609 series is suitable for applications where stable environmental conditions are important, including electronics production areas, equipment rooms, laboratories and smart building environments.
Real-Time Environmental Measurement
The device continuously detects temperature and humidity changes and displays current environmental information through the built-in screen or external display unit.
The temperature measuring range is:
-20°C to +80°C
The humidity measuring range is:
0%RH to 100%RH
With real-time measurement capability, users can quickly identify environmental changes and take action before conditions affect equipment operation or production processes.
High Accuracy Sensor Performance
The CHUERA-C608/C609 uses high-precision temperature and humidity sensing technology for stable environmental monitoring.
Technical accuracy:
Temperature accuracy: ±0.3°C
Humidity accuracy: ±3%RH
Resolution:
Temperature: 0.1°C
Humidity: 0.1RH
The measurement performance makes the device suitable for applications where environmental stability needs to be maintained over long operating periods.
Wireless Data Transmission
The device supports wireless communication, making installation more flexible compared with traditional wired monitoring solutions.
Wireless data transmission reduces additional wiring requirements and allows monitoring points to be arranged more conveniently according to the actual environment.
This is especially useful in areas where sensors need to be installed at multiple locations or where cable installation is difficult.
Large Display for Quick Viewing

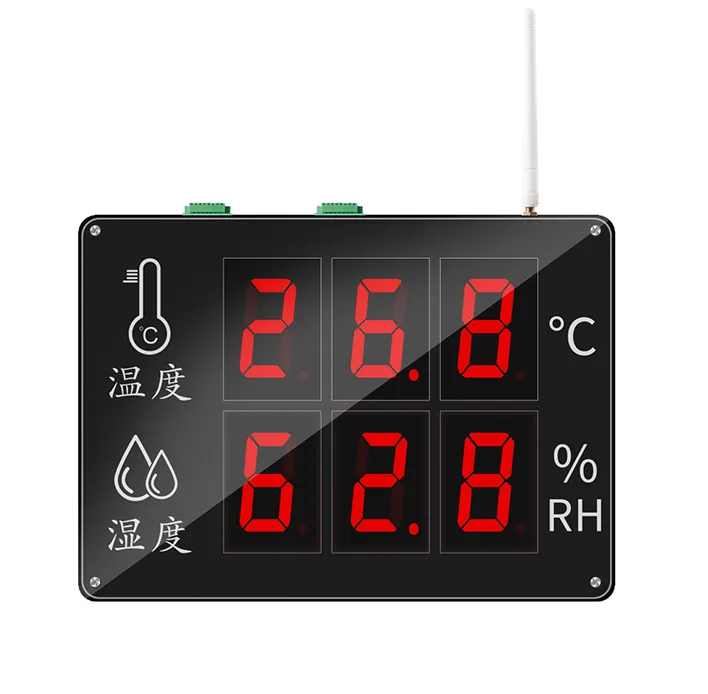

The CHUERA-C609 supports a large visual display design for easier observation in open areas.
The display can show:
Temperature value
Humidity value
Operating status
For workshops, storage areas and equipment rooms, large-format visual information allows personnel to check environmental conditions quickly without accessing the management system.
Data Recording and Historical Analysis
The monitoring system supports environmental data recording.
Historical temperature and humidity information can be stored and reviewed, helping users analyze environmental changes over different time periods.
The recorded data can support:
Environmental trend analysis
Equipment room management
Production environment review
Long-term condition tracking
This provides a more complete understanding of environmental conditions compared with single-time measurements.
Multiple Communication Modes
The CHUERA-C608/C609 supports flexible communication methods to fit different system requirements.
Supported communication modes include:
The communication address range supports 1–247, allowing multiple devices to be integrated into larger monitoring networks.
This flexibility makes the product suitable for both individual monitoring points and multi-device management systems.
Flexible Installation Options
The device supports different installation methods according to the application environment.
Available installation methods include:
Wall mounting
Ceiling installation
This allows the monitor to be installed in different locations according to airflow conditions, monitoring requirements and site layout.
Intelligent Monitoring Applications
The CHUERA-C608/C609 is designed for environments where continuous data visibility is required.
By combining measurement, communication and data management functions, the device helps users move from manual inspection toward intelligent environmental monitoring.
It can be integrated into broader management systems to support centralized monitoring and remote access.
Technical Specifications

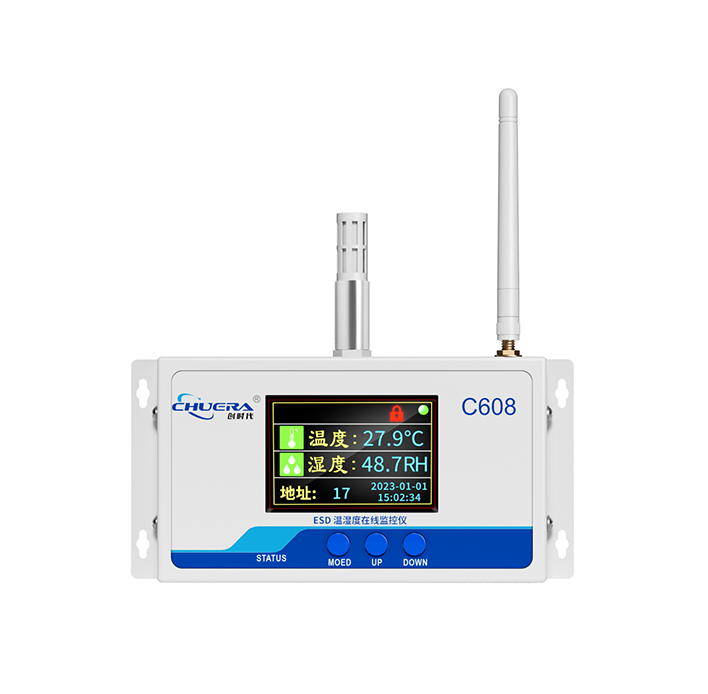

Model: CHUERA-C608 / C609
Rated Voltage: Terminal power supply DC9V–DC30V, POE power supply 48V
Measuring Range: Temperature -20°C to +80°C, Humidity 0–100%RH
Measurement Accuracy: Temperature ±0.3°C, Humidity ±3%RH
Resolution: Temperature 0.1°C, Humidity 0.1RH
Output Interface: RJ45
Communication Address: 1–247
Communication Mode: TCP Server, TCP Client, UDP
Data Sampling Frequency: 10–500ms
Power Consumption: <2W
Switch Output: Optional 1–2 channel switch output
Data Recording: Temperature and humidity records, event records
Effective Working Area: 10–20m² per unit
Installation Method: Wall mounting and ceiling mounting
Main Features
Continuous temperature and humidity monitoring
Wireless data transmission
High accuracy environmental sensing
Real-time display of measurement values
Supports historical data recording
Supports remote monitoring applications
Multiple communication modes available
Low power consumption design
Flexible wall and ceiling installation
Suitable for intelligent environmental management systems
Typical Applications
The CHUERA-C608/C609 can be used in environments where temperature and humidity conditions need continuous monitoring.
Typical applications include:
Electronics manufacturing workshops
SMT production areas
Laboratory environments
Equipment rooms
Data rooms
Storage areas
Smart buildings
Industrial workshops
Precision manufacturing areas
Environmental monitoring projects
Clean production areas
Application Value
Temperature and humidity changes can influence equipment operation, material storage and production stability.
The CHUERA-C608/C609 provides continuous environmental visibility by collecting real-time data instead of depending only on manual inspection.
For facilities that require better environmental control, the device helps create a more efficient monitoring process by combining sensing, communication and data management functions.
FAQ
What parameters does the CHUERA-C608/C609 measure?
The device measures temperature and relative humidity in real time.
What is the temperature measuring range?
The temperature measurement range is -20°C to +80°C.
What is the humidity measuring range?
The humidity measurement range is 0%RH to 100%RH.
What accuracy can the sensor provide?
The temperature accuracy is ±0.3°C and humidity accuracy is ±3%RH.
Can the device record historical data?
Yes. The system supports temperature, humidity and event data recording for later review.
Does the monitor support remote management?
Yes. The device can be integrated into management systems for remote monitoring applications.
What communication methods are available?
The device supports TCP Server, TCP Client and UDP communication modes.
Can the display be viewed from a distance?
Yes. The C609 version supports a larger visual display for easier reading in open environments.
How can the device be installed?
It supports wall mounting and ceiling installation according to different application requirements.
Where is this temperature humidity monitor commonly used?
It is commonly used in electronics workshops, laboratories, equipment rooms, storage areas, smart buildings and industrial environmental monitoring projects.
