Product Overview

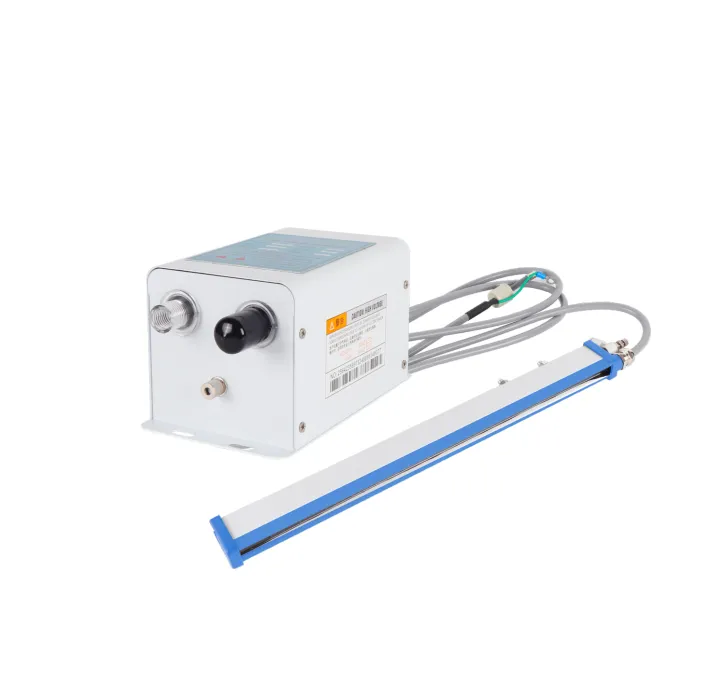

The CHUERA-ST061 is designed for applications that require static elimination over a wider working area rather than treatment from a single point. The bar-shaped ionizing unit can be installed along a production line or positioned above a designated work area.

Its aluminum construction provides a practical balance between structural strength and installation convenience. The bar length can be customized according to the application, allowing the system to match different equipment widths and production layouts.

Continuous Static Neutralization

The ST061 generates ions along the ionizing bar and uses compressed air to help carry the ionized airflow toward the target surface. This arrangement allows static charges to be addressed across a working area instead of concentrating the treatment at one location.

It is suitable for production processes where products move continuously through a defined ESD-control zone.

Flexible Length Configuration

The ionizing section is specified as W15 × H35.5 mm, with a φ30 mm cross-sectional dimension and customizable length.

This configuration gives users more freedom when matching the ionizing bar to different machine widths, conveyor dimensions or workstation layouts.

Compressed-Air Assisted Design

The ST061 is intended for use with clean compressed air. A φ6 mm air connection is specified for the unit.

The airflow assists ion delivery toward the treated surface, making the system suitable for applications where static neutralization and localized particle removal are both relevant.

Aluminum Housing

The main bar is made from aluminum, providing a rigid structure for installation while keeping the overall design practical for industrial use.

The bar can be positioned according to the production equipment and the required treatment area.

Stable Ion Balance

The specified ion balance is ≤±35V.

A controlled ion balance is important in ESD-sensitive environments because effective static elimination requires reducing existing charge without creating a substantial opposite charge on the treated product.

Installation Distance

The recommended working distance is 100–300 mm.

The actual installation position should be selected according to the workpiece size, airflow arrangement and production-line configuration.

Technical Specifications

Model: ST-061

Cross Section: φ30 mm / W15 × H35.5 mm

Length: Customizable

Input Voltage: 220V/50Hz or 110V/60Hz

Output Voltage: AC 7KV

Static Decay Time: ≤2s

Working Medium: Clean compressed air

Working Humidity: <70%

Air Connection: φ6 mm

High-Voltage Cable: 3 m

Ion Balance: ≤±35V

Operating Temperature: 0–50°C

Working Distance: 100–300 mm

Housing Material: Aluminum

Installation Options

The ST061 can be integrated into production equipment where a fixed ionizing position is preferred. It can be arranged across the width of a workstation, positioned above a conveyor or installed near a process point where static buildup frequently occurs.

Because the bar length can be customized, the unit can be adapted to different equipment dimensions rather than being limited to one standard working width.

Typical Applications

The CHUERA-ST061 is suitable for:

• Electronics assembly lines

• PCB handling areas

• Plastic component processing

• Precision manufacturing

• Conveyor-based production

• Packaging operations

• ESD-sensitive inspection

• Surface cleaning processes

• Automated production equipment

• Static-sensitive workstations

Test Performance

The supplied test data shows a neutralization time of ≤1.0s at a test distance of 150 mm. Testing was conducted under the displayed conditions, including an ambient temperature of 5–25°C and relative humidity of ≤60% RH.

The displayed positive and negative balance voltage results are both ≤±15V.

Actual performance can vary with installation distance, airflow, humidity, workpiece material and other operating conditions.

Maintenance Considerations

Keep the ionizing section and air path clean during regular operation. Dust accumulation around the ionizing components may affect airflow and ion generation performance.

The compressed-air supply should remain clean and within the requirements of the installation. Periodic inspection of the cable, air connection and mounting arrangement can help maintain stable operation.

FAQ

What is the CHUERA-ST061 used for?

The ST061 is designed for static charge neutralization across a defined production or workstation area.

Is the ionizing bar available in different lengths?

Yes. The supplied specification indicates that the bar length can be customized.

What material is used for the bar?

The external bar material is specified as aluminum.

What power supply is required?

The unit supports 220V/50Hz or 110V/60Hz input.

What is the output voltage?

The specified output voltage is AC 7KV.

What compressed air connection is used?

The specified air connection is φ6 mm.

What type of air should be supplied?

The ST061 is designed for use with clean compressed air.

What is the recommended working distance?

The specified working distance is 100–300 mm.

What is the ion balance specification?

The specified ion balance is ≤±35V.

How long is the standard high-voltage cable?

The supplied specification lists a 3 m high-voltage cable.

What temperature range is supported?

The specified operating temperature is 0–50°C.
