Product Overview

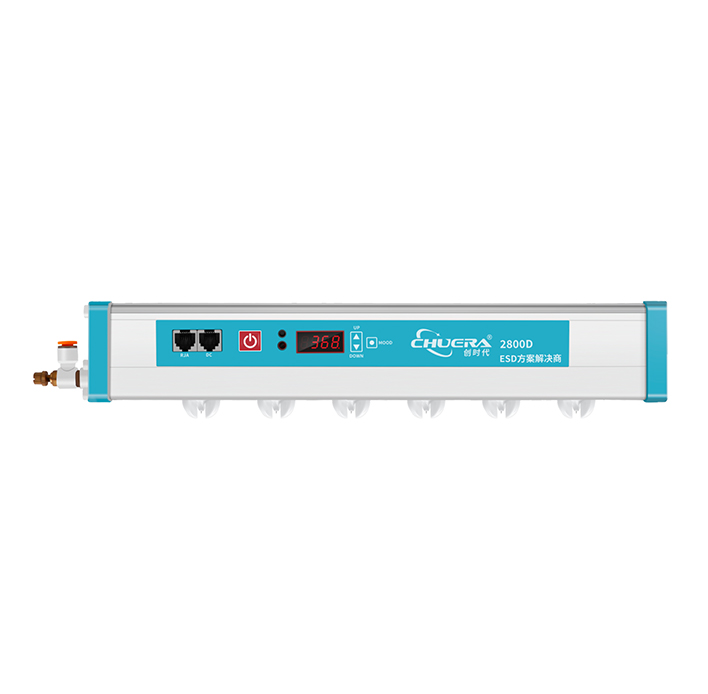

CHUERA-2800D is an intelligent ion bar developed for applications where stable static control is required across a wider working area. The unit combines an ionizing air bar with a digital control interface, allowing operating parameters and ion balance conditions to be checked directly from the panel.
The system uses clean compressed air as the working medium and provides an adjustable ion balance of up to ±10V. Its aluminum housing is suitable for fixed installation above or beside production equipment, while the replaceable emitter-pin design simplifies routine maintenance.
With network and DC power interfaces, the CHUERA-2800D can also be integrated with compatible communication equipment for remote monitoring and parameter management.
Design Details

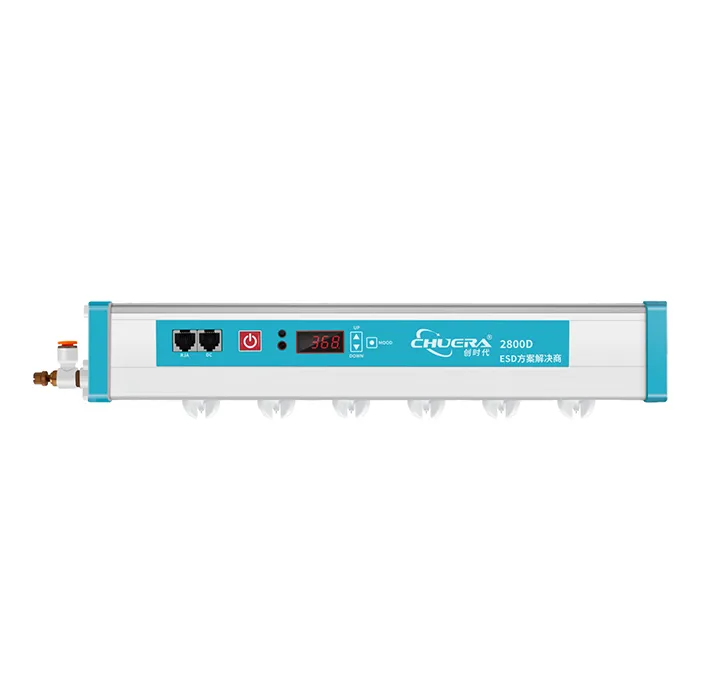

The ion bar features a practical linear structure for installation in production lines and confined working spaces. Emitter pins are arranged along the bar to provide ion coverage across the target area.

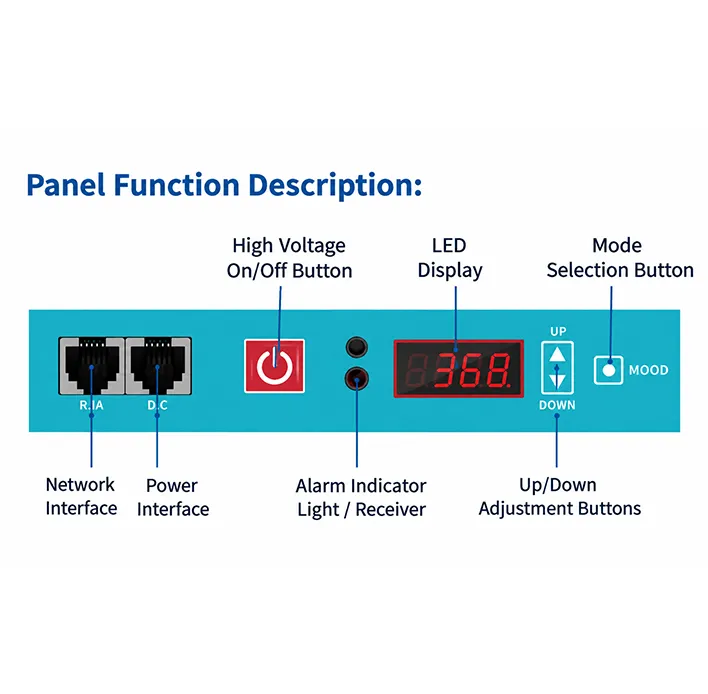

The front control panel includes an LED display, high-voltage control button, mode selection button, adjustment keys, network interface, DC power interface, and alarm indicator. Operators can check the displayed status and adjust relevant settings without accessing the internal components.
The emitter pins can be replaced individually, helping reduce maintenance work when an emitter component requires service.
Operating Advantages
High-frequency AC discharge helps neutralize accumulated static charges.
Adjustable ion balance supports different static-control requirements.
Digital LED display provides convenient parameter viewing.
Replaceable emitter pins simplify maintenance.
Aluminum housing provides a solid structure for fixed installation.
Network communication interfaces are available for compatible monitoring systems.
Compressed-air operation helps distribute ions toward the target surface.
Adjustable operating frequency can be selected according to the installation distance and application requirements.
Grounding protection is incorporated into the equipment design.
Technical Specifications
| Item | Specification |
|---|
Model | CHUERA-2800D |
Input Voltage | DC24V ±10% |
Discharge Voltage | ±5.6kV (5%) |
Power Consumption | 22W |
Ion Balance | ≤ ±10V, adjustable |
Working Temperature | 0°C to 50°C |
Noise | <65dB |
Working Medium | Clean compressed air |
Compressed Air Pressure | 0–0.5MPa, typical 0.3MPa |
Working Distance | 0–300mm |
Discharge Time | ≤2s |
Operating Humidity | 35–80% RH, non-condensing |
Air Connector | Φ6mm, customizable according to requirements |
Air Flow | 2L/min ±10% at 0.1MPa |
Ion Generation Method | AC discharge |
Voltage Output | High-frequency AC |
Output Frequency | 10–50Hz, selectable according to test distance |
Emitter Pin Replacement | Replaceable |
Installation and Maintenance
CHUERA-2800D is intended for fixed installation near the area where static electricity needs to be controlled. The working distance should be selected according to the production process and required ion coverage.
During routine maintenance, the emitter pins and air outlet area should be kept clean. The replaceable emitter structure allows worn or damaged pins to be serviced without replacing the complete ion bar.
For compressed-air operation, clean and suitable air should be supplied within the specified pressure range. Proper grounding and installation should also be maintained during operation.
Typical Applications
The CHUERA-2800D can be used in production environments where static electricity may affect materials, components, equipment operation, or product handling. Typical applications include:
Electronics assembly lines
PCB and semiconductor processing
Plastic film and sheet production
Printing and packaging equipment
Precision component handling
Automated production machinery
Material feeding and conveying systems
Industrial workstations requiring static control
Product Value in Production Lines
Static charges can interfere with lightweight materials, attract dust, affect component handling, and create unwanted electrostatic discharge. The CHUERA-2800D provides a continuous ionization source positioned close to the working area, helping maintain a more stable electrostatic environment.
Its adjustable settings and digital interface allow operators to adapt the equipment to different installation conditions. The combination of replaceable emitter pins and a compact linear housing also makes it practical for production lines where maintenance access and installation space need to be considered.
FAQ
What is the CHUERA-2800D used for?
It is designed to reduce and neutralize static electricity in industrial production and material-handling environments through ion generation.
What power supply does the CHUERA-2800D use?
The specified input power is DC24V ±10%.
Can the ion balance be adjusted?
Yes. The ion balance is specified at ≤ ±10V and can be adjusted according to operating requirements.
What type of air does the unit use?
The system uses clean compressed air, with a specified pressure range of 0–0.5MPa.
Can the emitter pins be replaced?
Yes. The emitter pins are designed to be replaceable, making routine maintenance more convenient.
What is the recommended working distance?
The specified working distance is 0–300mm. The actual installation position should be selected according to the production process and static-control requirements.
Does the unit have a digital display?
Yes. The control panel includes an LED display for viewing operating information and adjustment-related parameters.
Can the CHUERA-2800D be connected to a network?
The product is equipped with a network interface and can support compatible network communication and monitoring configurations.
Is the output frequency adjustable?
The specification lists a selectable output frequency range of 10–50Hz, with selection based on the application and test distance.
Is the housing suitable for fixed installation?
Yes. The linear aluminum housing is designed for fixed installation in production equipment and work areas where static control is required.
