Product Overview

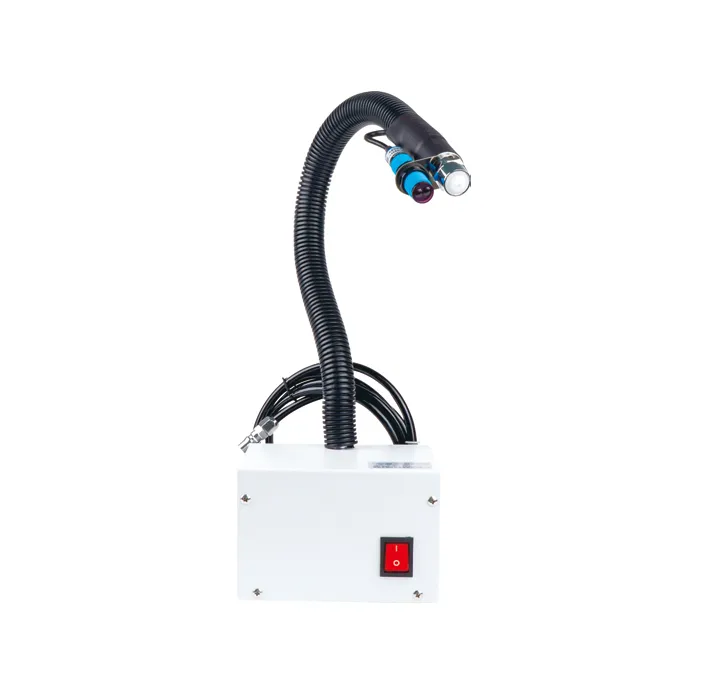

The CHUERA-ST032 is designed around a flexible air-delivery structure rather than a conventional handheld gun. The bendable tube can be positioned according to the shape and location of the workpiece, making it useful when static-sensitive areas are difficult to reach with standard equipment.

The unit uses clean compressed air together with ion generation to reduce electrostatic charge. Its adjustable outlet provides a practical way to focus treatment on a particular area without continuously holding the ionizer by hand.

Flexible Air Tube

The ST032 features a flexible tube with a specified length of 525 mm. The tube can be bent and positioned toward the required treatment area, providing greater freedom when working around machinery, fixtures or irregularly shaped products.

The flexible structure is particularly useful where direct airflow positioning is more important than wide-area coverage.

Focused Ionized Airflow

Ionized airflow is delivered through the end of the flexible tube. The airflow direction can be adjusted according to the position of the target, helping concentrate the static-neutralizing effect where it is needed.

The specified airflow velocity is 3–10 m/s.

Compressed-Air Operation

The ST032 is designed to use clean compressed air. Its specified compressed-air pressure range is 0.3–0.8 MPa.

An 8 mm air connection is specified, with customization available according to customer requirements.

Compact Power Unit

The main unit provides a simple structure with an integrated power switch. The specified power consumption is 26W, while the input voltage can be 220V/50Hz or 110V/60Hz.

This configuration allows the product to be matched with different electrical supply requirements.

Practical Positioning

The flexible tube makes the ST032 suitable for localized treatment around components, work surfaces and equipment. The operator can position the outlet closer to the area requiring static control without having to move the entire unit.

The specified working distance is 0–300 mm.

Ion Balance

The specified ion balance is ≤±35V. A balanced ion output helps reduce existing electrostatic charge without unnecessarily introducing a significant charge onto the treated surface.

Static Decay Performance

According to the supplied test information, the ST032 achieved positive and negative neutralization times of 0.8 seconds and 0.9 seconds respectively at a test distance of 300 mm.

The displayed test conditions include humidity below 60% RH, a test voltage of 1KV–100V and an ambient temperature of 22°C.

Actual results may differ depending on airflow, working distance, humidity, target material and operating conditions.

Technical Specifications

Model: ST-032

Input Voltage: 220V/50Hz or 110V/60Hz

Output Voltage: AC 4.6KV

Power: 26W

Ion Balance: ≤±35V

Operating Temperature: 0–50°C

Noise: <70dB

Working Medium: Clean compressed air

Compressed-Air Pressure: 0.3–0.8MPa

Flexible Tube Length: 525mm

Working Distance: 0–300mm

Static Decay Time: ≤2s

Working Humidity: <70%

Weight: Approx. 3.5kg

Air Connection: φ8mm, customizable

Airflow Velocity: 3–10m/s

Power Cable Length: 1.8m

Suitable Applications

The ST032 can be used for localized static control in:

• Electronics assembly

• ESD-sensitive production lines

• Precision component handling

• Plastic parts processing

• Surface cleaning operations

• Inspection workstations

• Packaging areas

• Equipment maintenance

• Areas with limited installation space

Installation and Use

The flexible tube can be adjusted to face the required treatment area before operation. Clean compressed air should be supplied within the specified pressure range.

For consistent static-neutralization performance, the working distance and airflow should be selected according to the actual product and operating environment.

Regular inspection of the air outlet and flexible tube can help maintain stable airflow during long-term use.

FAQ

What is the CHUERA-ST032 used for?

The ST032 is designed to provide localized ionized airflow for reducing static electricity on components, products and work surfaces.

What makes the ST032 different from a fixed ionizer?

Its flexible tube allows the ionized airflow outlet to be repositioned toward different target areas without moving the main unit.

How long is the flexible tube?

The specified tube length is 525 mm.

What compressed air does the unit use?

The product is specified for clean compressed air.

What is the required air pressure?

The specified compressed-air pressure range is 0.3–0.8 MPa.

What is the airflow velocity?

The specified airflow velocity is 3–10 m/s.

What is the working distance?

The specified working distance is 0–300 mm.

What is the power requirement?

The ST032 uses 26W of power and supports 220V/50Hz or 110V/60Hz input.

Can the air connection be customized?

Yes. The supplied specification lists an φ8mm air connection and indicates that customization is available according to customer requirements.

What is the ion balance specification?

The specified ion balance is ≤±35V.

What is the tested neutralization performance?

At a 300 mm test distance under the supplied test conditions, the displayed results show 0.8 seconds for positive charge and 0.9 seconds for negative charge.
