Compact Static Control for Workstations

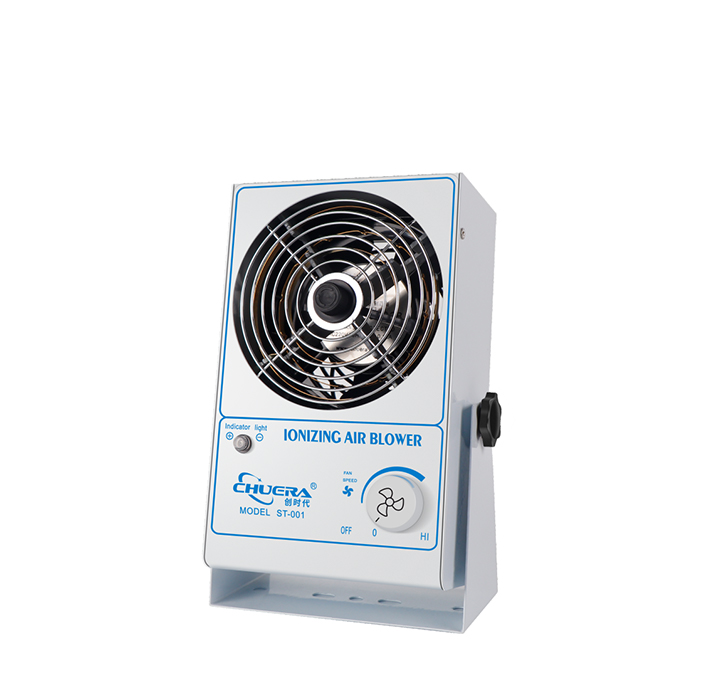

The CHUERA-ST001 is a tabletop ionizing air blower developed for workstations that require practical and localized static control.

Its compact structure takes up limited bench space while providing a directed flow of ionized air toward the working area. The adjustable mounting angle makes it easier to position the airflow according to the location of the products or components being handled.

Rapid Electrostatic Neutralization

The ST001 uses ionized airflow to help neutralize positive and negative electrostatic charges around the work area.

Under the specified test conditions, the static decay time is no more than 2 seconds at a test distance of 300 mm. Actual performance may vary depending on installation distance, airflow direction, environmental conditions and the characteristics of the material being tested.

Adjustable Airflow Direction

The tabletop structure allows the blower to be positioned at a suitable angle for the application.

This is useful when the target area changes between different production tasks. Operators can adjust the unit rather than having to reposition the entire workstation.

Simple Airflow Control

The ST001 provides adjustable fan speed control, allowing users to select an appropriate airflow level for different working conditions.

A lower airflow can be used for tasks where a softer air stream is preferred, while a stronger setting can provide greater air movement across the target area.

Ion Balance Indication

An ion balance indicator is incorporated into the equipment to provide a visual reference during operation.

This gives operators a convenient way to check the general ionization condition without requiring a separate indicator for routine observation.

Optional Heating Function

The ST001 can be equipped with an optional heating device when required.

This provides an additional configuration choice for working environments where heated airflow is useful. The heating function can be selected according to the actual application requirements.

Convenient Ion Needle Cleaning

The product can be equipped with a dedicated ion needle cleaning device and filter structure as an optional configuration.

These accessories are intended to make routine maintenance more convenient and help keep the ionizing components and airflow path in suitable operating condition.

Practical Tabletop Design

The ST001 is designed specifically for bench-top installation.

Its dimensions are approximately 140 × 82 × 240 mm including the bracket, with a weight of approximately 2.8 kg. The compact footprint makes it suitable for individual workstations where floor or overhead installation is not practical.

Electrical and Operating Specifications

The rated input supports 220V/50Hz or 110V/60Hz.

The rated power is 30W, while the ion output voltage is specified at AC 5.6kV.

The airflow range is approximately 45–110 CFM.

Under the supplied specifications, ozone concentration is ≤0.03 ppm at a test distance of 150 mm.

The specified ion balance is within ±10V at a 300 mm test distance.

The operating humidity is specified at less than 75%, with a noise level of approximately 45–55 dB.

Suitable Working Environments

The ST001 is intended for localized static control and can be used in areas such as:

• Electronics assembly workstations

• PCB and SMT production

• Precision component handling

• Semiconductor-related operations

• Optical assembly

• Inspection and testing benches

• Laboratory workstations

• ESD-sensitive repair areas

• Plastic component handling

• General static-controlled production areas

Maintenance Considerations

For consistent operation, the fan area and ionizing components should be inspected periodically.

Dust accumulation can affect airflow and ionization performance, so cleaning should be carried out according to the actual working environment and operating frequency.

If the optional filter and ion needle cleaning accessories are used, they should also be checked as part of the normal maintenance routine.

Product Highlights

• Tabletop installation for localized ESD control

• Compact structure for limited workbench space

• Adjustable airflow direction

• Airflow range of approximately 45–110 CFM

• Ion balance indication

• Static decay time of ≤2s under specified test conditions

• Optional heating configuration

• Optional ion needle cleaning and filter accessories

• AC 5.6kV ion output

• Supports 220V/50Hz or 110V/60Hz input

• Grounding protection

• Suitable for electronics and precision workstations

FAQ

What is the CHUERA-ST001 designed for?

The ST001 is designed to reduce static electricity in localized workstation areas by supplying ionized airflow.

Is the ST001 suitable for tabletop installation?

Yes. It is specifically designed as a tabletop ionizing air blower and can be positioned directly at an ESD-sensitive workstation.

Can the airflow direction be adjusted?

Yes. The unit has an adjustable mounting structure that allows the airflow direction to be positioned according to the working area.

What is the airflow range?

The specified airflow range is approximately 45–110 CFM.

What is the rated power?

The ST001 has a rated power of 30W.

What input voltage does it support?

The supplied specification indicates compatibility with 220V/50Hz or 110V/60Hz power input.

Does the product provide an ion balance indication?

Yes. An indicator is provided to give users a visual reference for the ionization condition.

Is a heating function available?

Yes. A heating device can be added as an optional configuration when the application requires it.

Are cleaning accessories available?

Yes. A dedicated ion needle cleaning device and filter can be selected as optional accessories.

What is the specified static decay time?

The specified static decay time is no more than 2 seconds at a 300 mm test distance under the stated test conditions.
