Designed for Wider ESD Coverage

The CHUERA 2200 Series is a high-frequency ion blower family developed for production areas where static electricity needs to be controlled over a relatively broad working zone.

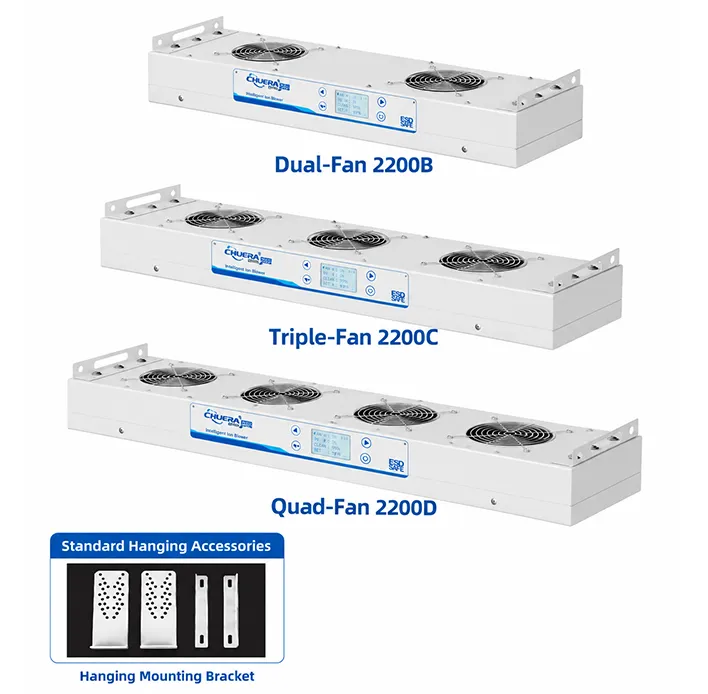

Three configurations are available: CHUERA-2200B with two fans, CHUERA-2200C with three fans, and CHUERA-2200D with four fans. The different layouts allow users to select a suitable configuration according to the width of the workstation or production area.

Three Configurations for Different Work Areas

The 2200B provides a compact dual-fan arrangement with an effective range of approximately 400 × 600 mm.

The 2200C uses three fans and extends the effective working area to approximately 400 × 800 mm.

The 2200D features four fans and is designed for an effective range of approximately 400 × 1000 mm.

This series-based configuration makes it easier to match the ion blower to different workstation sizes without changing the basic operating concept.

High-Frequency Static Neutralization

The equipment uses high-frequency ionization to generate ions for neutralizing electrostatic charges.

The ionized airflow is directed toward the working area, helping reduce static buildup on products, components and surrounding surfaces. Under the stated test conditions, the specified residual voltage can be controlled within ±10V at a test distance of 300 mm.

Actual results depend on installation distance, airflow conditions, environmental factors and the characteristics of the material being tested.

Intelligent Operating Control

The 2200 Series incorporates an electronic control interface for managing operating parameters.

Users can configure cleaning-related settings and view equipment status through the integrated display. This provides a straightforward way to check operating conditions without relying entirely on external monitoring equipment.

Automatic Cleaning Function

An automatic cleaning function is provided for routine ionizing system maintenance.

The cleaning interval can be configured within the available setting range, helping reduce the need for frequent manual intervention. This feature is particularly useful in production environments where equipment operates for extended periods.

Real-Time Status Display

The built-in display provides operating information for daily inspection.

Depending on the configured functions, users can check information related to fan operation, high-voltage status, cleaning settings and other equipment conditions. This makes basic equipment checks easier for production personnel.

Ion Balance Monitoring

Ion balance is an important factor in static control.

The system monitors the ion balance condition during operation and provides a reference for identifying abnormal conditions. This helps operators notice changes in the ionization system during routine use.

Practical Maintenance Structure

The front fan guard adopts a snap-on design, allowing the cover to be removed more conveniently for cleaning.

The product also uses a replaceable plug-in ion needle structure. Together with the removable front and rear fan components, this design simplifies access to parts that may require periodic cleaning or maintenance.

Adjustable Airflow

The airflow can be adjusted according to operating requirements.

Different products and workstations may require different airflow levels. Adjustable fan operation allows the equipment to be configured according to the working distance and production conditions rather than using a single fixed setting.

Safety-Oriented Construction

The ion blower includes grounding protection as part of its electrical safety design.

The enclosure and mounting structure are intended for fixed installation above or around the working area. The supplied hanging mounting brackets provide a practical option for positioning the unit in an ESD-controlled workspace.

Model Information

CHUERA-2200B

Dual-fan configuration with an effective range of approximately 400 × 600 mm. Rated power is 20W, with an air volume of approximately 2.56–4.07 m³/min per fan.

CHUERA-2200C

Triple-fan configuration with an effective range of approximately 400 × 800 mm. Rated power is 30W, with an air volume of approximately 2.56–4.07 m³/min per fan.

CHUERA-2200D

Four-fan configuration with an effective range of approximately 400 × 1000 mm. Rated power is 40W, with an air volume of approximately 2.56–4.07 m³/min per fan.

Technical Details

The 2200 Series operates from 220V AC at 50Hz, with 110V/60Hz also indicated in the supplied specifications.

The operating temperature range is 0°C to 60°C, with working humidity specified at no more than 90%.

Noise is listed at approximately 40–55 dB.

The ozone concentration is specified as no more than 0.01 ppm for the 2200B, 0.02 ppm for the 2200C and 0.03 ppm for the 2200D.

The three models have different enclosure dimensions and weights according to their fan configuration. The supplied specifications list approximately 1.5 kg for the 2200B, 3.6 kg for the 2200C and 5.2 kg for the 2200D.

Recommended Applications

The CHUERA 2200 Series can be used in areas where electrostatic control is required, including:

• Electronics assembly workstations

• PCB and SMT production areas

• Semiconductor handling

• Precision component assembly

• Inspection and testing stations

• Plastic component processing

• ESD-controlled production lines

• Automated manufacturing areas

• Precision equipment work areas

• Static-sensitive material handling

Installation Considerations

The ion blower should be positioned so that the ionized airflow can effectively reach the intended static-sensitive area.

Installation distance, airflow direction and surrounding equipment can influence static neutralization performance. For production applications, the final installation position should be determined through actual testing under the site's operating conditions.

The hanging mounting bracket supplied with the equipment can be used for fixed installation where suitable.

Why Choose the 2200 Series

The main difference within the series is the fan configuration and corresponding coverage area. This allows the same product family to address smaller workstations as well as wider production areas.

The combination of high-frequency ionization, automatic cleaning, adjustable airflow, status display and ion balance monitoring provides operators with practical functions for everyday ESD control and maintenance.

FAQ

What is the CHUERA 2200 Series used for?

It is designed to neutralize static electricity in ESD-sensitive production and working environments.

What is the difference between the 2200B, 2200C and 2200D?

The main difference is the number of fans and the corresponding effective working range. The 2200B has two fans, the 2200C has three, and the 2200D has four.

What is the effective range of the 2200B?

The specified effective range of the 2200B is approximately 400 × 600 mm.

What is the effective range of the 2200C?

The specified effective range of the 2200C is approximately 400 × 800 mm.

What is the effective range of the 2200D?

The specified effective range of the 2200D is approximately 400 × 1000 mm.

Does the ion blower have automatic cleaning?

Yes. The 2200 Series supports automatic cleaning settings for the ionizing system.

Can the airflow be adjusted?

Yes. The fan operation can be adjusted to suit different working conditions and installation requirements.

How is the equipment maintained?

The snap-on fan cover allows easier access for cleaning, while the plug-in ion needle structure simplifies maintenance of the ionizing components.

Does the unit monitor ion balance?

Yes. The system provides ion balance monitoring to help users identify changes in the operating condition.

Can the 2200 Series be mounted above a workstation?

Yes. The supplied hanging mounting bracket is intended for fixed installation and can be used where the installation environment is suitable.
