Product Overview

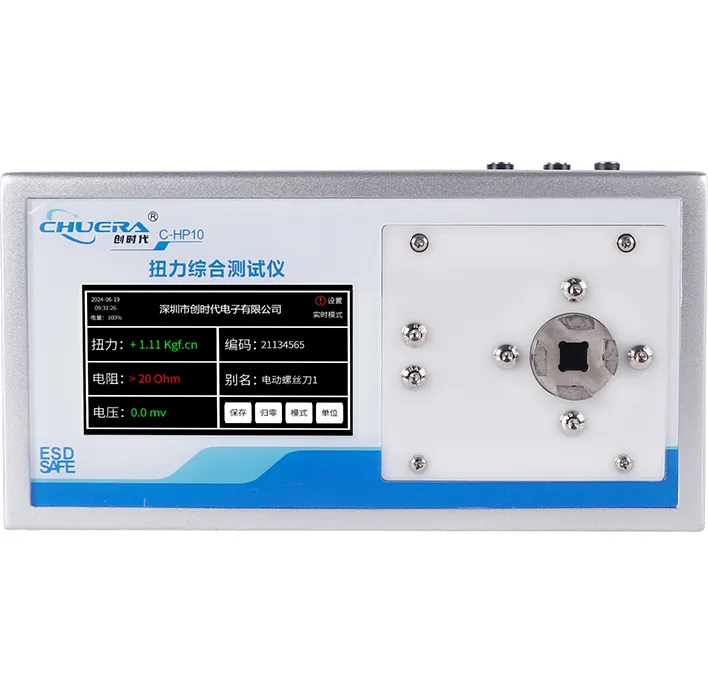

CHUERA-HP10 is a multifunctional tester developed for routine inspection of electric screwdrivers and similar powered hand tools. It combines mechanical torque measurement with electrical safety checks, allowing several inspection tasks to be completed through one testing platform.

The unit is designed for production lines, tool management areas, quality inspection departments, and workshops where powered tools need regular verification.

Torque and Electrical Safety Testing

The HP10 combines torque measurement with grounding resistance and leakage voltage testing. This allows operators to check both the working performance and electrical condition of an electric screwdriver during the same inspection process.

The peak torque measurement ranges cover 0.05–9.00 lbf·in, 0.05–10.00 kgf·cm, and 0.005–1.000 N·m.

Real-Time and Peak-Value Readings

The tester supports real-time sampling as well as peak-value sampling. This provides two ways to review torque behavior during operation.

Real-time readings can be used for observing the current measurement, while peak-value records help capture the highest detected torque during a test.

Touchscreen Interface

A 4.3-inch touchscreen provides access to the main testing functions and measurement information. Operators can view results directly on the instrument and adjust relevant settings through the display.

The touchscreen layout also makes it easier to identify measurement status during repetitive inspection work.

Tool Identification with Barcode and QR Codes

CHUERA-HP10 supports barcode and QR code scanning for test object identification. An electric screwdriver can be associated with its identification code before testing, helping organize inspection records when multiple tools are managed within the same production environment.

This can be useful for tool traceability and routine maintenance records.

Network Communication

The tester supports Wi-Fi and Ethernet communication. After the communication settings are configured, test information can be exchanged with a computer or connected management system.

This provides a practical option for factories that want to move from isolated manual testing toward centralized tool inspection records.

Internal Data Storage

Test results can be stored on the device for later review. The tester also supports data handling through its connected communication functions, helping reduce the need for handwritten records.

A removable storage interface is available for software update operations according to the supplied product information.

Long-Use Battery Design

The HP10 uses a built-in 7.4V 5000mAh battery. The specified battery life is more than 1,000 charge cycles, and the unit can operate continuously for up to 12 hours after a full charge under the stated conditions.

This makes the tester suitable for extended inspection sessions without requiring constant external power.

Automatic Abnormal-Result Indication

When a measured value exceeds the configured limit, the display changes to red to provide a clear visual warning. This allows operators to identify results that require further inspection without relying solely on numerical readings.

Product Specifications

Model: CHUERA-HP10

Input Voltage: DC12V

Display: 4.3-inch Touchscreen

Grounding Resistance Measurement: 0–20Ω

Leakage Voltage Measurement: 0–500mV

Measurement Accuracy: Less Than ±0.5%

Measurement Method: Real-Time Sampling and Peak-Value Sampling

Scanning Type: Barcode / QR Code

Communication: Wi-Fi / Ethernet

Product Weight: 2.5 kg

Product Dimensions: 195 × 95 × 45 mm

Adapter: 12V 1A

Built-in Battery: 7.4V 5000mAh

Battery Life: More Than 1,000 Charge Cycles

Continuous Operating Time: Up to 12 Hours After Full Charge

Operating Environment: -10°C to 40°C, 30%–80% RH

Peak Torque Range: 0.05–9.00 lbf·in

Peak Torque Range: 0.05–10.00 kgf·cm

Peak Torque Range: 0.005–1.000 N·m

Application Areas

CHUERA-HP10 can be used in electronics assembly, appliance manufacturing, precision assembly, tool maintenance, production-line quality control, and ESD-related inspection environments.

It is particularly suitable for facilities that need to verify electric screwdriver torque while also checking grounding resistance and leakage voltage.

Built for Connected Tool Management

The combination of torque measurement, electrical safety testing, identification scanning, local storage, and network communication allows CHUERA-HP10 to fit into a structured tool inspection process.

Operators can identify the tool, perform the required measurements, review real-time or peak values, and retain the resulting data for subsequent quality management.

FAQ

What can CHUERA-HP10 test?

It is designed to test electric screwdriver torque, grounding resistance, and leakage voltage.

What torque units are supported?

The specified torque ranges are provided in lbf·in, kgf·cm, and N·m.

What is the maximum torque range?

The listed peak measurement ranges reach 9.00 lbf·in, 10.00 kgf·cm, or 1.000 N·m, depending on the selected unit.

Does the tester provide peak torque measurement?

Yes. It supports both real-time sampling and peak-value sampling.

What electrical parameters can be checked?

The HP10 measures grounding resistance from 0–20Ω and leakage voltage from 0–500mV.

Does it use a touchscreen?

Yes. The tester features a 4.3-inch touchscreen.

Can individual tools be identified?

Yes. Barcode and QR code scanning are supported for associating measurements with specific test objects.

Does the HP10 support network communication?

Yes. Wi-Fi and Ethernet connectivity are available.

How long can the tester operate after charging?

The supplied specifications state that it can operate continuously for up to 12 hours after a full charge.

What battery is installed?

The tester uses a built-in 7.4V 5000mAh battery.

What happens when a measurement exceeds the preset limit?

The display changes to red to provide a visual warning of an out-of-limit measurement.
