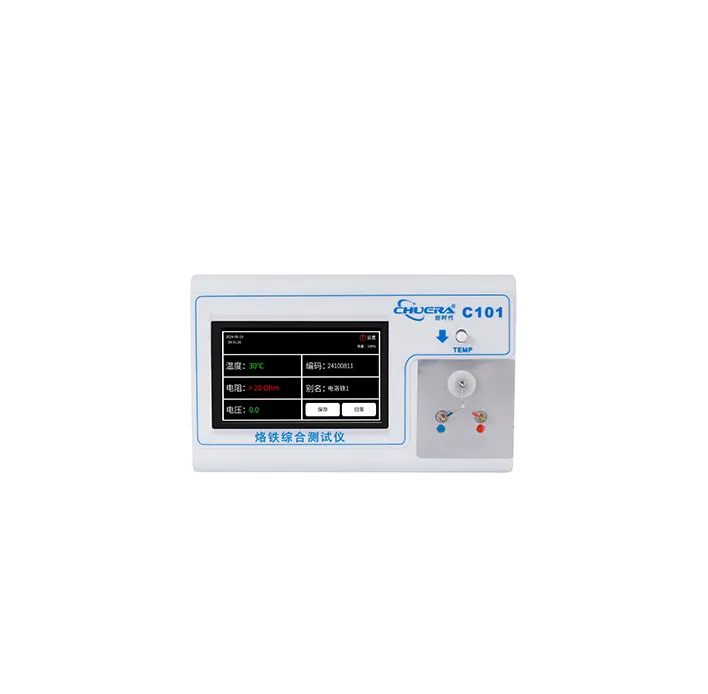

Product Overview

CHUERA-C101 is a compact testing instrument developed for routine inspection of soldering irons and related electrical safety conditions. It brings temperature, leakage voltage, and grounding resistance measurements together in one unit, allowing operators to check several key parameters without changing between different testers.

The instrument is suitable for production lines, ESD-controlled work areas, repair stations, and quality inspection environments where soldering tools require regular verification.

Three-Parameter Inspection

The C101 is designed to check three important soldering iron conditions: tip temperature, leakage voltage, and grounding resistance.

The temperature measurement range extends from room temperature to 600°C with a stated accuracy of ±3°C. Leakage voltage can be measured from 0 to 500 mV with ±5% accuracy, while grounding resistance measurement covers 0 to 20Ω with ±5% accuracy.

Touchscreen-Based Operation

A 4.3-inch touchscreen provides the main operating interface. Measurement values can be viewed directly on the display, making it easier for operators to identify abnormal readings during inspection.

The screen can also present test information and operating options in a centralized interface, reducing the need for additional external instruments.

Soldering Iron Temperature Monitoring

The temperature testing function is intended for checking soldering iron tip temperature within the specified measurement range of room temperature to 600°C.

With temperature accuracy specified at ±3°C, the C101 can be used for routine verification of Soldering equipment before or during production activities.

Leakage Voltage and Grounding Resistance Checks

Electrical safety can be reviewed through the leakage voltage and grounding resistance functions. The leakage voltage range is 0–500 mV, while the grounding resistance range is 0–20Ω.

These measurements provide operators with direct readings for checking whether the soldering iron is operating within the configured inspection requirements.

Test Object Identification

CHUERA-C101 supports barcode and QR code scanning. Test objects can be identified before measurement, allowing inspection records to be associated with individual tools or designated identification numbers.

This is useful in workshops where a large number of soldering irons need to be checked and tracked separately.

Network Communication

The tester supports both Wi-Fi and Ethernet communication. When connected to a compatible management system, measurement information can be transferred for centralized data handling.

This makes the C101 suitable for inspection environments that require more than stand-alone manual testing.

Automatic Alarm Indication

The device provides an alarm function when a measured value exceeds the preset limit. The display changes to red when an abnormal reading is detected, giving the operator a clear visual indication that the result requires attention.

Compact Equipment Design

With a body weight of approximately 1 kg and dimensions of 195 × 95 × 45 mm, the C101 occupies relatively little workspace. Its compact construction allows it to be placed near soldering stations without taking up excessive bench space.

Product Specifications

Model: CHUERA-C101

Charging Voltage: DC12V

Temperature Measurement Range: Room Temperature to 600°C

Temperature Accuracy: ±3°C

Leakage Voltage Measurement Range: 0–500 mV

Leakage Voltage Accuracy: ±5%

Grounding Resistance Measurement Range: 0–20Ω

Grounding Resistance Accuracy: ±5%

Display: 4.3-inch Touchscreen

Scanning Type: Barcode / QR Code

Communication: Wi-Fi / Ethernet

Weight: Approximately 1 kg

Dimensions: 195 × 95 × 45 mm

Alarm Function: Display changes to red when the measured value exceeds the preset limit

Application Areas

CHUERA-C101 can be used in electronics assembly workshops, soldering stations, ESD-controlled production areas, repair facilities, laboratories, and quality inspection departments.

It is suitable for routine verification of soldering irons where temperature, leakage voltage, and grounding resistance need to be checked as part of equipment inspection procedures.

Practical Inspection Workflow

The C101 can be incorporated into a simple inspection process. An operator can first identify the soldering iron through its barcode or QR code, perform the required measurements, review the results on the touchscreen, and retain the inspection information for subsequent management.

With Wi-Fi or Ethernet communication available, the tester can also fit into a connected inspection workflow where measurement records are handled through a network system.

FAQ

What can the CHUERA-C101 test?

It can measure soldering iron tip temperature, leakage voltage, and grounding resistance.

What is the maximum temperature measurement range?

The temperature measurement range extends from room temperature to 600°C.

What is the temperature accuracy?

The specified temperature accuracy is ±3°C.

What is the leakage voltage measurement range?

The leakage voltage range is 0–500 mV with a stated accuracy of ±5%.

What grounding resistance range does it support?

The grounding resistance measurement range is 0–20Ω with ±5% accuracy.

Does the C101 use a touchscreen?

Yes. It is equipped with a 4.3-inch touchscreen.

Can test objects be identified by barcode or QR code?

Yes. The instrument supports barcode and QR code scanning for test object identification.

Does the tester support network connection?

Yes. Both Wi-Fi and Ethernet communication are supported.

How does the alarm function work?

When a measured value exceeds its preset limit, the display changes to red to provide a visual abnormal-result indication.

What are the dimensions of the C101?

The specified product dimensions are 195 × 95 × 45 mm.
