Reliable Monitoring for ESD Workstations
The CHUERA-492 series is developed for workstations where operator grounding needs to remain under continuous supervision. The monitor checks the wrist strap connection during operation and provides a clear indication when the monitored resistance moves beyond the preset range.
This approach helps operators identify grounding issues during production instead of relying only on periodic manual checks.
Single-Channel and Dual-Channel Options

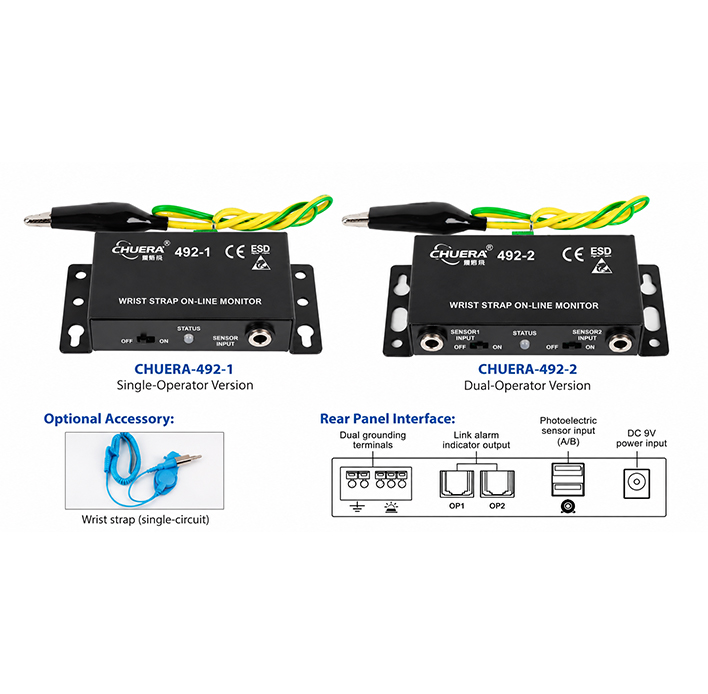

The series includes two configurations for different workstation requirements.

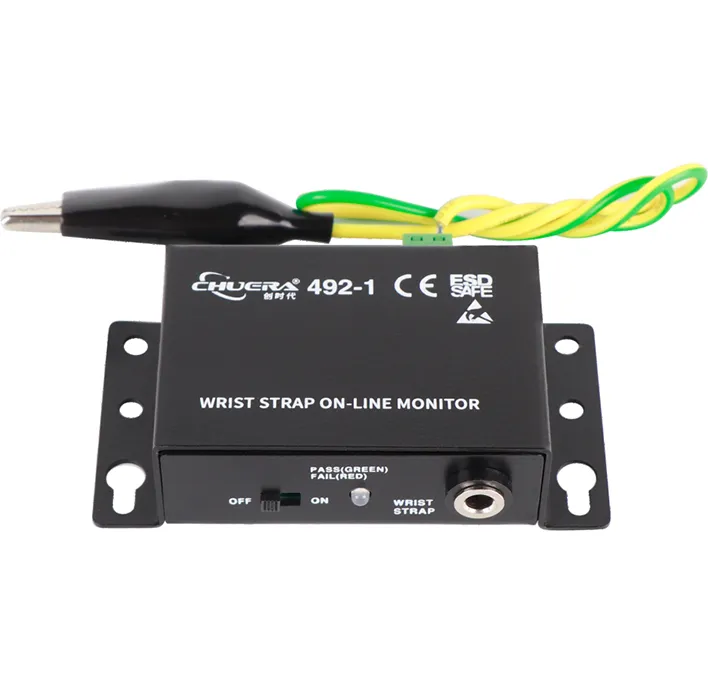

The CHUERA-492-1 is intended for one operator and provides a compact solution for individual ESD benches, inspection stations and dedicated assembly areas.

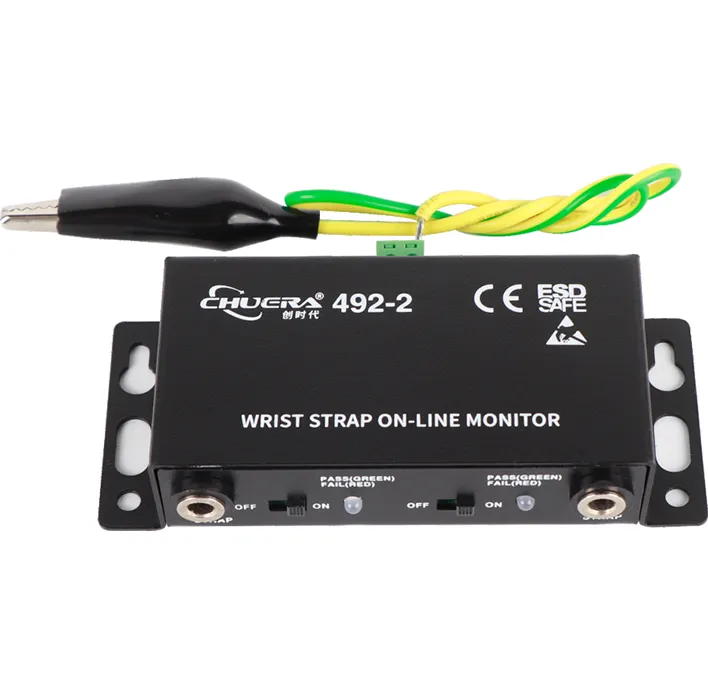

The CHUERA-492-2 is designed for two operators and provides two monitoring channels from one unit. It can be used on shared workbenches and production stations where two operators work within the same controlled area.
Adjustable Resistance Monitoring
The wrist strap monitoring resistance is specified from 750KΩ to 30MΩ, with the factory setting configured according to the application.
The adjustable monitoring range allows the equipment to accommodate different ESD workstation requirements while maintaining a consistent grounding inspection process.
Easy-to-Read Operating Status
The monitor uses indicator lights to show the current grounding condition. The specified status indications include green for OK, red for high resistance and blue for low resistance.
The simple visual arrangement allows operators and supervisors to identify an abnormal condition without navigating through complicated menus.
Compact Workstation Installation
The enclosure is designed for fixed installation near the operator's working position. Mounting flanges on both sides make it convenient to secure the monitor to an ESD workstation or related equipment.
Its compact form helps keep the monitoring device close to the work area without taking up unnecessary bench space.
External Alarm and Sensor Options
The CHUERA-492 series provides interfaces for additional workstation functions. External alarm indication can be connected when a more noticeable warning is required.
A photoelectric sensor can also be selected for applications that need operator presence detection or additional workstation control.
Grounding Connection Arrangement
The monitor is designed to work with ESD wrist straps and grounding connections used in controlled work environments. The available interface arrangement supports practical connection between the operator, wrist strap and workstation grounding system.
A suitable wrist strap can be selected according to the required workstation configuration.
Model Specifications
CHUERA-492-1
Monitoring capacity: Single operator
Maximum power: 3W
Input voltage: 9V DC
Wrist strap monitoring resistance: 750KΩ–30MΩ
Operating environment: Non-condensing environment, -10°C to 50°C
Status indicators: OK – Green, High – Red, Low – Blue
Dimensions: 60 × 45 × 20 mm
Net weight: Approximately 0.1 kg
CHUERA-492-2
Monitoring capacity: Two operators
Maximum power: 5W
Input voltage: 9V DC
Wrist strap monitoring resistance: 750KΩ–30MΩ
Operating environment: Non-condensing environment, -10°C to 50°C
Status indicators: OK – Green, High – Red, Low – Blue
Dimensions: 80 × 45 × 20 mm
Net weight: Approximately 0.2 kg
Where the CHUERA-492 Series Can Be Used
The monitors are suitable for electronics assembly, PCB production, component inspection, repair benches, laboratories, testing stations and other areas where operator grounding is part of the ESD control process.
For individual workstations, the CHUERA-492-1 offers single-operator monitoring. For shared stations, the CHUERA-492-2 provides two-channel monitoring from one device.
Optional Wrist Strap
A single-circuit ESD wrist strap can be used with the monitor as an optional accessory. The strap provides the operator connection required for continuous grounding supervision.
Technical Data
Model: CHUERA-492-1 / CHUERA-492-2
Power supply: 9V DC
Monitoring capacity: 1 operator / 2 operators
Monitoring resistance: 750KΩ–30MΩ
Operating temperature: -10°C to 50°C
Operating environment: Non-condensing
Status indication: Green / Red / Blue
Maximum power: 3W for CHUERA-492-1, 5W for CHUERA-492-2
Dimensions: 60 × 45 × 20 mm for CHUERA-492-1; 80 × 45 × 20 mm for CHUERA-492-2
Weight: Approximately 0.1 kg for CHUERA-492-1; 0.2 kg for CHUERA-492-2
Frequently Asked Questions
What is the purpose of the CHUERA-492 series?
It continuously monitors the grounding condition of operators using ESD wrist straps and provides status indication when the monitored condition is abnormal.
What is the difference between the two models?
CHUERA-492-1 is designed for one operator, while CHUERA-492-2 provides two operator monitoring channels.
What is the wrist strap monitoring range?
The specified monitoring resistance range is 750KΩ to 30MΩ.
What power supply is required?
Both models use a 9V DC power supply.
Can the monitor be installed on an ESD workstation?
Yes. The enclosure is designed for fixed installation and includes mounting points for workstation integration.
Are external alarm functions available?
The product provides an interface for external alarm indication, allowing it to be integrated with additional workstation warning equipment.
Is a wrist strap included?
The wrist strap can be selected as an optional accessory according to the required configuration.
