Continuous Grounding Supervision for ESD Workstations
The CHUERA-495 series is designed to monitor the grounding condition of operators wearing ESD wrist straps. The system continuously checks the connection between the wrist strap and grounding circuit and provides an alert when the monitored resistance moves outside the configured range.
Two versions are available. CHUERA-495-1 is intended for single-operator monitoring, while CHUERA-495-2 provides two monitoring channels for shared workstations or areas where two operators need to be supervised at the same time.
Designed for Practical ESD Control
The monitor is built around a compact enclosure that can be installed close to an ESD workstation without taking up much space. Its monitoring resistance can be set within the 750KΩ to 30MΩ range according to the required working conditions.
The front indicators make the operating status easy to identify. Green indicates an OK condition, while red and blue indicators are used for different monitoring or alarm states.
Single and Dual Operator Configurations

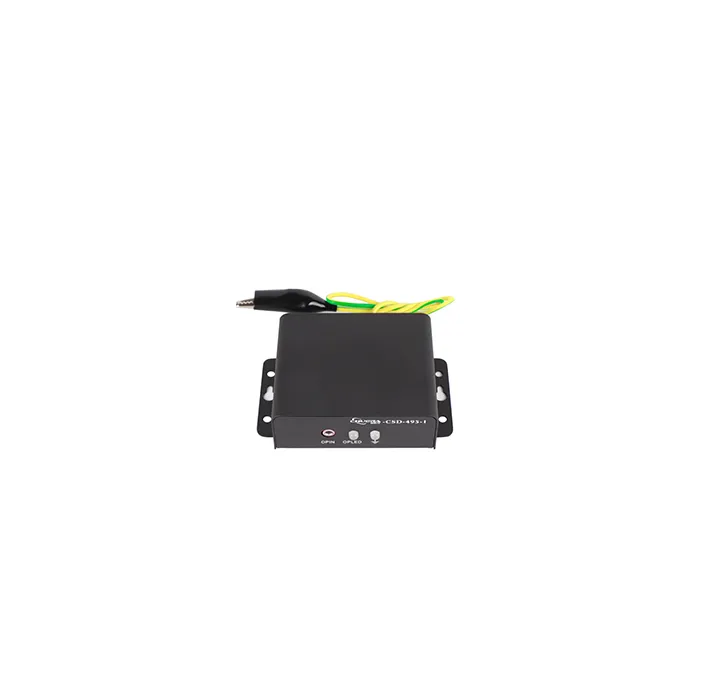

CHUERA-495-1 provides one monitoring channel and is suitable for individual workbenches, inspection stations and single-user production areas.

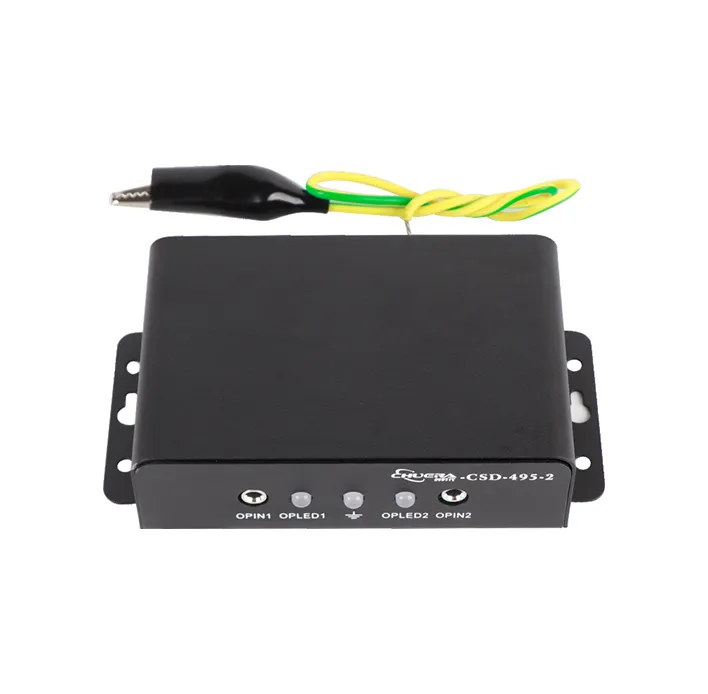

CHUERA-495-2 provides two monitoring channels and can monitor two wrist strap connections simultaneously. It is suitable for shared benches, production stations and other work areas where two operators work side by side.
Stable Monitoring with Alarm Support
The device monitors wrist strap resistance continuously rather than relying on occasional manual checks. When an abnormal grounding condition is detected, the corresponding indicator provides a visual warning. External alarm and photoelectric sensor interfaces are also available for configurations requiring additional workstation control.
The grounding connection is designed for reliable operation, helping operators identify a wrist strap or grounding connection issue during daily production.
Flexible Installation and Connection

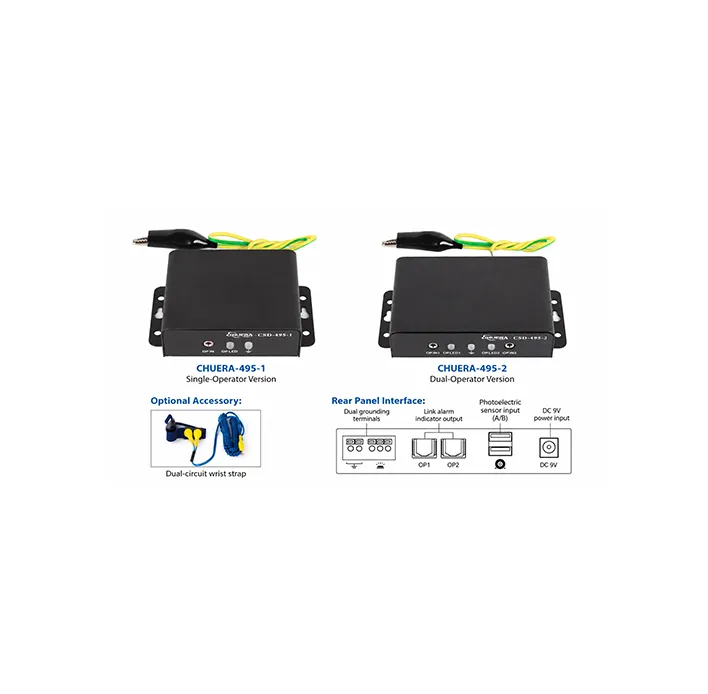

The compact design allows the monitor to be positioned near the operator's working area. The rear interface provides grounding connections, wrist strap monitoring ports and a DC power input. Optional accessories can be selected according to the workstation configuration.
A photoelectric sensor can also be used as an optional component for applications that require operator presence detection or related workstation management functions.
Typical Applications
The CHUERA-495 series can be used in:
Electronics assembly workstations
ESD production lines
Electronic component inspection areas
PCB assembly and repair stations
Laboratories and R&D workbenches
Quality inspection stations
Static-sensitive component handling areas
Model Comparison
CHUERA-495-1
Monitoring capacity: Single operator
Maximum power: 3W
Input voltage: 9V DC
Dimensions: 67 × 67 × 31 mm
Net weight: Approximately 0.1 kg
CHUERA-495-2
Monitoring capacity: Two operators
Maximum power: 5W
Input voltage: 9V DC
Dimensions: 100 × 67 × 31 mm
Net weight: Approximately 0.2 kg
Technical Specifications
Model: CHUERA-495-1 / CHUERA-495-2
Monitoring resistance: 750KΩ–30MΩ, factory preset
Operating environment: Non-condensing environment, -10°C to 50°C
Status indicators: OK – Green, High – Red, Low – Blue
Power supply: 9V DC
CHUERA-495-1 power consumption: 3W
CHUERA-495-2 power consumption: 5W
CHUERA-495-1 dimensions: 67 × 67 × 31 mm
CHUERA-495-2 dimensions: 100 × 67 × 31 mm
CHUERA-495-1 net weight: Approximately 0.1 kg
CHUERA-495-2 net weight: Approximately 0.2 kg
Optional Accessories
Depending on the workstation setup, the CHUERA-495 series can be configured with a dual-circuit wrist strap, wrist strap adapter and optional photoelectric sensor.
Why Choose the CHUERA-495 Series
The CHUERA-495 series combines compact installation, continuous grounding supervision and clear status indication in a practical ESD workstation monitoring solution. The choice between the single-channel CHUERA-495-1 and dual-channel CHUERA-495-2 allows the monitoring setup to match different operator and workstation requirements.
Frequently Asked Questions
What is the difference between CHUERA-495-1 and CHUERA-495-2?
CHUERA-495-1 is designed for one operator, while CHUERA-495-2 provides two monitoring channels for two operators.
What resistance range can the monitor detect?
The wrist strap monitoring resistance is specified at 750KΩ–30MΩ, with the factory setting determined according to the product configuration.
What power supply does the monitor use?
Both models use a 9V DC power supply.
Can the monitor provide an alarm when grounding is abnormal?
Yes. The monitor provides status indication for abnormal conditions and can also support external alarm functions depending on the configuration.
Where can the CHUERA-495 series be installed?
It is suitable for ESD workbenches, electronics assembly lines, inspection stations, laboratories, repair areas and other static-sensitive work environments.
Can additional accessories be used with the monitor?
Yes. Optional accessories include dual-circuit wrist straps, wrist strap adapters and photoelectric sensors, depending on the required setup.
