Product Overview

The ESD Wrist Strap Series is designed to provide a practical grounding connection for operators working with electrostatic-sensitive components and equipment. The range covers several wrist strap constructions to suit different workstation layouts, grounding requirements, and operator preferences.

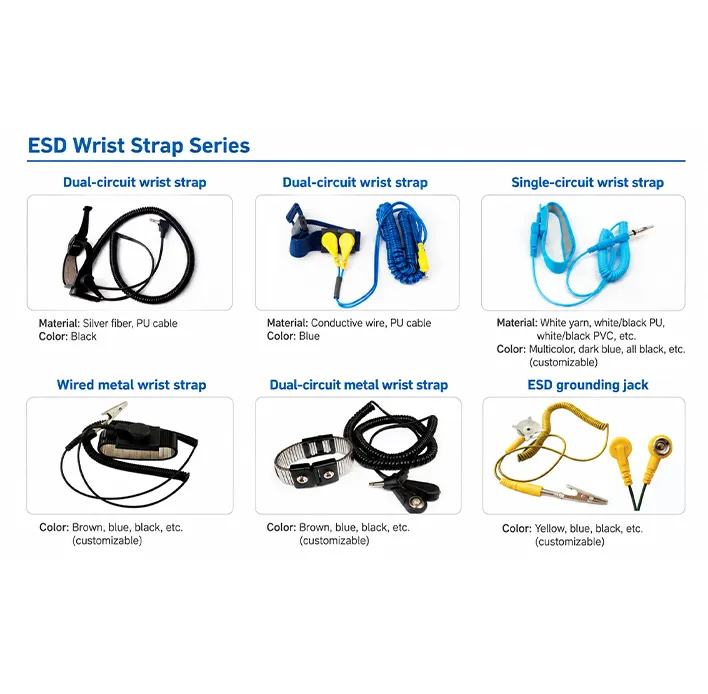

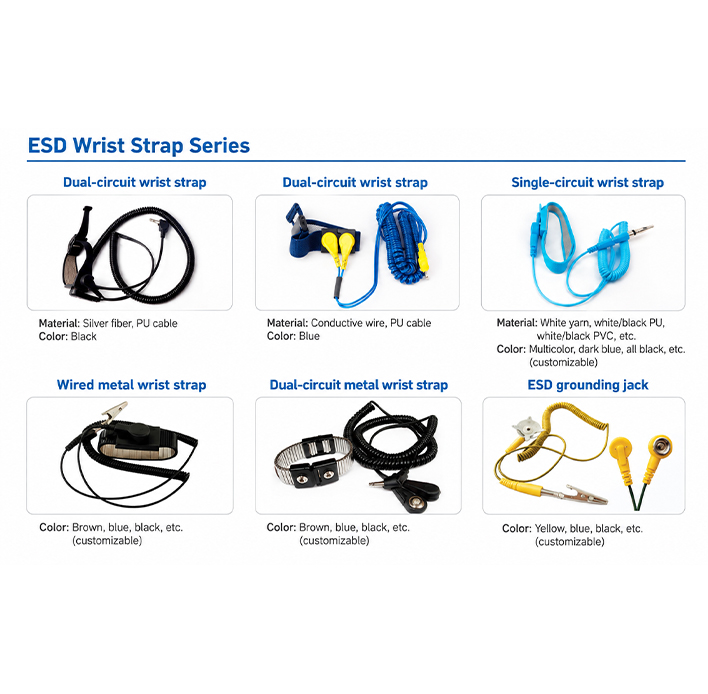

Available options include single-circuit wrist straps, dual-circuit wrist straps, wired metal wrist straps, dual-circuit metal wrist straps, and matching grounding accessories. This allows the same product range to support different ESD protection setups across electronics production and maintenance environments.

Available Wrist Strap Designs

The series includes multiple configurations for different working conditions.

Dual-circuit wrist straps are suitable for applications where continuous monitoring and dual-path grounding are required. Single-circuit versions provide a straightforward grounding connection for standard ESD workstations.

For users who prefer a metal contact surface, wired metal and dual-circuit metal wrist straps are also available. These designs combine a conductive metal band with a grounding lead for connection to an ESD grounding system.

Materials and Color Options

Different constructions are available according to the model. Materials may include conductive fiber, conductive wire, silver fiber, PU cable, PVC components, and metal wristband structures.

Color options vary by design and can include black, blue, yellow, brown, white, and other combinations. Custom color configurations can also be discussed according to project requirements.

Grounding Connection

The wrist straps are intended to connect the operator to an appropriate ESD grounding point through the supplied or compatible grounding lead. Depending on the configuration, connection options can include common grounding terminals, monitoring systems, or dedicated ESD grounding accessories.

A suitable grounding arrangement should be selected according to the requirements of the workstation and ESD protection system.

Suitable Working Environments

These wrist straps can be used in electronics manufacturing areas, PCB assembly lines, component inspection stations, electronic repair benches, laboratories, testing areas, and other workplaces where personnel grounding is required.

They can be incorporated into individual workstations or used together with ESD monitoring equipment and grounding systems.

Product Selection

The series provides several combinations rather than relying on one fixed wrist strap design. Selection can be based on the required circuit configuration, wristband material, grounding method, cable construction, and workstation setup.

For applications requiring additional grounding or monitoring components, compatible accessories can be selected to build a more complete ESD protection arrangement.

Main Features

• Single-circuit and dual-circuit configurations
• Conductive fabric and metal wristband options
• Different grounding lead designs
• Multiple color choices
• Suitable for ESD workstation integration
• Options for use with wrist strap monitoring systems
• Grounding accessories available for different setups
• Custom configurations can be discussed for specific requirements

Typical Applications

• Electronics assembly
• PCB production and testing
• Electronic component handling
• ESD repair workstations
• Laboratory testing areas
• Semiconductor-related handling areas
• Electronic equipment maintenance
• Static-sensitive production environments

Frequently Asked Questions

What is the purpose of an ESD wrist strap?

An ESD wrist strap provides a conductive path between the operator and an appropriate grounding point, helping control electrostatic charge during handling of static-sensitive components.

What is the difference between a single-circuit and dual-circuit wrist strap?

A single-circuit design uses one conductive grounding path, while a dual-circuit design provides two monitoring or grounding paths depending on the corresponding ESD system.

Are metal wrist straps available?

Yes. The series includes wired metal wrist straps and dual-circuit metal wrist strap configurations.

Can the wrist strap color be customized?

Color options depend on the selected construction. Custom colors can be discussed for projects requiring specific appearance or identification requirements.

Can these wrist straps work with ESD monitoring equipment?

Selected models can be integrated with compatible ESD wrist strap monitoring systems. The connection configuration should be matched to the monitoring equipment being used.
