Integrated Personnel ESD Testing

CHUERA-4126A Human Body Electrostatic Comprehensive Tester is designed for personnel electrostatic verification in ESD-controlled workplaces. It combines wrist strap and ESD footwear testing into one floor-standing unit, giving operators a convenient testing point before entering sensitive production areas.

The equipment integrates the testing platform, control system, display interface, and data management functions into a single setup. Its practical structure makes it suitable for electronics factories, laboratories, assembly workshops, semiconductor facilities, and other areas where personnel grounding checks are required.

Wrist Strap and ESD Footwear Testing

The CHUERA-4126A provides two commonly required personnel grounding checks in one device. It supports wrist strap resistance testing from 0–2000 MΩ and footwear testing within the specified 0–2000 MΩ range.

By combining these functions, operators can complete personnel ESD verification at one location rather than using separate testing equipment for different inspection items.

Quick Verification for Daily Operations

With a specified response time of less than 2 seconds and a testing speed of more than 60 people per minute, the CHUERA-4126A is designed for areas with regular personnel movement.

The fast testing process helps fit ESD inspection into existing entry procedures while reducing unnecessary waiting time during shift changes or busy production periods.

Digital Test Data Management

The tester supports automatic collection of test information and digital record management. Through the supporting software, users can manage personnel information, review testing records, and handle data import and export.

This makes it easier to maintain organized ESD inspection records and retrieve previous test information when required for internal management.

Flexible User Access

The system supports multiple operating permissions, allowing administrators to assign different access levels for equipment operation and management. This helps separate routine testing from configuration and administrative functions.

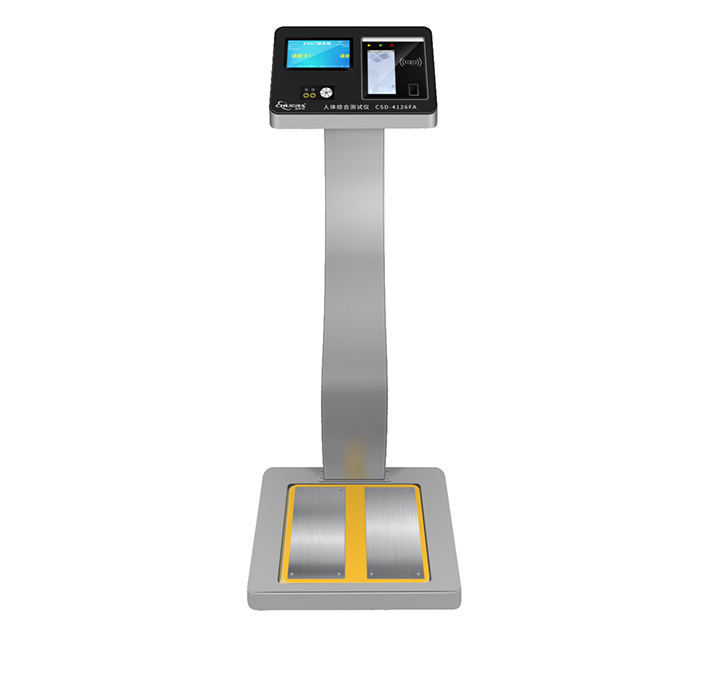

Stable Floor-Standing Design

The floor-standing construction provides a dedicated testing position for personnel. With dimensions of approximately 420 × 408 × 980 mm and a weight of around 15 kg, the unit can be positioned at suitable ESD inspection points without requiring a complicated installation structure.

Technical Specifications

Model: CHUERA-4126A

Power Supply: DC 15V/1A

Working Temperature: 20°C to 50°C

Working Humidity: 10% to 95% R.H.

Testing Speed: More than 60 people/minute

Response Time: Less than 2 seconds

Weight: Approximately 15 kg

Dimensions: 420 × 408 × 980 mm

Wrist Strap Testing Range: 0–2000 MΩ

Wrist Strap Output Voltage Range: 750K–35M

Footwear Testing Range: 0–2000 MΩ

Footwear Output Voltage Range: 100K–1000MΩ

Reference Standard: ISO/CD8782-1

Typical Application Areas

CHUERA-4126A can be used at ESD-controlled workshop entrances, electronics assembly lines, PCB production facilities, semiconductor manufacturing areas, laboratories, and other electrostatic-sensitive workplaces.

It is suitable for organizations that need a repeatable personnel grounding inspection process and digital records for routine ESD management.

FAQ

What does the CHUERA-4126A test?

The equipment is designed to test personnel grounding conditions through wrist strap and ESD footwear testing.

Can one unit test both wrist straps and ESD footwear?

Yes. The CHUERA-4126A combines both testing functions in one floor-standing system.

How quickly does the tester respond?

The specified response time is less than 2 seconds.

What is the testing throughput?

The specified testing speed is more than 60 people per minute.

Does it support test data collection?

Yes. The system supports automatic test data collection and digital record management through the supporting software.

Can test records be exported?

Yes. Data import and export functions are available for handling testing records.

What power supply is required?

The specified power supply is DC 15V/1A.

What is the equipment size?

The approximate dimensions are 420 × 408 × 980 mm.

Where can this tester be installed?

It can be used at ESD-controlled entrances, production workshops, laboratories, electronics assembly areas, and other designated personnel testing locations.
