Product Overview

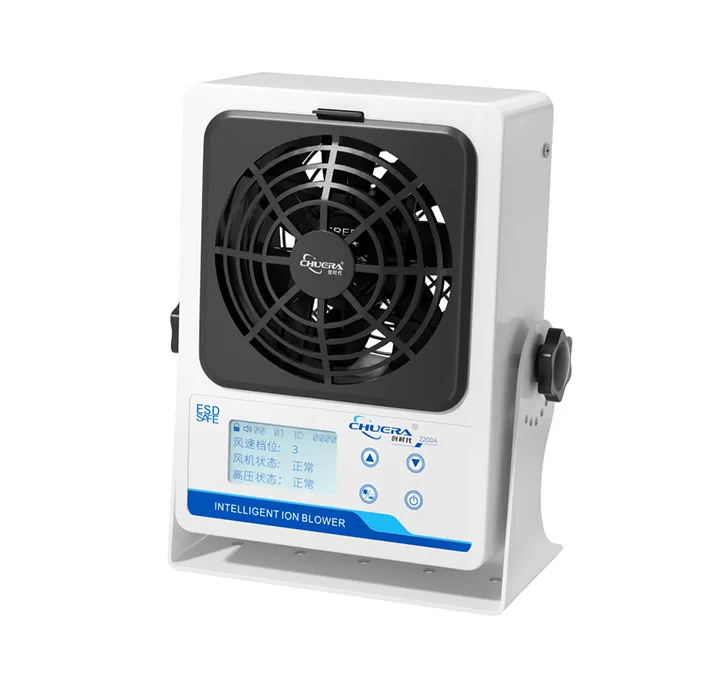

The CHUERA Intelligent High-Frequency Ionizing Fan is designed to control static electricity in work areas where electrostatic buildup may affect products, components or manufacturing processes.
The unit generates positive and negative ions through high-frequency AC discharge. These ions help neutralize static charges in the surrounding area, providing continuous support for ESD control during production.
Its integrated display and control functions allow operators to check equipment conditions and adjust operating parameters directly from the front panel.
High-Frequency Ionization
High-frequency AC discharge technology provides a continuous supply of ions for static charge neutralization.
The ionized airflow helps reduce electrostatic accumulation on products and nearby surfaces, making the equipment suitable for electronics, precision components and other static-sensitive materials.
Under the specified test conditions, the static decay performance can reach within 2 seconds at a 300 mm test distance.
Automatic Ion Needle Cleaning
The ionizing fan includes an automatic cleaning function for the ion-emitting needles.
Users can set the cleaning interval according to the working environment and operating schedule. This reduces the need for frequent manual cleaning and helps keep the ionization components in suitable working condition.
Adjustable Airflow
The fan provides 1–7 levels of airflow adjustment.
Different production areas can require different airflow conditions. Operators can select an appropriate level according to the working distance, product characteristics and surrounding environment.
Real-Time Equipment Monitoring
The large LCD display provides operating information directly on the equipment.
The interface can be used to monitor conditions such as:
This makes routine checks more convenient for operators.
Ion Balance Protection
Stable ion balance is important for effective static elimination.
The system monitors ion balance conditions during operation and can provide an alarm when the measured condition exceeds the configured range. This gives users a direct reference when checking the performance of the ionization system.
Wireless Communication
The product supports wireless communication and can connect with compatible management software.
Through wireless data transmission, equipment information can be collected for remote monitoring and centralized management. This function is useful for production facilities operating multiple ESD control devices.
Password-Based Management
The intelligent control system supports password settings for equipment management.
Access protection can help prevent unintended changes to important operating parameters, which is useful when the equipment is shared by multiple operators.
Maintenance-Friendly Structure

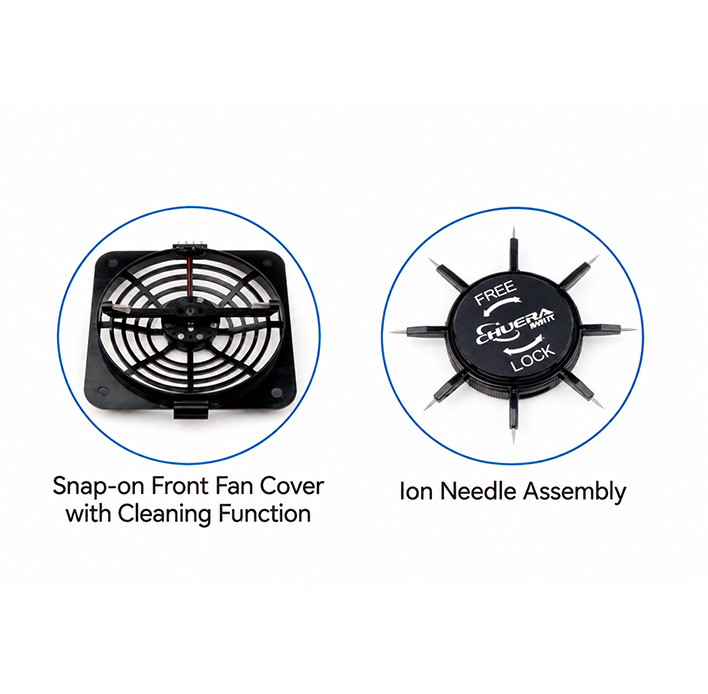

The front fan cover adopts a snap-on design for easier removal and cleaning.
The ion-emitting needle assembly also uses a practical structure that simplifies maintenance. Regular cleaning and inspection can help maintain normal airflow and ionization performance.
Grounding Protection
The unit is designed with grounding protection to improve electrical safety during operation.
Proper grounding and installation should be carried out according to the applicable equipment requirements and workplace electrical safety procedures.
Test Performance
According to the information provided for the product, the static elimination test uses a 300 mm, 600 mm and 900 mm test distance.
The test conditions include humidity of no more than 60%, a test voltage of 1KV–100V and an ambient temperature of 22°C.
At the specified distances, the positive and negative static decay times are approximately:
300 mm: 1.1s positive / 1.3s negative
600 mm: 1.5s positive / 1.7s negative
900 mm: 2.0s positive / 2.3s negative
The specified residual voltage is within ±10V under the stated test conditions. Actual performance may vary with installation distance, airflow, material properties and environmental conditions.
Product Features
High-frequency AC ionization
Rapid static charge neutralization
Automatic ion needle cleaning
1–7 level airflow adjustment
Real-time fan status monitoring
Ion balance monitoring
High-voltage and abnormal-condition alarms
Large LCD display
Wireless communication capability
Password-based equipment management
Snap-on front fan cover
Convenient maintenance structure
Grounding protection
Application Areas
The CHUERA Intelligent High-Frequency Ionizing Fan can be used in production areas where static electricity requires continuous control.
Typical applications include:
Electronics assembly
Semiconductor handling
PCB and SMT production
Precision component assembly
Optical product manufacturing
Laboratory workstations
Clean production areas
Automated manufacturing equipment
Plastic product handling
ESD-sensitive inspection areas
Production Line Integration
For production lines with several static-sensitive workstations, the wireless communication function provides an option for connecting individual ionizing fans to a centralized management system.
Operators can use the collected equipment information to understand operating conditions and manage maintenance tasks more efficiently.
Maintenance Considerations
Regular inspection of the fan cover, filter area and ion-emitting components is recommended as part of normal equipment maintenance.
The snap-on fan cover makes cleaning more accessible, while the automatic cleaning function helps reduce the frequency of manual ion needle maintenance.
Actual maintenance intervals should be adjusted according to dust levels, operating hours and the conditions of the production environment.
FAQ
What is the main function of this ionizing fan?
The main function is to reduce static electricity by generating positive and negative ions that neutralize electrostatic charges in the working area.
What type of ionization technology does it use?
The product uses high-frequency AC ionization technology.
Can the airflow be adjusted?
Yes. The fan provides seven airflow levels, allowing operators to select a suitable setting for different working conditions.
Does the product clean the ion needles automatically?
Yes. An automatic ion needle cleaning function is included, and the cleaning interval can be configured according to operating requirements.
What information can be viewed on the LCD screen?
The display provides equipment operating information such as fan status, high-voltage condition, ion balance and cleaning-related settings.
Does the device support wireless communication?
Yes. Wireless communication is available for transmitting equipment information to compatible management software.
Can operating parameters be protected?
Yes. Password-based management is supported to help control access to equipment settings.
How is the front fan cover maintained?
The front fan cover uses a snap-on structure, allowing it to be removed more easily for cleaning and inspection.
What is the tested static decay time?
Under the stated test conditions, the positive decay time is approximately 1.1s at 300 mm, 1.5s at 600 mm and 2.0s at 900 mm. Negative decay times are approximately 1.3s, 1.7s and 2.3s respectively.
Where can this ionizing fan be used?
It is suitable for electronics, semiconductor, SMT, precision assembly, optical manufacturing, laboratory and other ESD-sensitive working environments.
