Product Overview

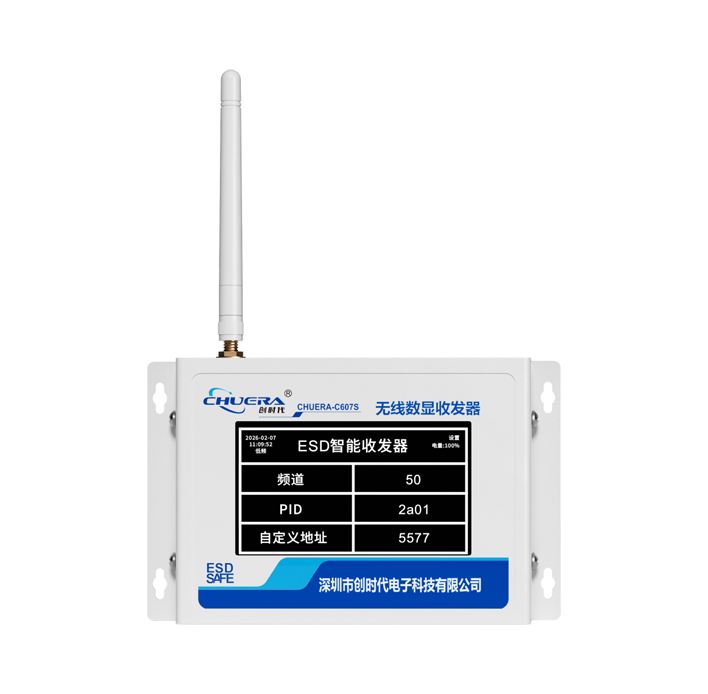

The CHUERA-607A/607D/607S Wireless Data Transceiver Gateway provides a communication bridge between Ethernet networks and LoRa or ZigBee wireless devices.
It is designed for applications where multiple monitoring terminals are distributed across production lines, workshops, buildings or other industrial areas. The gateway transfers data between wired Ethernet networks and wireless devices, helping users build a more flexible monitoring and management system.
It can work with CHUERA wireless ESD monitoring equipment, ESD elimination devices, temperature and humidity monitors, environmental monitoring devices and other compatible wireless terminals.
Ethernet to LoRa / ZigBee Communication
The 607 series connects Ethernet networks with LoRa or ZigBee wireless networks.
Data received through Ethernet can be transmitted to wireless terminals, while information collected from wireless devices can be transferred back to the management platform.
This combination allows wired and wireless communication to be used within the same system and reduces the need for extensive communication cabling at individual monitoring points.
Multi-Device Data Collection
The gateway is suitable for systems containing different types of monitoring equipment.
Compatible applications include:
Wireless ESD monitoring devices
Wireless ESD elimination equipment
Wireless temperature and humidity monitors
Wireless environmental monitoring devices
Intelligent wireless terminals
Other compatible monitoring equipment
Data generated by these devices can be collected and transmitted through the gateway to the system platform or data server.
Local Data Storage
Network interruptions do not necessarily mean monitoring data has to be lost.
When communication becomes abnormal, the CHUERA-607A/607D/607S can automatically store up to 1000 records locally.
After communication returns to normal, the stored records can be automatically transferred to the PC system.
The data recording period can also be adjusted according to actual project requirements.
Wireless Signal Monitoring
The gateway can dynamically display wireless communication signals and signal strength.
This function gives engineers a convenient way to check communication quality during installation, commissioning and daily maintenance.
Signal information is particularly useful when monitoring points are located at different distances or when the wireless environment changes between production areas.
Historical Data Query
Collected monitoring data can be searched using different conditions.
Available query conditions include:
Time
Date
Device type
Operating status
This makes it easier to review historical records when checking an abnormal event or analyzing operating conditions over a specific period.
Reports and Data Download
Monitoring information can be organized into reports, charts and trend curves.
The system supports data output and download, allowing users to keep records for internal review, production management or later analysis.
This function is useful for projects that require both real-time monitoring and historical data management.
PC and Mobile App Management
The system supports two management methods:
PC management
Mobile app management
PC management is suitable for centralized system configuration and data review, while the mobile app provides greater flexibility for remote checking and management.
Together, these two modes allow users to access the monitoring system according to different operating environments.
Online Upgrade Support
The CHUERA-607A/607D/607S supports online upgrades.
This simplifies future system maintenance and makes it easier to update device functions without replacing the hardware.
The management software also supports intelligent IP locking for easier device identification and network management.
Flexible Network Configuration
The gateway can be configured as a Coordinator or Router, depending on the wireless network structure.
Coordinator is the default configuration.
This flexibility allows the gateway to be adapted to different system layouts and communication requirements.
Long-Range Wireless Communication
The 607 series supports both high-frequency ZigBee and low-frequency LoRa communication.
In an open line-of-sight environment with an external antenna:
Actual communication distance can vary depending on antennas, installation conditions, obstacles and the surrounding wireless environment.
Technical Specifications
| Parameter | Specification |
Model | CHUERA-607A / 607D / 607S |
Input Voltage | DC 9V / 1A |
Operating Temperature | -40°C to +85°C |
ZigBee Frequency | 2.4GHz, selectable from 2405MHz to 2480MHz |
ZigBee Channels | Channels 11–26 |
ZigBee Frequency Step | 5MHz |
LoRa Frequency | 470MHz, selectable from 470MHz to 510MHz |
LoRa Channels | Channels 30–70 |
LoRa Frequency Step | 1MHz |
Serial Baud Rate | 115200 bps |
Serial Format | Default 8-N; configurable to 8-N-1, 8-E-1 or 8-O-1 |
High-Frequency Transmission Distance | Up to 800 m in open line-of-sight conditions with external antenna |
Low-Frequency Transmission Distance | Up to 1600 m in open line-of-sight conditions with external antenna |
Power Supply Current | >350 mA |
Average Working Current | Approx. 25 mA |
Standby Current | Approx. 20 mA |
Receiving Current | Approx. 23 mA |
Transmitting Current | Approx. 200 mA @ 5V |
Receiver Sensitivity | -98 dBm |
Node Type | Coordinator (default) / Router |
Supported Protocols | ETHERNET, ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, DNS |
Local Data Storage | Up to 1000 records during communication interruption |
Management Modes | PC and Mobile App |
Main Features
Ethernet to LoRa or ZigBee communication
Wireless data collection and transmission
Supports multiple types of monitoring terminals
Up to 1000 local records during communication interruption
Automatic data upload after communication recovery
Dynamic wireless signal strength display
Historical data query by time, date, type and status
Report, chart and trend curve output
Data download support
Online device upgrade
Intelligent IP locking
PC and mobile app management
Coordinator and Router configuration
Suitable for remote monitoring and management
Typical Applications
The CHUERA-607A/607D/607S can be used in different wireless monitoring and data collection systems, including:
ESD monitoring systems
Electronics manufacturing
SMT production environments
Temperature and humidity monitoring
Building environmental monitoring
Smart industrial workshops
Equipment condition monitoring
Asset management systems
Smart building applications
Remote environmental monitoring
Wireless sensor networks
Multi-point industrial data collection
Built for Connected Monitoring Systems
A modern monitoring system often contains many devices spread across different locations.
The role of the CHUERA-607A/607D/607S is to connect these devices and move their data between the wireless field network and the Ethernet management network.
With support for LoRa, ZigBee, local storage, remote management and historical data handling, the 607 series provides a practical communication layer for projects that need multiple monitoring devices to work together.
FAQ
What is the CHUERA-607A/607D/607S?
It is a wireless data transceiver gateway designed to connect Ethernet networks with LoRa or ZigBee wireless networks.
Does it support both LoRa and ZigBee?
Yes. The 607 series supports LoRa and ZigBee communication according to the model and system configuration.
What devices can connect to the gateway?
It can work with CHUERA wireless ESD monitoring devices, ESD elimination equipment, temperature and humidity monitors, environmental monitors and other compatible wireless terminals.
Can the gateway store data during a network interruption?
Yes. It can automatically store up to 1000 records locally when communication is interrupted.
What happens to the stored data after communication is restored?
The stored records can be automatically transferred to the PC system after communication returns to normal.
Can historical data be searched?
Yes. Records can be queried according to time, date, type and operating status.
Can monitoring data be exported?
Yes. The system supports reports, charts, trend curves and data download.
Does the gateway display wireless signal strength?
Yes. Wireless communication status and signal strength can be displayed dynamically.
Can the device be managed from a mobile phone?
Yes. The system supports both PC management and mobile app management.
Does it support online upgrades?
Yes. Online upgrades are supported for easier system maintenance.
What is the maximum wireless transmission distance?
In open line-of-sight conditions with an external antenna, high-frequency communication can reach up to 800 meters and low-frequency communication can reach up to 1600 meters.
What network protocols are supported?
Supported protocols include ETHERNET, ARP, IP, ICMP, UDP, TCP, HTTP, DHCP and DNS.
Where can the gateway be used?
It is suitable for ESD monitoring, electronics manufacturing, smart workshops, environmental monitoring, asset management, building monitoring and other industrial wireless data collection systems.
