Product Overview

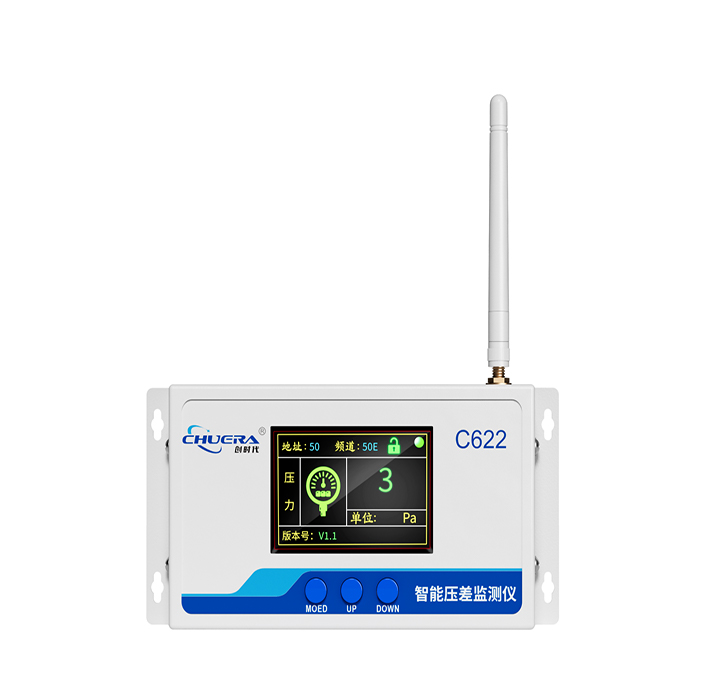

The CHUERA-C622 Intelligent IoT Differential Pressure Monitor is developed for environments where pressure difference control plays an important role in maintaining stable operating conditions.
In controlled areas such as cleanrooms and laboratories, pressure difference helps manage airflow direction and prevent unwanted air movement between different zones.
The C622 continuously measures pressure differences and provides real-time monitoring information, allowing users to better understand environmental conditions and maintain stable air management.
Accurate Pressure Difference Measurement
The CHUERA-C622 uses a differential pressure measurement method to monitor pressure variations between two points.
The measuring range is:
-30KPa to 100KPa
With stable sensing performance and adjustable output options, the device can adapt to different industrial monitoring requirements.
The measurement accuracy supports reliable environmental condition evaluation where pressure control is important.
Airflow Condition Monitoring
Pressure difference is an important factor in many controlled environments.
By monitoring pressure changes, the CHUERA-C622 helps users evaluate:
This makes the device useful for applications where maintaining directional airflow is required.
Suitable for Controlled Environments
Many industries require stable pressure conditions to maintain product quality and environmental consistency.
The CHUERA-C622 can be used in areas such as:
The monitor provides continuous pressure information to support daily environmental management.
Multiple Output Signal Options
The C622 supports different output methods to fit various control systems.
Available output signals include:
4-20mA
1-5V
0-10V
0-20mA
RS485
This flexibility allows the device to connect with different industrial control platforms and monitoring systems.
Intelligent Data Integration
The CHUERA-C622 supports intelligent monitoring system integration.
Through communication functions, measurement information can be transferred to a management platform for centralized viewing and analysis.
This allows users to monitor multiple environmental parameters from one system and improve management efficiency.
Stable Operation in Industrial Conditions
The device is designed for long-term operation in industrial environments.
Operating conditions:
Working temperature:
-20°C to +80°C
Working humidity:
0–90%RH
The wide operating range allows the monitor to be applied in different environmental conditions while maintaining stable measurement performance.
Fast Response Monitoring
The CHUERA-C622 provides quick response to pressure changes.
Response time:
1 second
Fast response helps users identify pressure variations in time, especially in environments where airflow conditions may change during operation.
Flexible Installation and System Application
The compact monitoring structure allows convenient installation in different application environments.
The device can be integrated into existing monitoring systems and used together with other environmental monitoring equipment.
It provides a practical solution for users who need continuous pressure difference observation.
Technical Information
Model: CHUERA-C622
Product Type: Intelligent IoT Differential Pressure Monitor
Power Supply: DC12V–36V
Wireless Communication: ZigBee / LoRa
Working Temperature: -20°C to +80°C
Working Humidity: 0–90%RH
Measurement Range: -30KPa to 100KPa
Compensation Temperature Range: 0–50°C
Output Signal: 4-20mA / 1-5V / 0-10V / 0-20mA / RS485
Resolution: 0.1dB
Comprehensive Accuracy: 0.2 / 0.5 grade optional
Measurement Method: Differential Pressure
Response Time: 1 second
Temperature Drift: ±0.03%FS/°C
Overpressure Capacity: 300%FS
Product Features
Real-time differential pressure monitoring
Suitable for clean and controlled environments
Supports multiple industrial output signals
Stable measurement performance
Fast response to pressure changes
Supports ZigBee and LoRa communication
Wide operating temperature range
Suitable for intelligent environmental management systems
Flexible integration with industrial platforms
Application Areas
The CHUERA-C622 is suitable for applications requiring continuous pressure difference monitoring.
Typical application areas include:
Cleanroom environmental control
Pharmaceutical production areas
Laboratory pressure monitoring
Electronics manufacturing workshops
Semiconductor production environments
Air handling systems
HVAC monitoring projects
Precision manufacturing facilities
Industrial ventilation management
Controlled production areas
Improving Environmental Control Efficiency
Pressure difference monitoring is an important part of maintaining stable airflow and environmental separation.
The CHUERA-C622 provides continuous measurement instead of relying only on manual inspection.
By collecting pressure data in real time, users can better understand environmental changes, optimize ventilation performance and improve management efficiency in controlled spaces.
FAQ
What does the CHUERA-C622 measure?
The CHUERA-C622 measures pressure difference between two points and provides real-time monitoring data.
Where is a differential pressure monitor commonly used?
It is commonly used in cleanrooms, laboratories, electronics manufacturing areas and other controlled environments requiring airflow management.
What is the measurement range of the C622?
The measurement range is -30KPa to 100KPa.
What output signals does the device support?
The device supports 4-20mA, 1-5V, 0-10V, 0-20mA and RS485 output signals.
Does the C622 support wireless communication?
Yes. The device supports ZigBee and LoRa communication options.
