Product Overview

CHUERA-C268D is a portable CPM static electricity tester developed for ESD control and static charge evaluation. It combines static decay testing with environmental measurement, giving operators a convenient way to check charge behavior and record test information at the inspection site.

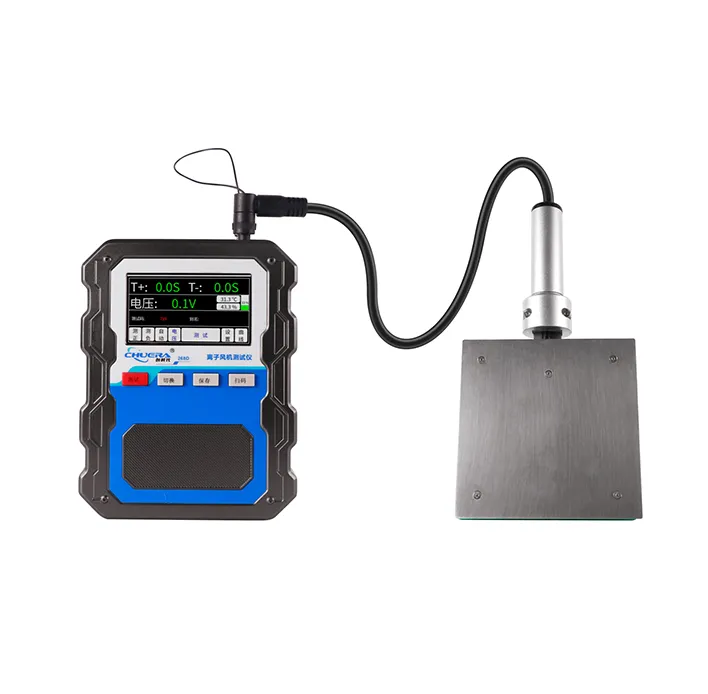

The handheld instrument is supplied with a measurement probe and conductive test plate, providing a practical setup for routine static electricity testing.

CPM Testing Capability

The CHUERA-C268D is designed to evaluate the performance of static control materials and equipment by measuring static charge decay and charge balance.

The specified discharge voltage is ±1050V, allowing the instrument to be used for controlled CPM testing where positive and negative charge conditions need to be examined.

Environmental Data at the Point of Test

Temperature and humidity can be measured during testing. The temperature measurement range is −10°C to 80°C, while the humidity range is 0 to 100% RH.

Recording these conditions together with electrical test results provides additional reference when reviewing ESD inspection data.

Clear Color Display

A 4.3-inch color display provides a straightforward interface for viewing measurements and operating the tester. Important test information can be checked directly on the instrument without requiring a separate display terminal.

The screen-based interface also makes parameter adjustment and record review more convenient during inspection work.

Test Identification and Record Management

The tester supports barcode and QR code scanning through an external USB scanning device. This allows test objects or work areas to be identified before measurement, helping reduce confusion when multiple inspection points are involved.

Test records can be stored within the instrument for later review and management.

Network-Based Data Handling

CHUERA-C268D supports network communication and can transmit testing data through a connected network environment. This makes it suitable for inspection workflows where measurement records need to be collected and managed centrally.

The network function can also reduce the need for repeated manual entry when test data is transferred to a management system.

Practical Handheld Construction

With a body weight of approximately 2 kg and dimensions of 240 × 170 × 70 mm, the tester is designed for on-site use. Its handheld form allows operators to move between different ESD inspection points without carrying a large testing setup.

External Scanning Interface

The scanning function uses an external USB interface, providing a flexible connection method for barcode or QR code identification equipment.

This configuration can be integrated into inspection procedures where each test location, workstation, or material requires a corresponding identification code.

Product Specifications

Model: CHUERA-C268D

Input Voltage: DC24V

Discharge Voltage: ±1050V

Temperature Measurement Range: −10°C to 80°C

Humidity Measurement Range: 0 to 100% RH

Display: 4.3-inch Color Display

Scanning Type: Barcode / QR Code

Communication: Network Data Transmission

Scanning Interface: External USB Interface

Weight: Approximately 2 kg

Dimensions: 240 × 170 × 70 mm

Typical Applications

CHUERA-C268D can be used for ESD testing in electronics manufacturing, semiconductor production, cleanrooms, laboratories, assembly areas, quality inspection departments, and other workplaces where static charge control is important.

It can support inspections of ESD protective materials, work areas, Static control systems, and other applications requiring static decay and charge balance evaluation.

Why Use CHUERA-C268D

The instrument brings measurement, environmental monitoring, identification, and data handling into one portable testing platform. Its color display simplifies on-site operation, while scanning and network functions help connect individual measurements with a broader inspection record system.

For facilities carrying out regular ESD checks, this combination can make testing more organized and easier to track.

FAQ

What is the CHUERA-C268D used for?

It is used for CPM static electricity testing, including static decay and charge balance evaluation.

What discharge voltage does the tester support?

The specified discharge voltage is ±1050V.

Can it measure temperature and humidity?

Yes. It measures temperatures from −10°C to 80°C and humidity from 0 to 100% RH.

What type of display is included?

The instrument uses a 4.3-inch color display.

Does it support barcode and QR code identification?

Yes. Barcode and QR code scanning is supported through an external USB interface.

Can testing data be stored?

Yes. The product supports test record storage for later review and management.

Does the tester support network communication?

Yes. CHUERA-C268D supports network-based data transmission.

What is the approximate weight?

The instrument weighs approximately 2 kg.

What are the product dimensions?

The specified dimensions are 240 × 170 × 70 mm.

Where can this tester be used?

It is suitable for ESD inspection in electronics factories, laboratories, clean production areas, assembly workshops, and other static-controlled environments.
