320 W Peak Power with Tips up to 10 mm

The CHUERA-316D is a high-power soldering station for lead-free work requiring larger tip profiles and responsive heating. It uses high-frequency eddy current heating to support fast warm-up and temperature recovery as heat is transferred from the tip into a connection.

Maximum instantaneous power is 320 W, and the station supports conventional soldering tips up to 10 mm. This combination provides scope to select a larger contact profile where the joint requires it, rather than relying on a narrow tip for every task.

The adjustable temperature range is 50–550°C. Temperature and tip shape can be selected together to suit the soldering point, with the available 501 Series profiles offering different working surfaces.

Define the Temperature Window for Each Job

The CHUERA-316D allows the operator to configure upper and lower temperature alarm limits. When the detected temperature moves outside the selected range, the station provides an alarm.

These limits give the operator a way to monitor a defined process range rather than checking only the target setting. They can be selected according to the temperature requirements of the soldering task.

The LCD displays the real-time temperature and set temperature simultaneously. Both values remain visible during operation, allowing the reported temperature to be compared with the target without switching screens. The alarm function supplements this display by drawing attention to an out-of-range condition.

Protect the Setting, Adjust the Calibration

The front-panel buttons provide access to working-temperature adjustment. Once the required setting has been established, the password-protected temperature lock helps prevent unintended or unauthorized changes.

This is useful for repeated work where the same setting needs to remain in place across successive soldering operations. The lock protects the selected temperature while the LCD continues to show the operating reading.

The station also supports digital temperature calibration. A correction can be made when a suitable reference measurement identifies an offset. Calibration and temperature locking serve separate purposes: calibration corrects an identified deviation, while locking restricts changes to the working setting.

Automatic Sleep and Shutdown Between Tasks

Microcomputer control manages the station’s operating functions, including automatic sleep and automatic shutdown.

These functions handle periods of inactivity between soldering tasks. They complement the temperature controls used during active work, providing sleep and shutdown behavior when the station is not being used.

The two functions are distinct from the temperature alarm: sleep and shutdown relate to idle operation, while the alarm monitors whether the detected temperature remains within the configured process range.

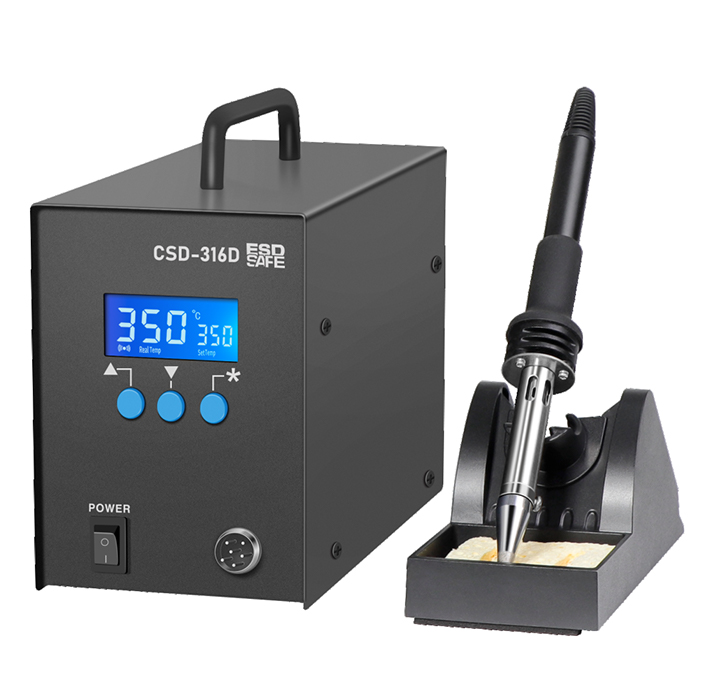

An Upright Controller with a Top Carry Handle

The CHUERA-316D uses an upright enclosure measuring 235 × 115 × 160 mm. Its front panel groups the LCD, adjustment buttons, power switch and handpiece connector in one accessible area.

A handle on top of the enclosure provides a grip for repositioning the control unit. The separate iron holder can be placed alongside it to suit the operator’s working position, leaving the display and buttons unobstructed.

The holder incorporates a sponge tray for tip cleaning and a resting position for the handpiece. The listed product weight is approximately 3.59 kg.

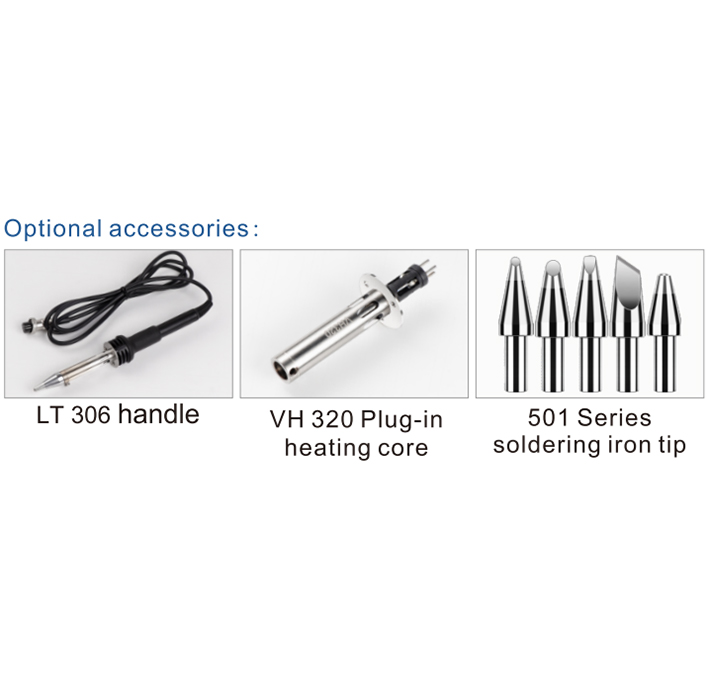

LT 306 Handpiece, VH 320 Heater and 501 Series Tips

The CHUERA-316D uses a plug-in heating core, allowing the heater to be replaced as a separate service component. The listed accessory references identify the matching handpiece, heating core and tip family.

LT 306 Soldering Handle

The LT 306 is the optional handle listed for this model. It is shown as a handpiece-and-cable assembly with a connector for the station. The handpiece rests in a separate holder between soldering operations.

VH 320 Plug-In Heating Core

The VH 320 is the listed replacement heating core. Its plug-in construction simplifies removal and replacement during servicing. The heater and soldering tip are separate components, rather than a single integrated cartridge.

501 Series Soldering Tips

The listed tip family is the 501 Series. The illustrated selection includes several contact profiles for different joint shapes and working spaces. Replacement tips should be selected from the specified series and matched to the required soldering task.

These components are identified as optional accessories. The accessory illustrations do not indicate that every pictured spare part is included with each station.

CHUERA-316D Operating Specifications

Model: CHUERA-316D
Product Type: High-power intelligent lead-free soldering station
Heating Method: High-frequency eddy current heating
Operating Voltage: AC 220 V, 50 Hz
Operating Temperature Range: 50–550°C
Maximum Instantaneous Power: 320 W
Temperature Stability, No Load: ±2°C
Temperature Adjustment: Push-button control
Temperature Calibration: Digital correction
Display: LCD with simultaneous real-time and set temperature readings
Temperature Alarms: Configurable upper and lower limits
Temperature Lock: Password protected
Automatic Functions: Sleep and shutdown
Maximum Conventional Soldering Tip Size: 10 mm
Soldering Iron Resistance to Ground: <2 Ω
Soldering Iron Potential to Ground: <2 mV
Station Dimensions: 235 × 115 × 160 mm, L × W × H
Listed Product Weight: Approximately 3.59 kg

The ±2°C specification applies to temperature stability under no-load conditions. The 320 W figure is maximum instantaneous power, not a separately specified continuous power rating.

Packing Dimensions and Carton Quantity

Individual Package Size: 320 × 260 × 220 mm
Outer Carton Size: 565 × 345 × 600 mm
Packing Quantity: 4 sets per carton

FAQ

What is the maximum power of the CHUERA-316D?

The station has a specified maximum instantaneous power of 320 W. It uses high-frequency eddy current heating for fast warm-up and temperature recovery.

Which soldering tips are listed for this model?

The CHUERA-316D uses 501 Series soldering tips and supports conventional tip sizes up to 10 mm. Select the profile according to the joint shape and available working space.

Can the upper and lower temperature alarm limits be changed?

Yes. Both limits can be configured to define a working temperature range. The station provides an alarm when the detected temperature moves outside that range.

Does the LCD display both temperatures at once?

Yes. The real-time temperature and selected temperature appear together, so the operator can compare the reported reading with the target during operation.

How can the working temperature be protected from accidental adjustment?

The password-protected temperature lock restricts changes to the selected setting. This helps retain the required temperature during repeated soldering work.

Which replacement handle and heater should be specified?

The listed components are the LT 306 handle and VH 320 plug-in heating core. The soldering tips belong to the 501 Series.

Does the station include automatic sleep and shutdown?

Yes. Both functions are included. The supplied specifications do not identify the delay values or confirm whether those delays are adjustable.

What electrical supply does the station require?

The specified input is AC 220 V at 50 Hz. Use a supply that matches the rating marked on the individual station.
