Product Overview

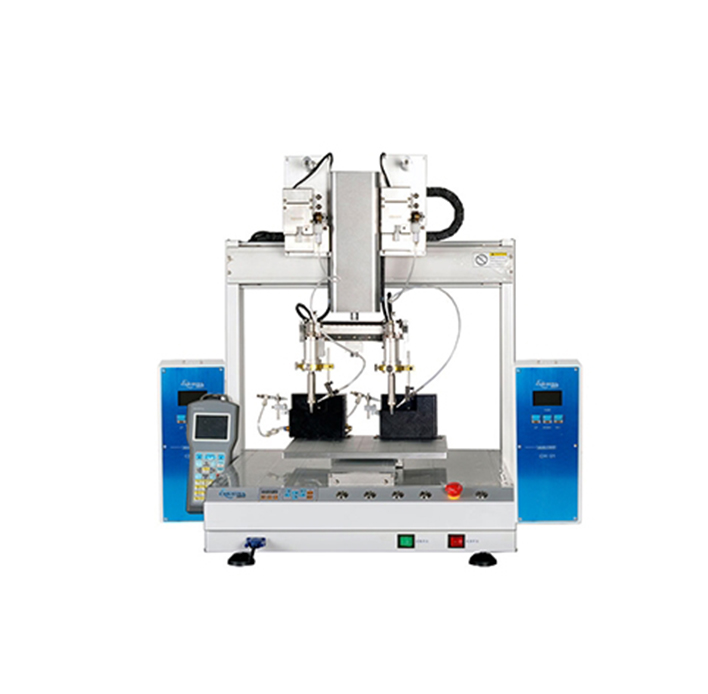

The 3-Axis Dual-Head Automatic soldering machine is a high-efficiency Industrial robotic soldering system designed for modern electronics manufacturing. It integrates a 3-axis motion structure with a dual soldering head design, enabling simultaneous or alternating soldering operations to significantly improve production efficiency and consistency.
This equipment allows one operator to manage multiple machines, effectively reducing labor costs while improving overall production quality. It is widely used in PCB assembly, electronic component manufacturing, and precision industrial soldering applications where high accuracy and stable performance are required.
With advanced motion control technology and intelligent soldering programming system, the machine supports flexible path editing, real-time adjustment, and continuous high-speed operation, making it ideal for mass production environments.
Key Features
Dual-Head Soldering Efficiency
Two independent soldering heads improve production speed and reduce cycle time.
3-Axis Precision Motion System
Stable and accurate positioning ensures consistent soldering quality.
High Power Heating System
Equipped with 150W–200W German silver heating system for fast thermal response.
Patented Soldering Tip Positioning
Ensures accurate alignment and stable soldering point control.
Intelligent Programming System
Graphical interface supports array programming, quick editing, and real-time modification.
High-Speed Industrial Motion
Imported motion components enable high-speed operation with ±0.02mm repeat accuracy.
IO Interface Expansion
Supports multiple IO ports for fixture control and production line integration.
Vision System Compatibility
Can integrate with vision positioning for coordinate correction and higher accuracy.
Multi-Machine Operation Support
One operator can manage multiple machines to improve productivity.
Stable Industrial Performance
Designed for continuous operation in demanding manufacturing environments.
Technical Specifications
| Item | Specification |
Axis Travel | X300 / Y300 / Z100mm |
Working Area | W290 × L290mm × 2 stations |
Overall Dimension | W650 × D650 × H900mm |
Max Moving Speed | X/Y: 0.1–800mm/s; Z: 0.1–500mm/s; R-axis: 0.1–600°/s |
Repeat Positioning Accuracy | X/Y/Z: ±0.02mm; R-axis: ±0.2° |
Single Worktable Load | 8KG |
Input Voltage | 220V |
Input Air Pressure | 4–8kg/cm² |
Teaching Mode | Handheld Programmer Teaching |
Program Storage | 1000 groups stored, up to 8000 commands per group |
Applicable Solder Wire | Φ0.3–1.2mm; wire peeling function only for Φ0.8–1.2mm |
Heating Power Per Soldering Iron | 150W–200W |
No-Load Temperature | 2℃ (Note: obvious typo, standard working temp 200–450℃) |
Temperature Compensation Range | ±50℃ |
Product Advantages
High Productivity Dual Head Design
Dual head operation significantly increases soldering efficiency.
Precision and Stability
3-axis motion system ensures accurate and repeatable soldering points.
Advanced Control System
Supports flexible programming and real-time process adjustment.
Reduced Labor Cost
Multi-machine operation reduces manpower requirements.
Strong System Integration
Compatible with automation production lines and fixture systems.
Vision Assisted Accuracy
Optional vision system improves alignment precision.
Stable Long-Term Operation
Built for continuous industrial use with high reliability.
Improved Yield Rate
Reduces soldering defects and enhances product consistency.
Working Principle
The machine operates through a coordinated 3-axis motion system combined with dual soldering heads. The system executes pre-programmed soldering paths while maintaining stable temperature control through a high-power heating system.
Each soldering head can operate independently or in coordinated mode to complete complex multi-point soldering tasks. Optional vision systems provide real-time coordinate correction to ensure precise alignment on PCB or workpieces.
Applications
PCB Assembly Manufacturing
Electronics Production Lines
Automotive Electronics
Communication Equipment Manufacturing
Smart Device Assembly
LED Industry Soldering
Industrial automation equipment
Medical Electronics Manufacturing
Precision Component Assembly
Mass Production Lines
Why Choose Shenzhen Chuera Electronics Technology Co., Ltd.
Shenzhen Chuera Electronics Technology Co., Ltd. specializes in intelligent soldering systems, automation equipment, dispensing machines, screw locking systems, and industrial electronic manufacturing solutions. We provide high-precision, stable, and efficient production equipment for global manufacturing industries.
With strong R&D capability and strict quality control systems, we support OEM and ODM customization to meet diverse industrial automation requirements.
FAQ
1. What is a 3-axis dual-head soldering machine used for?
It is used for automated soldering in electronics and PCB manufacturing.
2. What is the advantage of dual-head design?
It increases production efficiency and reduces cycle time.
3. What is the positioning accuracy?
The system achieves ±0.02 mm repeat accuracy.
4. Does it support vision systems?
Yes, it can integrate with vision positioning systems.
5. Can one operator control multiple machines?
Yes, one operator can manage multiple units.
6. Is programming flexible?
Yes, it supports graphical and array programming.
7. What industries use this machine?
Electronics, automotive, communication, LED, and industrial manufacturing.
8. Can it run continuously?
Yes, it is designed for long-term industrial operation.
9. Does it support IO expansion?
Yes, multiple IO interfaces are available.
10. Why choose this machine?
It provides high speed, dual-head efficiency, precision control, and stable industrial performance.
