Product Overview

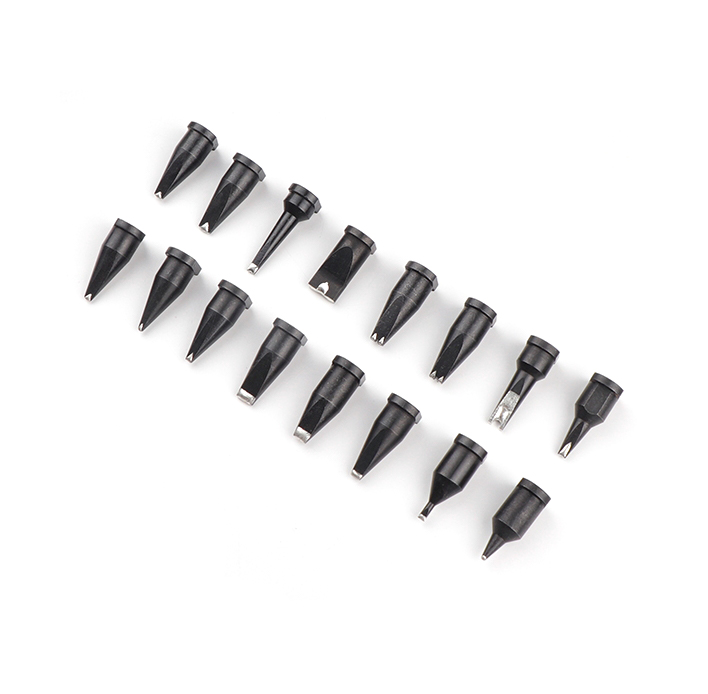

The Weller Compatible Soldering Iron Tips are high-performance consumable components designed for Automatic soldering machines and precision electronic assembly applications. These soldering tips are engineered with strict material control and advanced electroplating technology to ensure stable thermal conductivity, excellent corrosion resistance, and long service life under continuous industrial operation.

The performance of a soldering tip largely depends on the quality of its iron plating layer. If the plating is too thin, it reduces corrosion resistance and shortens service life; if too thick, it affects heat transfer efficiency. The Weller-compatible tips are manufactured with optimized plating thickness and stable electroplating processes to achieve the best balance between thermal conductivity and durability.

For lead-free applications, the material must comply with strict environmental standards. These soldering tips are designed to meet international lead-free requirements (such as EU RoHS and Sony standards), ensuring that heavy metal content including lead (Pb), cadmium (Cd), mercury (Hg), and hexavalent chromium (Cr6+) remains within safe limits. The tips are further treated with special anti-corrosion processes and plated with lead-free tin to enhance performance in high-temperature soldering environments.

Available in multiple geometries such as V-type and DU-type, these soldering tips support customization based on customer drawings or samples, making them suitable for a wide range of automatic soldering systems and precision manufacturing processes.

Key Features

Optimized Iron Plating Technology

Controlled plating thickness ensures a balance between corrosion resistance and thermal conductivity.

Excellent Heat Transfer Performance

High-quality copper core ensures fast heating response and stable thermal delivery.

Lead-Free Compliance

Manufactured according to EU RoHS and Sony standards, ensuring safe and environmentally friendly production.

Strong Corrosion Resistance

Special surface treatment improves oxidation resistance and extends service life.

Multiple Tip Shapes Available

Supports V-type, DU-type, and custom-designed geometries for different soldering applications.

High-Precision Manufacturing

Strict production control ensures consistent performance and stable quality.

Customizable Design

Supports OEM customization based on drawings or samples.

Stable Industrial Performance

Suitable for continuous operation in automatic soldering systems.

Long Service Life

Enhanced material structure improves durability under high-temperature conditions.

Wide Equipment Compatibility

Compatible with Weller-style and automatic soldering machines.

Technical Specifications

Product Advantages

Critical Plating Technology Control

Precise control of plating thickness and crystal structure ensures stable performance and long service life.

High Thermal Efficiency

Copper-based core ensures rapid heat conduction and consistent soldering temperature.

Environmentally Safe Design

Complies with lead-free standards to meet global environmental regulations.

Reduced Replacement Frequency

Enhanced durability reduces maintenance and replacement costs in production lines.

Stable Soldering Quality

Ensures consistent tin flow and reliable solder joints in automated production.

Flexible Custom Options

Supports various shapes and customized designs based on industrial requirements.

Suitable for Mass Production

Designed for continuous use in high-volume electronics manufacturing environments.

Working Principle

The soldering tip operates as the final heat transfer element in the soldering system. Electrical energy is converted into heat through the heating element, which is then conducted through the copper core of the tip. The optimized iron plating layer protects the copper from oxidation while maintaining efficient thermal transfer.

During operation, solder melts upon contact with the heated tip surface and is precisely applied to electronic components or PCB pads. The surface plating prevents solder adhesion on non-working areas, ensuring controlled solder flow and stable soldering performance.

Applications

Automatic Soldering Machines

PCB Assembly Lines

Electronics Manufacturing

SMT Production

Automotive Electronics

Communication Equipment

Medical Electronics

Precision Repair Stations

Industrial Automation Systems

High-End Electronic Assembly

Why Choose Shenzhen Chuera Electronics Technology Co., Ltd.

Shenzhen Chuera Electronics Technology Co., Ltd. specializes in intelligent soldering systems, Automatic soldering accessories, ESD control solutions, and industrial electronic manufacturing tools. We focus on delivering high-precision, durable, and reliable products that meet modern electronics manufacturing requirements.

With advanced production technology and strict quality inspection systems, we provide OEM and ODM customization services for global customers. Our products are widely used in electronics manufacturing, automotive electronics, and industrial automation fields.

FAQ

1. What are Weller compatible soldering tips used for?

They are used in automatic and manual soldering systems for precision electronic assembly.

2. What materials are used in these soldering tips?

They are made of copper, iron plating, nickel, chromium, and tin.

3. What is the advantage of iron plating?

Iron plating improves corrosion resistance while maintaining good heat transfer efficiency.

4. Are these soldering tips lead-free?

Yes. They comply with EU RoHS and Sony lead-free standards.

5. What shapes are available?

Common shapes include V-type, DU-type, and customized designs.

6. Can these tips be customized?

Yes. We support customization based on drawings or samples.

7. What industries use these soldering tips?

Electronics manufacturing, PCB assembly, automotive electronics, and industrial automation.

8. How long is the service life?

Service life depends on usage conditions, but optimized plating significantly extends durability.

9. Are they compatible with automatic soldering machines?

Yes. They are designed for automatic soldering systems and Weller-style equipment.

10. Why choose Chuera soldering tips?

They offer stable quality, precise manufacturing control, strong durability, and full OEM customization support.
