Product Overview

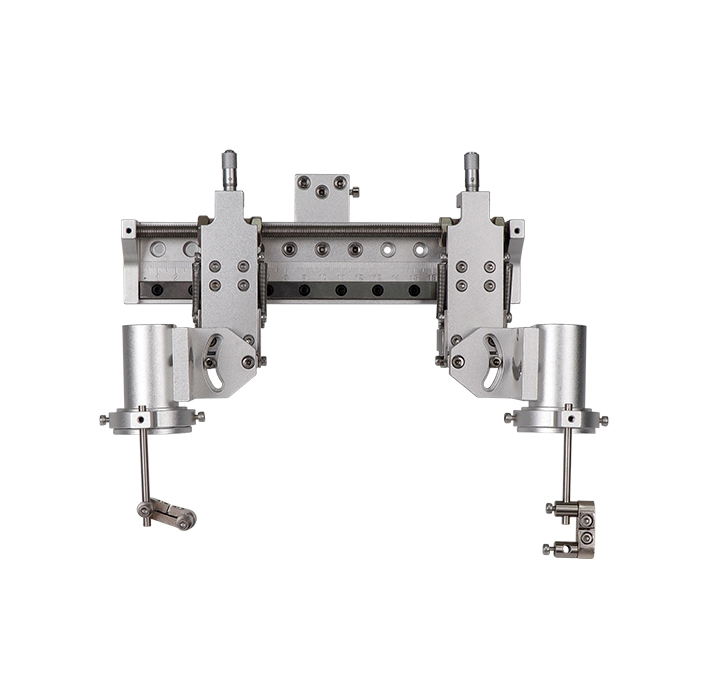

The CH005Q Adjustable Soldering Machine Fixture Clamp is a professional positioning accessory designed for automatic Soldering equipment, Robotic Soldering Systems, and intelligent soldering workstations. Manufactured from high-quality aluminum alloy, it provides stable support for soldering handles while ensuring accurate positioning throughout the soldering process.

Designed for compatibility with CH01 and CH01A heating handles equipped with WSP150 heating elements, the CH005Q helps improve soldering consistency by securely holding the soldering assembly in the correct working position. Its adjustable center distance from 40 mm to 235 mm enables flexible installation to meet different production requirements and equipment configurations.

The lightweight yet durable aluminum construction offers excellent mechanical strength, corrosion resistance, and heat resistance while reducing the overall equipment weight. With its compact design and easy installation, the CH005Q is an ideal fixture accessory for automated electronics manufacturing, improving operational stability, production efficiency, and soldering accuracy.

Key Features

High-Strength Aluminum Construction

Manufactured from premium aluminum alloy for excellent durability, corrosion resistance, and lightweight performance.

Adjustable Clamping Range

Center distance is adjustable from 40 mm to 235 mm, providing flexible positioning for different soldering applications.

Stable Fixture Support

Securely holds the soldering handle to maintain consistent positioning and improve soldering precision.

Compatible withCH01 & CH01A Handles

Designed specifically for CH01 and CH01A heating handles equipped with WSP150 heating elements.

Precision Positioning

Improves soldering accuracy by minimizing movement during automated production.

Lightweight Design

Approximately 1 kg in weight for easy installation without adding excessive load to automation equipment.

Easy Installation

Simple mounting structure allows quick installation and replacement.

Reliable Industrial Performance

Designed for continuous operation in automated soldering production environments.

Improved Production Efficiency

Stable fixture positioning reduces manual adjustment and increases production consistency.

Long Service Life

Durable aluminum construction ensures reliable performance under long-term industrial use.

Technical Specifications

Product Advantages

Accurate Fixture Positioning

Provides stable support for soldering handles, improving solder joint consistency and production quality.

Flexible Adjustment

Wide adjustment range accommodates different soldering equipment layouts and workpiece sizes.

Durable Aluminum Structure

Lightweight aluminum alloy combines high strength with excellent corrosion resistance for long-term industrial use.

Easy Equipment Integration

Compatible with CH01 and CH01A heating handles, allowing convenient installation on automated soldering systems.

Enhanced Production Stability

Reduces vibration and movement during soldering operations, improving process repeatability.

Compact & Lightweight

Optimized design minimizes equipment load while maintaining excellent structural rigidity.

Reduced Maintenance

Simple mechanical structure requires minimal maintenance and supports long service life.

Suitable for Automated Manufacturing

Designed for high-precision electronics production, robotic soldering, and automated assembly lines.

Working Principle

The CH005Q Adjustable Soldering Machine Fixture Clamp securely mounts and supports the soldering handle during automated soldering operations. By providing a stable mechanical connection between the soldering handle and the automation system, it maintains precise positioning throughout the soldering process.

Its adjustable center distance allows users to adapt the fixture to different workpieces and equipment layouts, while the rigid aluminum construction minimizes vibration and positional deviation. This ensures consistent soldering accuracy, improves production efficiency, and enhances the overall stability of automatic soldering systems.

Applications

Automatic soldering machines

Robotic Soldering Systems

PCB Assembly Lines

SMT Production Equipment

Electronics Manufacturing

Automotive Electronics Assembly

Communication Equipment Production

Medical Electronics Manufacturing

Industrial automation equipment

Electronic Product Assembly

Why Choose Shenzhen Chuera Electronics Technology Co., Ltd.

Shenzhen Chuera Electronics Technology Co., Ltd. is a professional manufacturer specializing in Intelligent Soldering Equipment, Automatic soldering accessories, ESD protection systems, smoke purification equipment, and industrial electronic tools. Our products are engineered to deliver precision, reliability, and long-term performance for modern electronics manufacturing.

Backed by advanced manufacturing facilities and experienced engineering teams, we provide OEM and ODM services to meet diverse customer requirements. Our commitment to quality, innovation, and technical support enables customers worldwide to improve production efficiency and product quality.

FAQ

1. What is the CH005Q Fixture Clamp used for?

It is designed to securely hold soldering handles on automatic soldering machines and robotic soldering systems.

2. Which soldering handles are compatible?

The CH005Q is compatible with CH01 and CH01A heating handles using the WSP150 heating element.

3. What material is the fixture made from?

It is manufactured from high-quality aluminum alloy for lightweight strength and corrosion resistance.

4. What is the adjustable clamping range?

The center distance can be adjusted from 40 mm to 235 mm, allowing flexible installation.

5. Is the fixture suitable for industrial automation?

Yes. It is specifically designed for automated soldering equipment and continuous production environments.

6. Does the clamp improve soldering accuracy?

Yes. Stable positioning helps reduce movement and ensures consistent soldering quality.

7. Is installation easy?

Yes. The fixture features a simple adjustable mounting design for quick installation and replacement.

8. What industries commonly use this fixture?

It is widely used in electronics manufacturing, PCB assembly, SMT production, automotive electronics, medical devices, and industrial automation.

9. Does Shenzhen Chuera Electronics Technology Co., Ltd. provide OEM and ODM services?

Yes. We offer customized manufacturing, branding, packaging, and product configuration services.

10. Why choose the CH005Q Adjustable Soldering Machine Fixture Clamp?

The CH005Q combines a durable aluminum alloy structure, flexible adjustment, stable positioning, and excellent compatibility with CH01/CH01A heating handles, making it an ideal fixture solution for high-precision automatic soldering applications.
