Product Overview

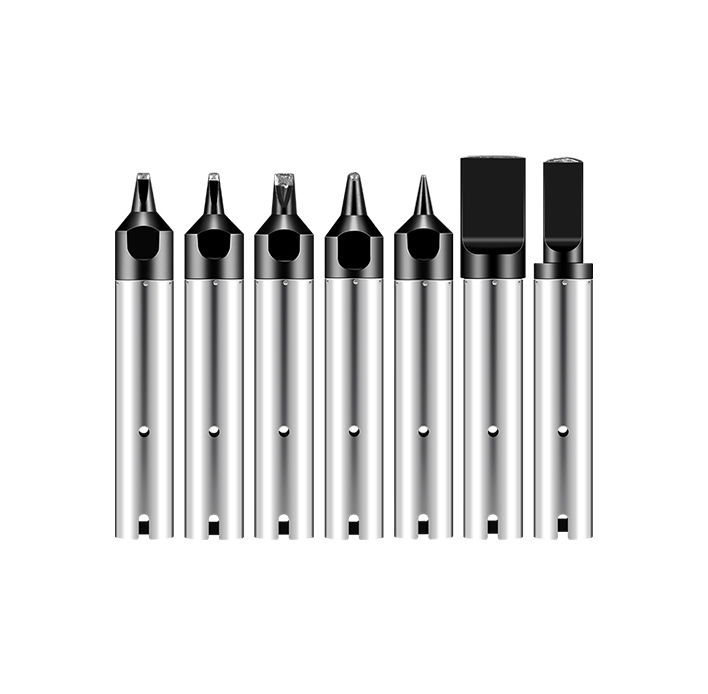

The 911G High-Frequency Temperature Controlled Soldering Iron Tips are high-performance soldering consumables designed for Automatic soldering machines and industrial electronic manufacturing. These tips are engineered with high-purity oxygen-free copper as the core material, combined with advanced electroplating technology to ensure fast thermal response, stable temperature control, and long service life under continuous production conditions.

The surface plating process is one of the most critical factors affecting soldering tip quality. The 911G series adopts a precisely controlled iron plating layer thickness. If the coating is too thin, it will reduce corrosion resistance; if too thick, it will negatively affect heat transfer efficiency. Through optimized plating technology and stable electroplating control, the 911G ensures a perfect balance between durability and thermal conductivity.

Designed for high-frequency temperature-controlled soldering systems, the 911G supports working temperatures ranging from 200°C to 600°C and is compatible with 150W and 200W high-power Soldering equipment. It is widely used in automatic soldering machines where stable temperature performance and rapid heat transfer are essential for production quality.

To meet industrial production demands, each batch undergoes strict quality control and multiple inspection processes, ensuring consistent dimensions, uniform plating thickness, and reliable performance across all production environments.

Key Features

High-Purity Oxygen-Free Copper Core

Ensures excellent thermal conductivity for fast heating and stable temperature performance.

Advanced Electroplating Technology

Improved coating density enhances corrosion resistance and solder wetting performance.

Optimized Plating Thickness Control

Balanced coating structure ensures both durability and efficient heat transfer.

High-Temperature Resistance

Supports operating temperatures from 200°C to 600°C, suitable for lead-free soldering.

Compatible with High-Power Systems

Designed for 150W and 200W automatic soldering machines.

Stable Industrial Performance

Maintains consistent performance during long-term continuous operation.

Precision Manufacturing Process

CNC machining ensures dimensional accuracy and installation consistency.

Strict Quality Inspection

Each batch undergoes multiple quality tests to ensure stability and reliability.

Excellent Anti-Corrosion Performance

Special surface treatment improves resistance to oxidation and wear.

Designed for Automation

Suitable for high-speed automatic soldering production environments.

Technical Specifications

Product Advantages

Excellent Thermal Conductivity

High-purity copper ensures fast heat transfer and stable temperature response.

Balanced Coating Technology

Controlled plating thickness provides the best balance between durability and soldering performance.

Long Service Life

Advanced anti-corrosion treatment significantly extends operational lifespan.

High Stability in Production

Maintains consistent soldering performance in continuous industrial use.

Suitable for High-Power Applications

Fully compatible with 150W and 200W high-frequency soldering systems.

Reduced Maintenance Frequency

Durable structure reduces replacement cycles and production downtime.

High Manufacturing Consistency

Strict production control ensures uniform quality across all batches.

Reliable Industrial Use

Designed specifically for demanding electronic manufacturing environments.

Working Principle

The 911G soldering iron tip functions as the final heat transfer component in high-frequency soldering systems. Heat generated by the soldering equipment is transmitted through the oxygen-free copper core, which rapidly conducts thermal energy to the working tip.

The advanced electroplated surface layer protects the copper substrate from oxidation while maintaining efficient heat transfer. During operation, solder melts quickly upon contact with the heated tip surface and is precisely applied to electronic components or PCB pads, ensuring stable and accurate solder joints in automated production.

Applications

Automatic Soldering Machines

PCB Assembly Production Lines

SMT Manufacturing

Electronics Assembly

Automotive Electronics

Communication Equipment Manufacturing

Medical Electronics Production

Industrial Automation Systems

Precision Repair Stations

High-Volume Electronic Manufacturing

Why Choose Shenzhen Chuera Electronics Technology Co., Ltd.

Shenzhen Chuera Electronics Technology Co., Ltd. is a professional manufacturer specializing in Intelligent Soldering Equipment, Automatic soldering accessories, ESD control systems, and industrial electronic tools. With years of production experience and advanced manufacturing technology, we provide reliable and high-performance soldering solutions for global customers.

Our strict quality control system, precision machining capabilities, and strong R&D support allow us to deliver stable, durable, and customizable products that meet the requirements of modern electronics manufacturing industries.

FAQ

1. What is the 911G soldering iron tip used for?

It is used in automatic soldering machines for precision electronic assembly and industrial soldering.

2. What material is used in the 911G tip?

It is made of high-purity oxygen-free copper with multi-layer electroplating.

3. What is the operating temperature range?

The working temperature range is 200°C to 600°C.

4. What power systems is it compatible with?

It is compatible with 150W and 200W high-frequency soldering systems.

5. What is the benefit of oxygen-free copper?

It provides excellent thermal conductivity for fast and stable heating performance.

6. Why is plating thickness important?

Proper plating thickness ensures a balance between heat transfer efficiency and corrosion resistance.

7. Is it suitable for lead-free soldering?

Yes, it is designed for modern lead-free soldering applications.

8. How is product consistency ensured?

Each batch undergoes multiple inspections to ensure dimensional accuracy and coating uniformity.

9. Can it be used in automatic production lines?

Yes, it is specifically designed for automated soldering systems.

10. Why choose Chuera soldering tips?

They offer stable quality, precise manufacturing, long service life, and reliable performance for industrial production.
