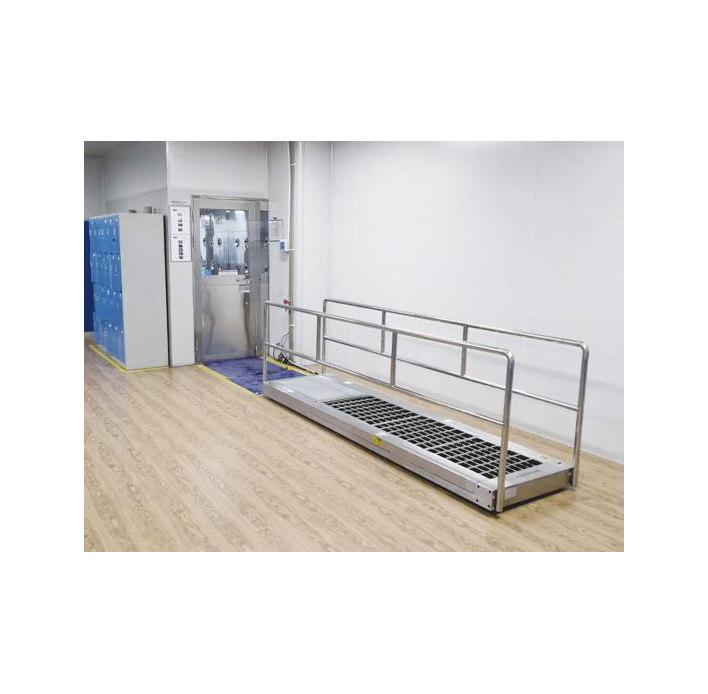

Industrial Automatic Shoe Sole Cleaning Machine
The Chuera Industrial Automatic Shoe Sole Cleaning Machine is a professional footwear cleaning system designed to control dirt, dust, and contaminants carried into industrial production environments. It is suitable for factory entrances, cleanroom access points, personnel walkways, and production workshop passages where maintaining floor cleanliness is essential.
During daily operations, footwear soles and wheels can carry contaminants from surrounding areas into production facilities. Traditional manual cleaning methods require additional labor and may deliver inconsistent results. The automatic shoe sole cleaning system provides an efficient solution by combining mechanical brush cleaning, automatic water drainage, and intelligent control technology.
The equipment is designed to achieve a cleaning efficiency of over 90% under suitable operating conditions, helping reduce contamination transfer and minimize the need for frequent manual floor cleaning.
Key Features and Advantages
1. High-Efficiency Automatic Sole Cleaning
The automatic brush cleaning system effectively removes dust, dirt, and other contaminants from footwear soles. Its cleaning mechanism provides consistent contact with the sole surface, reducing the amount of contamination carried into production areas.
2. Intelligent Automatic Control
The system features intelligent sensing and automatic operation. When personnel enter the cleaning area, the equipment activates the cleaning process and controls water drainage according to the preset program.
3. Durable 304 Stainless Steel Construction
The machine features a robust stainless steel structure designed for industrial environments. The main body uses 304 stainless steel, providing excellent corrosion resistance, structural strength, and long-term durability.
4. Continuous Personnel Passage
The cleaning area is designed to allow employees to pass through without stopping, helping maintain normal personnel movement. The effective cleaning zone can reach 1.1 meters, depending on the configuration.
5. Reduced Cleaning and Maintenance Costs
By removing contaminants before they enter production areas, the system helps reduce floor cleaning frequency, cleaning material consumption, and manual maintenance requirements.
6. Automatic Water Management
The integrated drainage system collects and discharges wastewater generated during cleaning. Water collection tanks and drainage structures help maintain stable cleaning performance.
7. Easy Maintenance and Inspection
The removable cleaning modules, accessible water tanks, and intelligent control components simplify routine maintenance, inspection, and cleaning.
Available Models: P Series and G Series
P Series Shoe Sole Cleaning Machine
The P Series is designed for removing contaminants from footwear soles, particularly in areas where fine dust and small particles must be controlled.
It is suitable for controlling particles with a diameter of approximately 2 mm or smaller and is commonly installed at production workshop entrances, personnel access points, and controlled industrial passageways.
The P Series uses a brush-based cleaning mechanism to remove dirt from footwear soles while supporting efficient personnel movement.
G Series Shoe Sole Cleaning Machine
The G Series is designed for applications involving larger particles and more demanding industrial cleaning conditions.
It is suitable for removing contaminants with a diameter of approximately 7 mm or smaller, making it appropriate for areas where larger debris may accumulate on footwear soles.
The G Series can be installed at factory entrances, personnel passageways, workshop access points, and other industrial locations requiring effective contamination control.
Technical Specifications
Product Type: Industrial Automatic Shoe Sole Cleaning Machine
Available Series: P Series / G Series
Cleaning Method: Automatic Brush Cleaning
Main Body Material: 304 Stainless Steel
Reference Model: P18
Reference Dimensions: 1840 × 765 × 135 mm
Effective Cleaning Area: Up to 1.1 m
Cleaning Efficiency: Over 90% under suitable operating conditions
Personnel Passage: Continuous Walk-Through Operation
Control System: Intelligent Automatic Control
Water Management: Automatic Water Supply and Drainage Configuration
Water Pressure Compatibility: Approximately 50–100 Pa (as stated in the supplied specifications; unit to be confirmed)
P Series Particle Cleaning Range: Approximately 2 mm or smaller
G Series Particle Cleaning Range: Approximately 7 mm or smaller
Installation Locations: Factory Entrances, Cleanroom Access Areas, Personnel Walkways, Production Workshop Passages
Intelligent Control System
The Chuera Automatic Shoe Sole Cleaning Machine incorporates an intelligent control system to simplify operation and improve cleaning reliability.
Automatic Water Drainage Control
The system supports programmed drainage based on preset operating conditions, helping manage wastewater generated during cleaning.
Intelligent Water Level Monitoring
A probe-type water level sensor continuously monitors the internal water level and helps prevent overflow.
Integrated Circuit Control
The integrated circuit board supports automatic cleaning operation and coordinated control of essential system components.
Quick-Connect Electrical Design
Quick-connect electrical interfaces allow easier equipment inspection, component replacement, and maintenance.
Stainless Steel Body Structure
The machine body is engineered for industrial durability and stable operation.
304 Stainless Steel Construction
The main structure is manufactured using 304 stainless steel for improved corrosion resistance and long-term reliability.
Reinforced Structural Frame
The body frame uses 304 stainless steel square tubing with a wall thickness of 2 mm or greater, providing mechanical strength and structural stability.
Precision Welding
The stainless steel body is assembled using argon arc welding technology to provide strong and reliable welded joints.
Water-Resistant Design
The machine structure is designed to withstand routine exposure to water during cleaning operations.
Cleaning and Brush System
The cleaning mechanism is designed to provide consistent brush contact and efficient contaminant removal.
Removable Cleaning Modules
The removable cleaning modules allow convenient access for routine inspection and maintenance. Their independent structure helps minimize areas where contaminants can accumulate.
Automatic Brush Cleaning
The rotating brush mechanism cleans footwear soles as personnel pass through the equipment, helping remove particles and dirt from the sole surface.
Integrated Brush and Water Cleaning
The brushes work together with the water system to remove accumulated contaminants and transport wastewater toward the collection and drainage areas.
Automatic Brush Protection
The equipment includes a brush protection function that automatically stops the brush motor when the cleaning module is removed, improving operational safety.
Efficient Water Circulation and Drainage
The automatic water management system supports effective contaminant collection and wastewater discharge.
Inclined Water Tank Design
The inclined tank structure directs wastewater toward the drainage outlet, reducing water accumulation and improving drainage efficiency.
Integrated Water Collection
The collection tank gathers wastewater generated during the cleaning process and helps maintain a controlled cleaning environment.
Leakage Collection Tank
A dedicated leakage collection tank helps capture water from the cleaning area and reduce the risk of uncontrolled water accumulation.
Foreign Object Collection
The system includes a debris collection structure that helps prevent larger particles and foreign objects from entering the drainage pipeline and causing blockages.
Applications of Industrial Shoe Sole Cleaning Machines
1. Cleanroom Entrances
Installed at cleanroom access points to reduce the transfer of dust and contaminants from footwear into controlled working environments.
2. Electronics Manufacturing Workshops
Suitable for electronics assembly areas and precision production facilities where reducing particle contamination is important.
3. Industrial Factory Entrances
Provides automatic footwear cleaning for employees entering manufacturing workshops from surrounding areas.
4. Personnel Access Passageways
Can be integrated into employee entrance corridors and walkways to provide cleaning during normal movement.
5. Production Workshop Corridors
Helps reduce the spread of dust and dirt between different workshop sections.
6. Logistics and Material Handling Areas
Suitable for selected industrial passageways where contamination from footwear and compatible wheels needs to be controlled.
Why Choose an Automatic Shoe Sole Cleaning System?
An automatic shoe sole cleaning system offers a practical method for reducing contamination transfer in industrial facilities.
Unlike disposable adhesive floor mats, which require frequent replacement, the automatic cleaning system uses mechanical brushes and water-based cleaning to remove contaminants from footwear soles.
Its continuous walk-through design allows employees to complete the cleaning process without stopping, helping maintain workflow efficiency.
The stainless steel structure, intelligent control system, and accessible cleaning modules support long-term industrial use while reducing routine cleaning and maintenance requirements.
Frequently Asked Questions (FAQ)
Q1: What is an industrial automatic shoe sole cleaning machine?
An industrial automatic shoe sole cleaning machine is a cleaning system designed to remove dust, dirt, and contaminants from footwear soles before personnel enter production workshops, cleanrooms, and controlled industrial areas.
Q2: How does the automatic shoe sole cleaning machine work?
The machine uses rotating brushes and a water-assisted cleaning mechanism to remove contaminants from footwear soles. The integrated drainage system collects wastewater, while intelligent controls manage the cleaning process.
Q3: What is the difference between the P Series and G Series?
The P Series is designed for finer particle cleaning, with a stated particle range of approximately 2 mm or smaller. The G Series is designed for larger particles, with a stated range of approximately 7 mm or smaller.
Q4: What material is used for the machine body?
The machine body is manufactured using 304 stainless steel, providing corrosion resistance, mechanical strength, and durability for industrial applications.
Q5: Can employees walk through the machine without stopping?
Yes. The machine is designed for continuous walk-through cleaning, allowing personnel to pass through the cleaning area without stopping under normal operating conditions.
Q6: Does the machine have an automatic drainage system?
Yes. The equipment supports automatic drainage, water collection, and intelligent water level monitoring to help manage wastewater during operation.
Q7: What is the cleaning efficiency of the machine?
According to the supplied product information, the cleaning system can achieve over 90% cleaning efficiency under suitable operating conditions. Actual results depend on footwear type, contamination level, and operating conditions.
Q8: Where can the shoe sole cleaning machine be installed?
The machine can be installed at factory entrances, cleanroom access points, personnel walkways, production workshop corridors, and other industrial areas requiring footwear contamination control.
Q9: Is the cleaning system easy to maintain?
Yes. The equipment features removable cleaning modules, accessible water tanks, quick-connect electrical interfaces, and automatic brush protection functions to simplify inspection and maintenance.
Q10: Can the machine reduce the need for adhesive floor mats?
Yes. By removing contaminants directly from footwear soles, the automatic cleaning system can reduce reliance on disposable adhesive floor mats and help lower associated replacement and maintenance costs.
