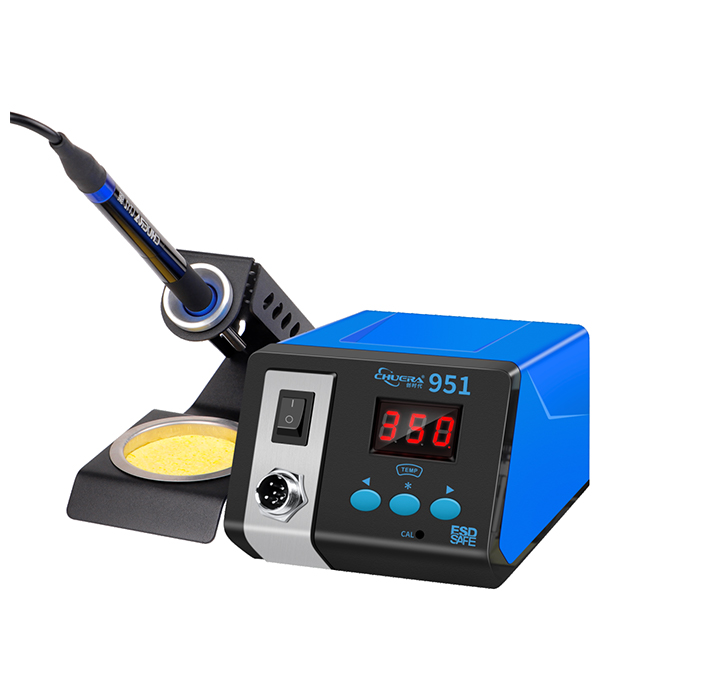

The CHUERA-951 combines a replaceable T12 cartridge with digital temperature control for lead-free soldering. The heating element and soldering tip form one integrated assembly, making the cartridge a central part of both temperature response and routine servicing.

The station is suited to manual circuit board assembly, component replacement, wire tinning and connector soldering. Its separate handpiece rest and compact control unit can be arranged around the working area, with temperature settings accessible from the front panel.

An Integrated Heater and Tip, Not Two Separate Parts

The CHUERA-951 uses a T12 cartridge that combines the heating element and working tip. This integrated arrangement supports fast heat-up and temperature recovery as the tip moves between solder joints.

Temperature response matters when the tip repeatedly transfers heat into leads, pads or terminals. The heater-and-tip assembly is designed to respond to these changes, helping the station maintain the selected working condition during use.

The plug-in construction also simplifies replacement. Instead of pairing a separate tip with an independent heating core, the operator selects a compatible T12 cartridge with the required tip profile. Replacement should be carried out with the station switched off and the cartridge allowed to cool.

A Numerical Setting Across a 50–550°C Range

The temperature can be adjusted from 50 to 550°C using the front-panel buttons. Settings increase or decrease in 1°C increments, providing a numerical reference when moving between soldering tasks.

A three-digit display presents the temperature reading, and the station supports switching between Celsius and Fahrenheit. There is no need to estimate a setting from the position of a rotary dial.

The temperature range gives the operator room to select a setting appropriate to the soldering process. The working temperature should be chosen together with the cartridge profile and joint size; the highest available setting is not necessary for every application.

Digital Correction for Temperature Offsets

Temperature calibration is handled digitally. When a reference measurement identifies an offset, the correction can be made through the station’s calibration function.

This is separate from normal working-temperature adjustment. Selecting a temperature establishes the operating setting, while calibration corrects an identified difference between the station reading and a reference measurement.

The specified temperature stability is ±2°C under no-load conditions. The 1°C adjustment increment describes setting resolution, not an independent claim of ±1°C tip accuracy.

Sleep Support During Pauses in Soldering

A sleep function is included as standard to help extend the service life of the integrated heating element and soldering tip.

This feature supports work that includes pauses for component positioning, inspection or preparation between joints. It complements the cartridge design by providing a standby function when the iron is not actively being used.

Sleep mode is part of the CHUERA-951’s operating features; temperature adjustment, calibration and unit selection remain available through the station’s digital controls.

ESD Design with Defined Electrical Values

The CHUERA-951 incorporates an ESD design for electronics soldering. Its specified soldering iron resistance to ground is less than 2 Ω, and the soldering iron potential to ground is less than 2 mV.

The heating element operates at 24 V, while maximum power for the complete machine is 75 W. These values describe different parts of the system: 24 V is the heater’s working voltage, and 75 W is the maximum machine power.

Input configurations are listed as AC 220 V, 50 Hz and AC 110 V, 60 Hz. The station should be selected and connected according to the voltage marked on the individual unit.

T12 Components and a Separate Handpiece Rest

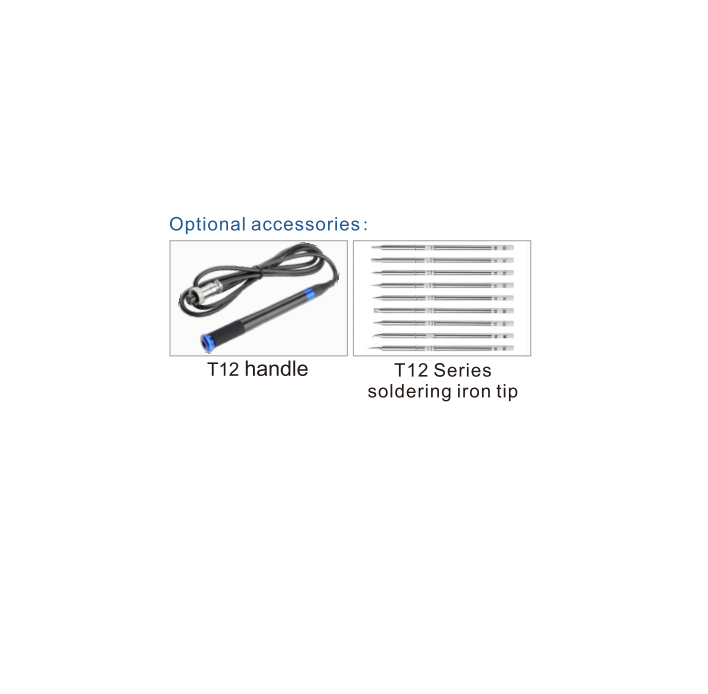

The optional accessory range includes a T12 handle and T12 Series soldering tips. Different cartridge profiles allow the working end to be matched to the available space and contact area at the joint.

A suitable profile helps the tip contact the soldering point directly. Narrower profiles can reach restricted areas, while broader contact faces can suit larger accessible joints. Compatibility should be based on the listed T12 system rather than the appearance of a cartridge alone.

The separate iron holder supports the handpiece between operations and includes a sponge tray for tip cleaning. It can be positioned independently of the control unit, keeping the iron within reach without obstructing the display or adjustment buttons.

CHUERA-951 Model Data

Control and Heating

Temperature Range: 50–550°C, adjustable
Temperature Setting Increment: 1°C
Temperature Stability, No Load: ±2°C
Temperature Correction: Digital calibration
Temperature Units: Celsius/Fahrenheit switching
Heating Assembly: Integrated plug-in heater-and-tip cartridge
Sleep Function: Included as standard

Electrical Characteristics

Operating Voltage Options: AC 220 V, 50 Hz / AC 110 V, 60 Hz
Maximum Machine Power: 75 W
Heating Element Working Voltage: 24 V
Soldering Iron Resistance to Ground: <2 Ω
Soldering Iron Potential to Ground: <2 mV
Design Feature: ESD design

Dimensions and Packaging

Station Dimensions: 141 × 112 × 86 mm, L × W × H
Listed Product Weight: 2 kg
Individual Package Size: 265 × 205 × 118 mm
Carton Size: 555 × 425 × 375 mm
Packing Quantity: 12 sets per carton

FAQ

What distinguishes the CHUERA-951 from a station with a separate heating core and tip?

The CHUERA-951 uses an integrated T12 cartridge. The heater and soldering tip form one replaceable assembly, supporting responsive heating and simplifying cartridge replacement.

Is this model intended for lead-free soldering?

Yes. The CHUERA-951 is designed for lead-free soldering and provides an adjustable 50–550°C range. The working setting and tip profile should be matched to the solder alloy, component and joint.

Which replacement handle and tips are listed for the station?

The optional components are a T12 handle and T12 Series soldering tips. The integrated cartridge format differs from systems that use a separate heating core and removable outer tip.

Does the station include sleep mode?

Yes. A sleep function is included as standard to help extend heater and soldering tip life.

Can the temperature be calibrated without a mechanical adjustment?

Yes. The station uses digital temperature correction rather than a rotary calibration potentiometer. Calibration should be based on a suitable reference temperature measurement.

Does 1°C adjustment mean the temperature stays within ±1°C during soldering?

No. The 1°C value is the setting increment. The specified no-load temperature stability is ±2°C, while temperature response during soldering depends on heat transfer into the joint.

Can one unit automatically switch between 110 V and 220 V?

The listed power options are AC 110 V at 60 Hz and AC 220 V at 50 Hz. Automatic input-voltage switching is not specified, so the supply must match the rating on the individual station.
