The CHUERA-205 is designed for lead-free bench soldering, combining high-frequency heating with support for larger soldering tips. Its 150 W maximum instantaneous power rating and 50–600°C adjustment range provide flexibility when selecting a working temperature and tip for the joint.

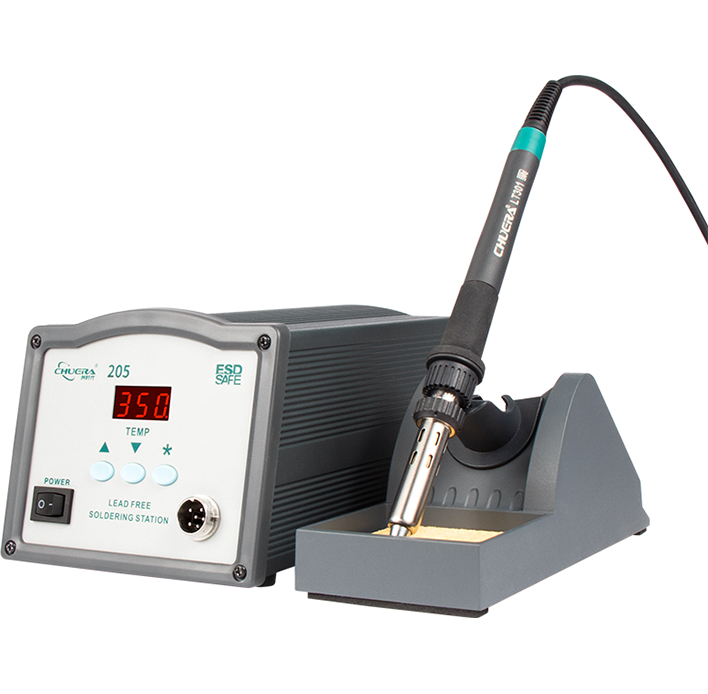

The front panel keeps the digital display, temperature buttons, power switch and handpiece connector together. A separate iron holder allows the handpiece to sit within reach without blocking the controls.

150 W Heating with Support for Larger Tips

High-frequency eddy current heating provides fast warm-up and temperature recovery. As the tip transfers heat into a solder joint, the heating system restores the working temperature for continued use.

The CHUERA-205 supports a maximum conventional soldering tip size of 8 mm. This expands the choice of contact sizes for terminals, connectors and other accessible soldering points where a small, narrow tip may not provide the preferred contact area.

The listed 500 Series soldering tips include pointed, flat and angled profiles. Operators can choose a shape that fits the joint and available working space, rather than relying on one tip for every connection.

The 150 W specification refers to maximum instantaneous power, not a stated continuous power rating.

Temperature Settings That Can Be Locked in Place

Working temperatures are selected with the front-panel buttons across a 50–600°C range. The numerical display provides a clear temperature reference during adjustment and operation.

Once a working setting has been established, the password temperature lock helps prevent unintended or unauthorized changes. This is useful for repeat soldering work where the selected temperature needs to remain consistent between operations.

The lock controls access to temperature adjustment. It does not replace temperature checks, tip maintenance or selection of the correct working setting for the soldering task.

Digital Calibration and Automatic Idle Functions

The station uses microcomputer control and supports digital temperature calibration. When a reference measurement identifies a temperature offset, the correction can be applied through the calibration function.

Calibration is separate from normal temperature selection. The working setting determines the temperature chosen for the task; calibration corrects an identified difference against a reference measurement.

Both automatic sleep and automatic shutdown are included. These functions manage standby and shutdown during periods of non-use, complementing the temperature controls used while soldering. No fixed delay or adjustable timing range is specified in the supplied product data.

A Plug-In Heating Core for Routine Servicing

The heating core uses a plug-in design, making it a separate service component rather than an inseparable part of the complete station.

The listed replacement option is a 150 W plug-in heating core. Using the correct component reference helps distinguish it from heating elements intended for other soldering station models.

The soldering tips are also replaceable. The heating core and tip are listed separately, allowing maintenance requirements to be addressed according to the component involved.

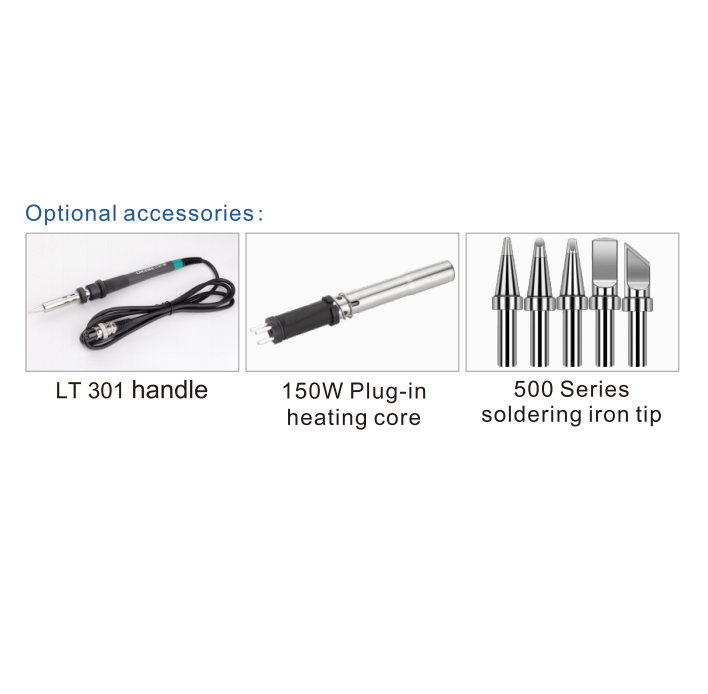

Matching Handpiece and Tip Options

LT 301 Handle

The LT 301 is the optional handpiece listed for the CHUERA-205. It is supplied as a handle-and-cable assembly with a connector for attachment to the station. The illustrated handpiece has a cushioned grip and rests in a separate holder between soldering operations.

150 W Plug-In Heating Core

This is the heating component listed for the model. Its plug-in construction simplifies removal and replacement during servicing.

500 Series Soldering Tips

The optional tip range includes several working profiles. A pointed profile provides access to a restricted soldering area, while a broader flat face provides a different contact surface for larger accessible joints.

These items are identified as optional accessories. The illustrated selection should not be treated as a complete set of parts included with every station.

Front-Facing Controls and an Independent Iron Holder

The station measures 195 × 130 × 100 mm, with the display and operating controls facing the user. The separate holder can be positioned alongside the control unit to suit the operator’s working hand and bench arrangement.

A sponge tray is incorporated into the holder, keeping the tip-cleaning area close to the resting position. The handpiece cable connects at the front of the station, so sufficient clearance should be left for comfortable movement during soldering.

The listed product weight is 4.66 kg.

CHUERA-205 Technical Specifications

Model: CHUERA-205
Product Type: High-power lead-free soldering station
Heating Technology: High-frequency eddy current heating
Operating Voltage: AC 220 V, 50 Hz
Operating Temperature Range: 50–600°C
Maximum Instantaneous Power: 150 W
Temperature Stability, No Load: ±2°C
Temperature Adjustment: Push-button control
Temperature Correction Method: Digital calibration
Temperature Lock: Password protected
Automatic Functions: Sleep and shutdown
Maximum Conventional Tip Size: 8 mm
Soldering Iron Resistance to Ground: <2 Ω
Soldering Iron Potential to Ground: <2 mV
Station Dimensions: 195 × 130 × 100 mm, L × W × H
Listed Product Weight: 4.66 kg

The ±2°C value describes temperature stability under no-load conditions. It is not a guarantee of the same temperature variation while the tip is transferring heat into every solder joint.

Individual Packaging and Carton Details

Individual Package Size: 300 × 285 × 145 mm
Outer Carton Size: 595 × 320 × 460 mm
Packing Quantity: 6 sets per carton

FAQ

What is the largest soldering tip size listed for the CHUERA-205?

The stated maximum conventional tip size is 8 mm. The optional tips listed for this station belong to the 500 Series.

Is the 150 W specification a continuous power rating?

No. The specification identifies 150 W as maximum instantaneous power. A separate continuous rated-power value is not provided.

Can the temperature setting be protected during production work?

Yes. The password temperature lock helps prevent unintended or unauthorized adjustments after the working setting has been selected.

Does this model include both sleep and shutdown functions?

Yes. Automatic sleep and automatic shutdown are included alongside microcomputer control and digital temperature calibration.

Which components should be specified for replacement or additional accessories?

The listed options are the LT 301 handle, 150 W plug-in heating core and 500 Series soldering tips. These references distinguish the matching components for the CHUERA-205.

What power supply does the station require?

The specified input is AC 220 V at 50 Hz. The available supply should match the rating shown on the individual station.
