Portable Surface Resistance Measurement

CHUERA-030B Vertical Surface Resistance Tester is designed for checking the electrical resistance characteristics of surfaces in production and inspection environments. The unit combines resistance measurement with temperature and humidity monitoring, giving users additional environmental information during testing.

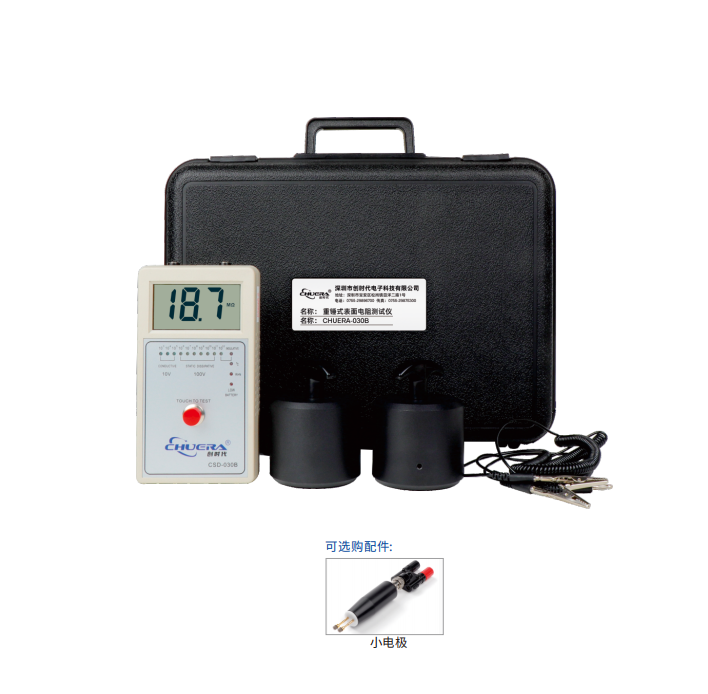

Its handheld meter and dedicated testing accessories are supplied in a protective carrying case, making the instrument convenient for laboratory work, factory inspection, quality control, and on-site measurements.

Wide Measurement Coverage

The CHUERA-030B supports a resistance measurement range of 10³–10¹² Ω. This broad range allows the instrument to be used for different surface resistance inspection requirements rather than being limited to a narrow resistance interval.

The digital display provides a direct reading during measurement, helping operators check the measured value without complicated interpretation.

Integrated Environmental Readings

In addition to resistance measurement, the tester can display temperature and humidity information. Environmental conditions can affect electrostatic and surface resistance measurements, so having these values available during inspection provides useful reference information for testing records.

The specified operating humidity range is 0%–100% RH, while the operating temperature range is 0°C–100°C.

Simple Handheld Operation

The instrument is designed with a straightforward handheld format for routine measurements. Its compact dimensions of approximately 180 × 95 × 40 mm allow it to be carried between different inspection locations.

The supplied test accessories provide the necessary contact components for surface resistance measurement, while the carrying case helps keep the meter and accessories together during transportation and storage.

Low-Battery Indication

The tester operates with a DC 9V power supply and includes a low-battery indicator. When the battery voltage drops below the specified level, the indicator provides a reminder so users can replace or recharge the power source as needed.

Technical Specifications

Model: CHUERA-030B

Working Voltage: DC 9V

Instrument Dimensions: 180 × 95 × 40 mm

Resistance Measurement Range: 10³–10¹² Ω

Operating Time: Approximately 40 hours

Accuracy: ±10%

Weight: Approximately 7 kg

Operating Temperature: 0°C–100°C

Operating Humidity: 0%–100% RH

Display: Digital display

Optional Accessory: Small Electrode

Testing Applications

CHUERA-030B can be used for surface resistance inspection in electronics manufacturing, ESD-controlled work areas, laboratories, production workshops, quality inspection departments, and other environments where surface electrical characteristics need to be evaluated.

It can be used to check work surfaces, materials, equipment surfaces, and other applicable objects according to the user's testing procedure.

Product Configuration

The standard configuration includes the CHUERA-030B testing instrument and dedicated testing accessories packed in a protective carrying case. An optional small electrode is also available for specific measurement requirements.

The actual accessory configuration can be selected according to the intended testing method and application requirements.

FAQ

What is the CHUERA-030B designed to measure?

The CHUERA-030B is designed for measuring surface resistance and can also provide temperature and humidity readings.

What is the resistance measurement range?

The specified measurement range is 10³–10¹² Ω.

Is the instrument suitable for portable testing?

Yes. The handheld meter and carrying case are designed to make transportation between different testing locations more convenient.

Does the tester display temperature and humidity?

Yes. Temperature and humidity are included as additional measurement information.

What power supply does the CHUERA-030B use?

The specified working voltage is DC 9V.

How long can it operate continuously?

The supplied specifications indicate an operating time of approximately 40 hours.

What is the specified accuracy?

The specified measurement accuracy is ±10%.

Is a small electrode available?

Yes. A small electrode is listed as an optional accessory.

Where can this tester be used?

It can be used in electronics factories, ESD-controlled areas, laboratories, quality inspection departments, and other suitable surface resistance testing environments.
