Product Overview

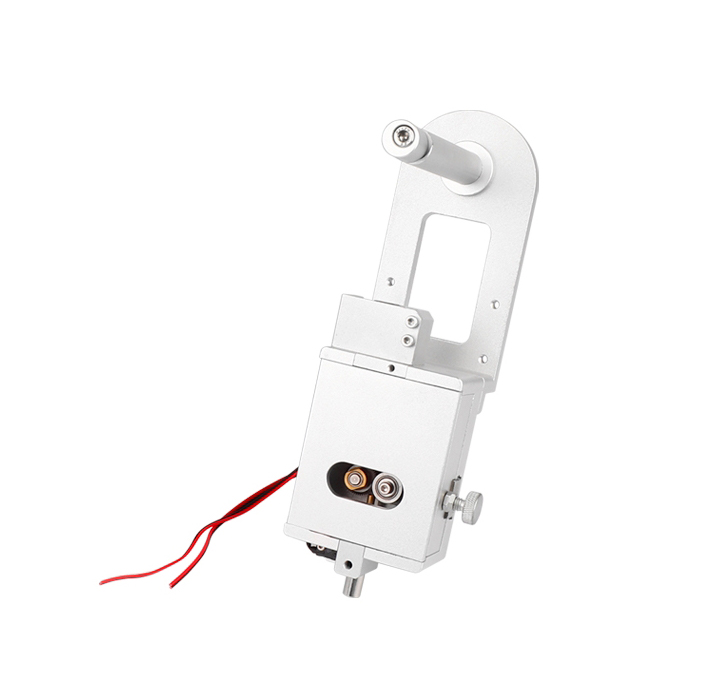

The CH101T Automatic Solder Wire Peeling Feeder is a precision solder wire processing accessory developed for automatic Soldering equipment, Robotic Soldering Systems, and intelligent soldering workstations. It is designed to accurately peel and feed solder wire before the soldering process, ensuring stable wire delivery and improving soldering consistency in automated production.

Driven by a high-performance stepper motor, the CH101T delivers highly accurate solder wire feeding and peeling with a positioning accuracy of ±0.1 mm, making it suitable for precision electronics manufacturing where repeatability is essential. The machine supports solder wire diameters from 0.4 mm to 1.4 mm, providing excellent compatibility with a wide range of soldering applications.

To meet different production requirements, the CH101T is equipped with multiple interchangeable peeling nozzles ranging from 0.6 mm to 1.8 mm, allowing users to quickly adapt to various solder wire specifications. Its compact structure, lightweight design, and stable mechanical transmission make installation simple while ensuring reliable long-term operation in continuous production environments.

The CH101T is an ideal accessory for manufacturers seeking improved solder feeding precision, reduced material waste, and enhanced automation efficiency.

Key Features

Precision Stepper Motor Drive

High-quality stepper motor ensures stable operation, accurate positioning, and reliable long-term performance.

High Feeding Accuracy

Achieves solder wire feeding accuracy of ±0.1 mm, ensuring consistent solder delivery during automatic soldering.

Precise Peeling Function

Provides accurate solder wire peeling for stable solder feeding and improved soldering quality.

Wide Wire Compatibility

Supports solder wire diameters from 0.4 mm to 1.4 mm, suitable for multiple production applications.

Multiple Peeling Nozzles

Compatible with 0.6 / 0.8 / 1.0 / 1.2 / 1.6 / 1.8 mm nozzles for flexible production requirements.

Compact Design

Small footprint allows convenient installation inside automatic soldering equipment.

Stable Mechanical Structure

Precision transmission system ensures smooth wire movement with minimal vibration.

Easy Equipment Integration

Suitable for integration with Automatic soldering machines, soldering robots, and customized production lines.

Reduced Material Waste

Accurate feeding and peeling help minimize solder wire consumption and improve production efficiency.

Reliable Continuous Operation

Designed for long production cycles with stable feeding performance.

Technical Specifications

Product Advantages

High Precision Processing

The ±0.1 mm feeding and peeling accuracy ensures excellent consistency for precision soldering applications.

Stable Stepper Motor Control

Stepper motor technology provides smooth wire movement with reliable positioning and repeatability.

Flexible Wire Compatibility

Supports a wide range of solder wire diameters and interchangeable nozzle sizes for versatile production.

Compact & Lightweight

Compact dimensions and only 1 kg weight make installation easy even in limited equipment space.

Improved Automation Efficiency

Automates solder wire preparation, reducing manual intervention and increasing production throughput.

Lower Material Consumption

Accurate wire control minimizes solder waste and improves manufacturing cost efficiency.

Reliable Industrial Performance

Designed for continuous operation in automated electronics manufacturing environments.

Easy Maintenance

Simple mechanical design allows convenient maintenance and fast replacement of nozzles.

Working Principle

The CH101T Automatic Solder Wire Peeling Feeder uses a precision stepper motor to drive the solder wire through an accurate feeding mechanism. During operation, the system precisely controls both the feeding distance and the peeling process according to preset parameters, ensuring consistent wire preparation before soldering.

The interchangeable peeling nozzle processes the solder wire with high precision while maintaining a peeling accuracy of ±0.1 mm. This stable control minimizes feeding errors, improves solder consistency, and supports reliable automatic soldering performance. The compact mechanical structure and precision transmission system enable smooth, continuous operation for high-volume production environments.

Applications

Automatic Soldering Machines

Robotic Soldering Systems

PCB Assembly Lines

SMT Production

Electronics Manufacturing

Automotive Electronics

Communication Equipment

LED Manufacturing

Medical Electronics

Industrial automation equipment

Why Choose Shenzhen Chuera Electronics Technology Co., Ltd.

Shenzhen Chuera Electronics Technology Co., Ltd. specializes in Intelligent Soldering Equipment, Automatic soldering accessories, ESD control products, smoke purification systems, and industrial electronic tools. We combine advanced manufacturing technology with strict quality control to provide high-performance products that improve automation efficiency and soldering precision.

Our experienced engineering team supports OEM and ODM customization, enabling customers worldwide to obtain reliable and cost-effective solutions tailored to their production requirements.

FAQ

1. What is the CH101T Automatic Solder Wire Peeling Feeder used for?

It is designed to accurately peel and feed solder wire for automatic soldering machines and robotic soldering systems.

2. What solder wire sizes are supported?

The machine supports solder wire diameters from 0.4 mm to 1.4 mm.

3. What is the feeding accuracy?

The feeding accuracy is ±0.1 mm, providing excellent positioning precision.

4. What nozzle sizes are available?

The standard nozzle sizes are 0.6, 0.8, 1.0, 1.2, 1.6, and 1.8 mm.

5. What type of motor does the CH101T use?

It uses a 20W precision stepper motor for stable and accurate wire feeding.

6. Is it suitable for continuous industrial production?

Yes. The precision mechanical structure is designed for reliable long-term operation.

7. Can it be integrated into automatic soldering systems?

Yes. It is specifically designed for integration with automatic soldering machines and robotic soldering equipment.

8. Does it help reduce solder consumption?

Yes. Accurate wire feeding and peeling minimize solder waste and improve production efficiency.

9. Does Shenzhen Chuera Electronics Technology Co., Ltd. provide OEM and ODM services?

Yes. We offer customized configurations, branding, and packaging solutions to meet customer requirements.

10. Why choose the CH101T Automatic Solder Wire Peeling Feeder?

The CH101T combines high-precision stepper motor control, ±0.1 mm accuracy, multiple nozzle compatibility, compact design, and reliable continuous operation, making it an ideal solder wire processing solution for modern automated electronics manufacturing.
