Product Overview

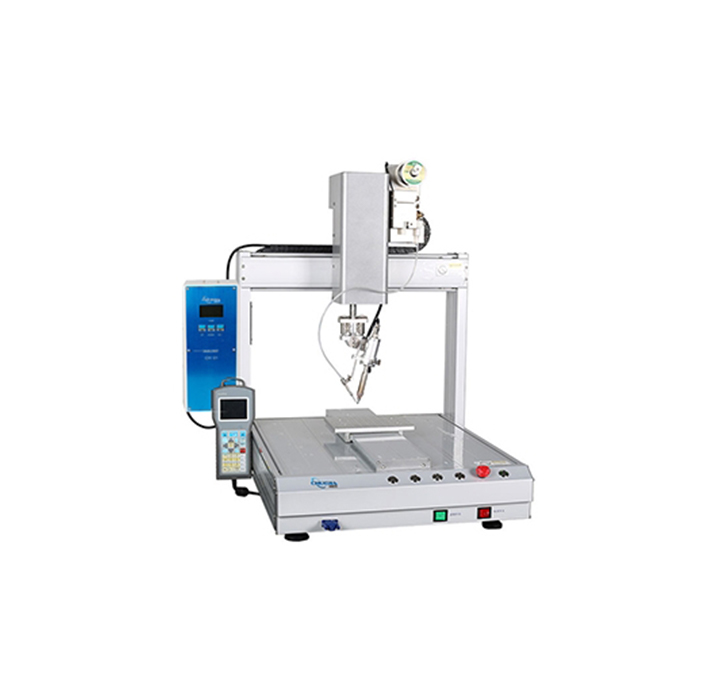

The 4-Axis Automatic Soldering Robot Machine is a high-precision industrial automation system designed for advanced soldering applications in modern electronics manufacturing. It enables fully automated soldering operations with multi-axis motion control, significantly improving production efficiency, consistency, and product quality.
This system supports multi-machine operation by a single operator, effectively reducing labor costs while improving manufacturing output. It is widely used in PCB assembly, electronic components soldering, and precision industrial production lines where high accuracy and stability are required.
With advanced motion control and intelligent programming capabilities, the system allows flexible soldering path design, real-time modification, and continuous operation, making it suitable for high-volume production environments.
Key Features
Multi-Machine Operation Efficiency
One operator can manage multiple machines, reducing labor cost and improving productivity.
High Power Soldering System
Equipped with 150W–200W German-style silver heating system for fast heating and stable performance.
Precision Soldering Tip Positioning Technology
Patented positioning structure ensures accurate and stable soldering point control.
Intelligent Programming System
Graphical interface supports array programming, quick editing, pause/resume functions, and efficient path modification.
High-Speed Motion Control
Imported motion components ensure high-speed operation up to 800 mm/s with ±0.02 mm repeat accuracy.
IO Interface Expansion
Supports multiple IO ports for fixture control and full automation line integration.
Vision Positioning System Compatibility
Can connect with vision systems for coordinate correction and improved soldering accuracy.
Stable Industrial Performance
Designed for continuous operation in high-demand production environments.
Flexible Process Control
Allows real-time adjustment of soldering parameters and process optimization.
High Yield Improvement
Improves soldering consistency and reduces defective rate.
Technical Specifications
| Item | SpecificationSpecification |
Axis Travel | X300 / Y300 / Z100mm, Rotation 360° |
Working Area | W250 × L290mm |
Overall Dimension | W650 × D650 × H900mm |
Max Moving Speed | X/Y: 0.1–800mm/s; Z: 0.1–500mm/s; R-axis: 0.1–600°/s |
Repeat Positioning Accuracy | X/Y/Z: ±0.02mm; R-axis: ±0.2° |
Single Worktable Load Capacity | 8KG |
Input Voltage | 220V |
Input Air Pressure | 4–8kg/cm² |
Teaching Method | Programmer Teaching |
Program Storage | 1000 groups saved, max 8000 commands per group |
Applicable Solder Wire | Φ0.3–1.2mm; wire peeling function only for Φ0.8–1.2mm |
Heating Power Per Soldering Iron | 150W–200W |
No-Load Temperature | 200~450℃ |
Temperature Compensation Range | ±50℃ |
Product Advantages
High Efficiency Automation
Supports multi-machine operation to reduce labor requirements.
Ultra-High Precision
±0.02mm repeat accuracy ensures consistent soldering quality.
Advanced Motion System
Imported components guarantee smooth and stable operation.
Flexible Programming Control
Easy editing, modification, and process optimization.
Vision System Upgrade Option
Enhances positioning accuracy and reduces alignment errors.
Strong System Integration
Compatible with production line automation systems.
Stable Long-Term Operation
Designed for continuous industrial use.
Improved Production Yield
Reduces soldering defects and improves product quality.
Working Principle
The 4-axis soldering robot operates by using a multi-axis motion control system that precisely positions the soldering tip over target points on the PCB or workpiece. The heating system maintains stable temperature control while the control software executes pre-programmed soldering paths.
Optional vision systems can be used to correct positional deviations, ensuring accurate alignment. The system supports real-time control, allowing operators to pause, adjust, or modify soldering paths during operation.
Applications
PCB Assembly Manufacturing
Electronics Production Lines
Automotive Electronics
Communication Equipment Manufacturing
Smart Device Assembly
LED Industry Soldering
Industrial automation equipment
Medical Electronics Manufacturing
Precision Component Assembly
High-Volume Manufacturing Lines
Why Choose Shenzhen Chuera Electronics Technology Co., Ltd.
Shenzhen Chuera Electronics Technology Co., Ltd. specializes in intelligent soldering systems, automation equipment, dispensing machines, screw locking systems, and industrial electronic manufacturing solutions. We provide high-precision, stable, and efficient production equipment for global manufacturing industries.
With strong R&D capability and strict quality control systems, we support OEM and ODM customization to meet diverse industrial automation requirements.
FAQ
1. What is a 4-axis soldering robot used for?
It is used for automated soldering in electronics and PCB manufacturing.
2. Can one operator control multiple machines?
Yes, one operator can manage multiple units to improve efficiency.
3. What is the positioning accuracy?
The system achieves ±0.02 mm repeat positioning accuracy.
4. Does it support vision systems?
Yes, it can integrate with vision positioning systems.
5. Is programming easy?
Yes, it supports graphical programming and array editing.
6. What industries use this machine?
Electronics, automotive, communication, LED, and industrial manufacturing.
7. Can it run continuously?
Yes, it is designed for continuous industrial operation.
8. What is the speed of the machine?
It can reach up to 800 mm/s motion speed.
9. Does it support IO expansion?
Yes, multiple IO interfaces are available for automation integration.
10. Why choose this soldering robot?
It offers high speed, high precision, intelligent control, and strong industrial stability.
