Product Overview

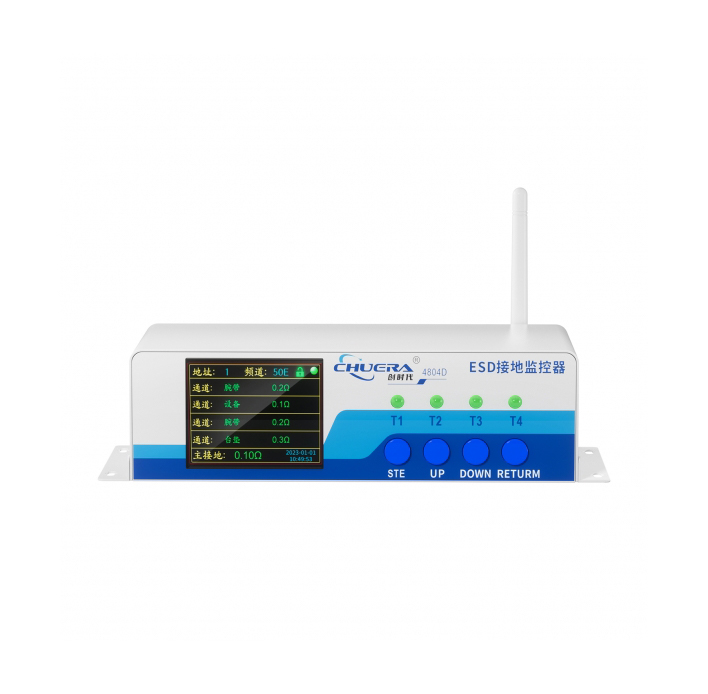

The Smart IoT ESD ground monitoring System is an intelligent electrostatic protection solution designed to continuously monitor the grounding status of personnel working in ESD-sensitive environments. Unlike traditional wrist strap testers that only verify grounding before entering a workstation, this system provides real-time monitoring throughout the entire production process, ensuring continuous ESD compliance and reducing the risk of electrostatic discharge damage.
In modern electronics manufacturing, static electricity remains one of the leading causes of hidden product defects and component failures. A single electrostatic discharge event can damage integrated circuits, semiconductors, sensors, communication modules, and other sensitive electronic components. Continuous grounding verification is therefore critical for maintaining production quality and preventing costly failures.
The system combines intelligent monitoring technology, IoT connectivity, data management, and alarm functions to create a comprehensive ESD control platform. It continuously detects wrist strap and grounding conditions, automatically identifies abnormal grounding situations, and provides immediate visual and audible alerts when grounding integrity is compromised.
By integrating with factory networks and intelligent management platforms, the Smart IoT ESD Ground Monitoring System enables manufacturers to establish digital ESD management processes, improve traceability, and support Industry 4.0 smart factory initiatives.
Key Features
Continuous Grounding Monitoring
Monitors personnel grounding status in real time without interrupting production operations.
IoT Connectivity
Supports intelligent factory networking and centralized ESD management platforms.
Real-Time Alarm Function
Provides immediate visual and audible alerts when grounding conditions become abnormal.
Personnel ESD Compliance Management
Helps ensure operators remain properly grounded throughout production activities.
Centralized Monitoring Platform
Supports remote management and monitoring across multiple workstations and production areas.
Historical Data Recording
Stores monitoring records for traceability, auditing, and compliance verification.
Intelligent User Management
Supports account-based access control and permission management.
Smart Factory Integration
Compatible with Industry 4.0 and intelligent manufacturing systems.
Product parameters
Parameter Item | Wrist Strap | Mat | Equipment |
Default Factory Monitoring Range | 750K—35M±10% | ≤10M±10% | ≤4Ω±10% |
Open Circuit Voltage | ≤1.55V | ≤1.55V | ≤1.55V |
Scanning Frequency | ≤100ms | ≤100ms | ≤100ms |
Maximum Resistance Adjustment Range | 10K—100M±10% | 10K—100M±10% | 0-20Ω |
Product Advantages
Prevent Hidden Product Defects
Continuous monitoring reduces the risk of electrostatic discharge events that may cause latent product failures.
Improve ESD Compliance
Helps manufacturers comply with ESD control standards and internal quality requirements.
Enhance Product Reliability
Maintains consistent grounding protection throughout manufacturing operations.
Support Digital Factory Management
Provides real-time ESD monitoring data for intelligent production management systems.
Reduce Human Error
Automatically detects grounding failures without relying solely on manual inspections.
Improve Traceability
Monitoring records can be used for quality investigations and process audits.
Typical Applications
Electronics Manufacturing
Continuous personnel grounding monitoring for PCB assembly and electronic product manufacturing.
SMT Production Lines
Supports ESD compliance management in component placement, soldering, and inspection processes.
Semiconductor Manufacturing
Protects highly sensitive semiconductor devices from electrostatic discharge damage.
Communication Equipment Manufacturing
Ensures grounding integrity during assembly and testing of networking and communication products.
Medical Electronics Manufacturing
Provides ESD protection for sensitive medical devices and electronic healthcare equipment.
New Energy Industry
Protects battery management systems, energy storage components, and electronic control units.
Precision Electronics Assembly
Supports ESD control programs in high-value product manufacturing environments.
Aerospace & Defense Electronics
Maintains strict electrostatic protection standards for mission-critical electronic assemblies.
FAQ
Why is continuous ESD monitoring important?
Traditional wrist strap testers only verify grounding before work begins. Continuous monitoring ensures grounding protection remains effective throughout production.
What happens if grounding is lost?
The system immediately triggers visual and audible alarms, allowing operators to correct the issue before product damage occurs.
Can the system monitor multiple workstations?
Yes. Multiple monitoring points can be connected to a centralized management platform.
Does the system support smart factory integration?
Yes. It is designed to support IoT connectivity and Industry 4.0 manufacturing initiatives.
Is the system suitable for semiconductor manufacturing?
Yes. Continuous grounding monitoring is widely used in semiconductor and electronics production facilities.
Can monitoring records be stored?
Yes. Historical monitoring data can be retained for traceability and compliance management.
