Product Overview

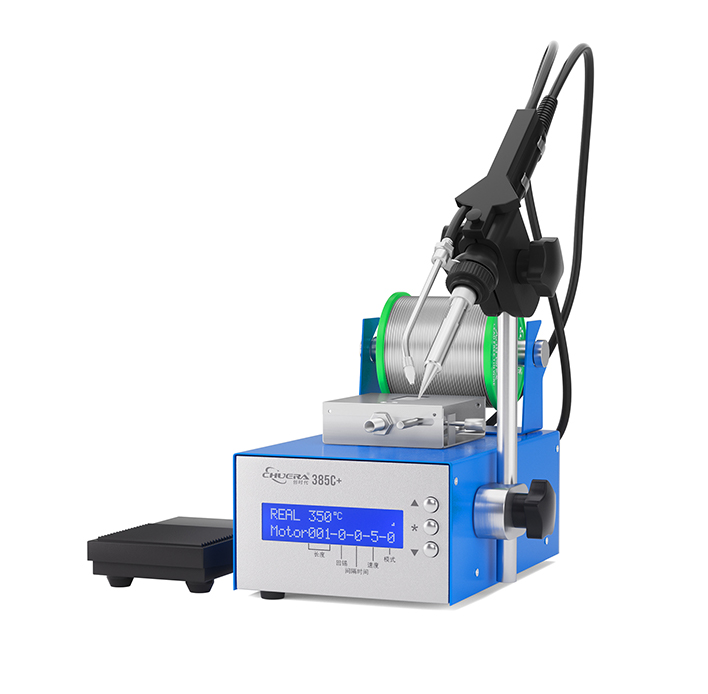

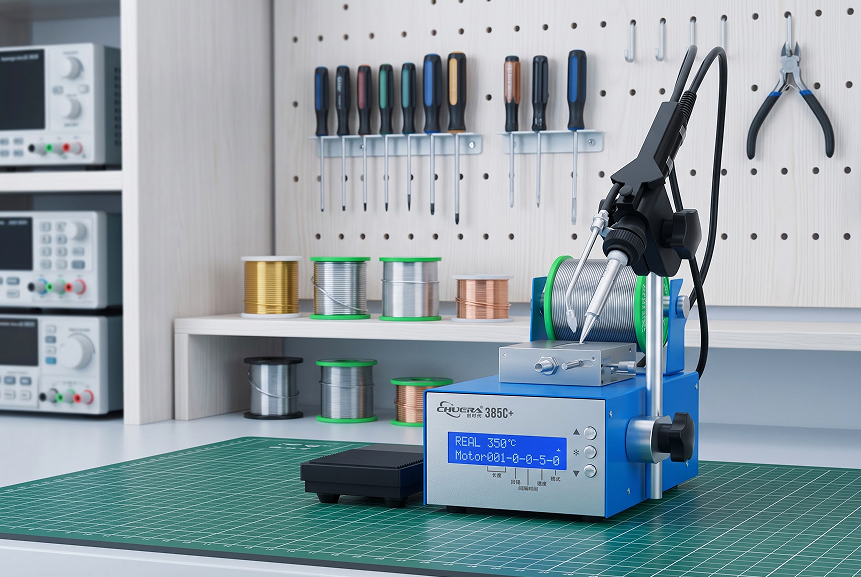

The 385C+ Digital automatic solder feeding station is a professional-grade soldering solution designed to improve soldering efficiency, consistency, and operator productivity in modern electronics manufacturing environments. Combining intelligent solder wire feeding technology with precise temperature control, the system provides a reliable and efficient solution for production lines, assembly workshops, repair stations, and electronic manufacturing facilities.

Traditional manual soldering often requires operators to simultaneously control the soldering iron and solder wire, resulting in inconsistent solder joints, increased operator fatigue, and reduced production efficiency. The 385C+ addresses these challenges by integrating an automatic solder feeding system that delivers solder wire accurately and consistently to the soldering point, reducing manual intervention and improving process repeatability.

Equipped with a digital LCD display, the station enables precise temperature adjustment and easy solder feeding parameter configuration. Operators can select either automatic or manual solder feeding modes according to specific production requirements. Adjustable solder feeding speed, feeding length, feeding time, and feeding frequency provide exceptional flexibility for handling a wide variety of soldering applications.

The station utilizes a high-quality ceramic heating element combined with an RTD temperature sensor to achieve rapid heating performance and stable temperature control. This advanced thermal management system ensures consistent soldering quality while meeting the demanding requirements of lead-free soldering processes.

In addition, the 385C+ incorporates an ESD-safe design to protect sensitive electronic components from electrostatic discharge damage. The adjustable solder retraction function minimizes solder waste, helping manufacturers reduce operating costs and improve material utilization.

Whether used for PCB assembly, wire harness manufacturing, automotive electronics production, communication equipment assembly, or industrial electronics manufacturing, the 385C+ Digital Automatic Solder Feeding Station delivers reliable performance, improved efficiency, and superior soldering quality.

Key Features

Intelligent Automatic Solder Feeding System

The integrated solder wire feeding mechanism automatically delivers solder wire to the soldering point, reducing manual operation and improving soldering consistency.

LCD Digital Display

The clear LCD display provides precise temperature monitoring and convenient solder feeding parameter adjustment for improved process control.

Automatic and Manual Feeding Modes

Users can freely switch between automatic feeding mode and manual feeding mode according to production requirements and application scenarios.

Adjustable Solder Feeding Parameters

Feeding speed, feeding length, feeding duration, and feeding frequency can all be adjusted independently, providing maximum flexibility for different soldering tasks.

Solder Retraction Function

The adjustable solder withdrawal function helps reduce solder wire waste and improves material efficiency during operation.

Ceramic Plug-In Heating Element

The plug-in ceramic heating core delivers rapid heat-up performance while simplifying maintenance and replacement procedures.

RTD Sensor Temperature Control

Advanced RTD sensor technology continuously monitors temperature and maintains stable thermal performance throughout the soldering process.

Fast Heating and Stable Temperature

The high-efficiency heating system ensures quick temperature recovery and consistent soldering quality during continuous operation.

ESD-Safe Design

Anti-static protection safeguards sensitive electronic components from electrostatic discharge damage during assembly and repair operations.

Flexible Control Options

Compatible with both foot pedal switches and manual feed switches, allowing operators to choose the most convenient working method.

Lead-Free Soldering Compatibility

Designed to meet the temperature and performance requirements of modern lead-free manufacturing processes.

Technical Specifications

Product Advantages

Increase Production Efficiency

Automatic solder feeding significantly reduces repetitive manual operations, allowing operators to complete soldering tasks more quickly and efficiently.

Improve Soldering Consistency

Controlled solder wire delivery helps maintain consistent solder volume and improves solder joint quality across production batches.

Reduce Operator Fatigue

Automatic feeding minimizes hand coordination requirements, reducing fatigue during long production shifts.

Minimize Solder Waste

The adjustable solder retraction function prevents excessive solder consumption and lowers material costs.

Enhance Product Quality

Stable temperature control and accurate solder delivery contribute to reliable solder joints and improved product performance.

Protect Sensitive Components

The ESD-safe design reduces the risk of electrostatic damage to electronic components and assemblies.

Lower Maintenance Costs

The plug-in ceramic heating element design allows fast replacement and simplified maintenance procedures.

Support Multiple Production Requirements

Adjustable feeding parameters make the station suitable for a wide range of products, solder wire diameters, and assembly processes.

Working Principle

The 385C+ Digital Automatic Solder Feeding Station integrates an intelligent solder wire feeding mechanism with a precision temperature-controlled soldering system.

During operation, the ceramic heating element rapidly heats the soldering tip to the desired temperature while the RTD sensor continuously monitors thermal conditions and provides feedback to the control system. This closed-loop temperature control ensures stable soldering performance and minimizes temperature fluctuations.

When solder is required, the automatic feeding mechanism delivers a precisely controlled amount of solder wire according to the preset feeding parameters. Operators can adjust feeding speed, feeding length, feeding duration, and feeding frequency to match different soldering applications.

After solder delivery, the solder retraction function can automatically pull back excess solder wire, reducing waste and improving process cleanliness. Combined with ESD protection and intelligent temperature control, the system provides efficient, repeatable, and high-quality soldering results.

Applications

PCB Assembly Manufacturing

Ideal for manual and semi-automatic soldering operations during printed circuit board assembly and repair.

Consumer Electronics Production

Widely used in the manufacturing of smartphones, wearable devices, smart home products, and electronic accessories.

Wire Harness Assembly

Suitable for wire connection soldering, cable assembly production, and electrical harness manufacturing.

Automotive Electronics

Supports the production of automotive control units, sensors, wiring systems, and electronic modules.

Communication Equipment Manufacturing

Used for assembling communication devices, networking equipment, connectors, and telecommunications products.

Industrial Control Systems

Provides reliable soldering performance for Industrial automation equipment and control system assembly.

LED Lighting Manufacturing

Suitable for LED driver boards, lighting modules, and electronic lighting products.

Electronics Repair & Maintenance

An excellent solution for repair centers, maintenance departments, and electronic service workshops.

Why Choose Shenzhen Chuera Electronics Technology Co., Ltd.

Founded in 2010, Shenzhen Chuera Electronics Technology Co., Ltd. is a National High-Tech Enterprise specializing in intelligent Soldering equipment, ESD control solutions, environmental monitoring systems, and industrial electronic tools.

The company integrates research and development, manufacturing, sales, and technical services to provide innovative solutions for global customers. With more than 20 patents and software copyrights, ISO-certified quality management systems, and extensive industry experience, Chuera has become a trusted supplier for electronics manufacturers worldwide.

Our professional engineering team continuously develops advanced soldering technologies to help customers improve production efficiency, product quality, and manufacturing reliability. From standard products to customized OEM and ODM solutions, Chuera delivers comprehensive support throughout the entire project lifecycle.

FAQ

What is the primary advantage of the 385C+?

The integrated automatic solder feeding system improves soldering efficiency, consistency, and operator productivity.

Can the solder feeding parameters be adjusted?

Yes. Feeding speed, feeding length, feeding time, and feeding frequency can all be adjusted independently.

Does the station support manual operation?

Yes. Both automatic and manual solder feeding modes are available.

Is the product suitable for lead-free soldering?

Yes. The 385C+ is specifically designed to support lead-free soldering applications.

How does the solder retraction function work?

The system can automatically retract solder wire after feeding, helping reduce waste and improve material utilization.

What type of heating element is used?

The station uses a ceramic plug-in heating element for rapid heating and easy maintenance.

Is the station ESD safe?

Yes. The anti-static design helps protect sensitive electronic components from electrostatic discharge damage.

Can a foot switch be connected?

Yes. The station supports optional foot pedal operation for greater convenience and productivity.

Which industries commonly use this product?

The 385C+ is widely used in PCB assembly, consumer electronics, automotive electronics, communication equipment manufacturing, industrial automation, and wire harness production.

Does Shenzhen Chuera support OEM and ODM services?

Yes. We provide customized OEM and ODM solutions based on customer requirements and application needs.
