Product Overview

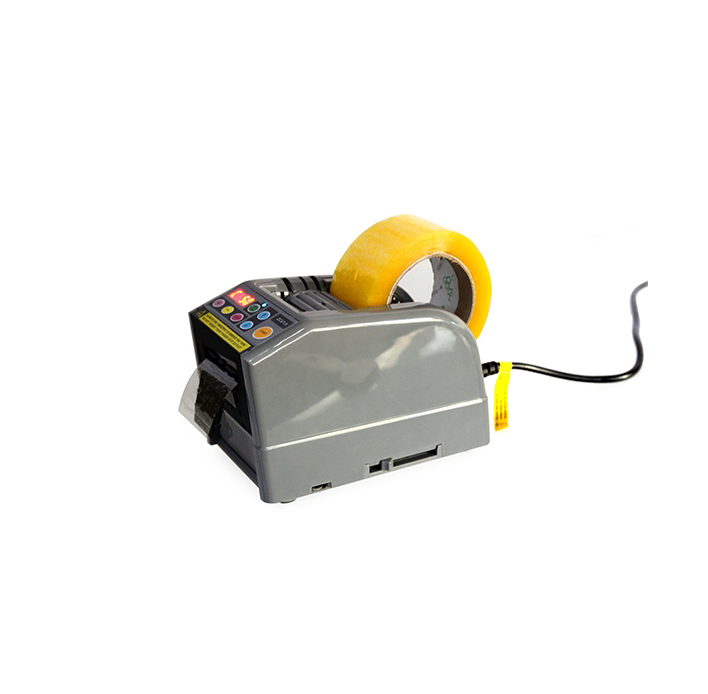

The ZCUT-9 Automatic Tape Cutting Machine is a high-efficiency industrial tape dispensing and cutting system designed for precise and repeatable cutting operations. It eliminates manual cutting errors and significantly improves production efficiency in packaging, electronics, and industrial assembly processes.
The machine supports a wide cutting range from 5mm to 999mm, making it suitable for various tape lengths and material requirements. With its intelligent memory function and multi-material compatibility, it is widely used in modern manufacturing environments requiring consistent and accurate tape processing.
Key Features
Adjustable Cutting Length
Supports precise cutting from 5mm to 999mm for flexible production needs.
Tool-Free Tape Installation
No shaft installation required, making tape loading fast and convenient.
Safety Blade Design
Narrow blade opening ensures safe operation during use.
Memory Function System
Stores up to 6 preset cutting lengths for fast switching.
Multi-Material Compatibility
Suitable for tape, protective film, copper foil, aluminum foil, and insulation materials.
Dual Roll Installation
Supports two rolls of tape simultaneously for higher efficiency.
Dual Photoelectric Sensor System
Ensures accurate and stable cutting operation.
Built-in Maintenance Tools
Includes tweezers, oil, and separators for easy maintenance.
Compact Industrial Design
Space-saving structure suitable for production line use.
High Efficiency Operation
Improves productivity and reduces manual labor.
Technical Specifications
Parameter Item | Specification |
Model | ZCUT-9 |
AC Input Voltage | 100V / 120V / 220-240V |
Power Consumption | 24W, Rated 25W (AC100V 50/60Hz) |
Body Size | W116mm * H140mm * D213mm |
Cutting Width Range | 6 ~ 60 mm |
Cutting Length Range | 5 ~ 999 mm |
Tape Feeding Speed | 200 mm/s (for industrial process tapes) |
Max Tape Roll OD | 300 mm |
Compatible Tapes | Protective film, transparent tape, high-temperature tape, masking paper tape |
Standard Accessories | Power cord, 2A built-in fuse, separator, guide plate, tweezers, blade lubricating oil |
Housing Material | Anti-static ABS |
Net Weight | Approx. 2.5 Kg |
Product Advantages
High Precision Cutting
Ensures consistent and accurate tape lengths.
Improved Production Efficiency
Automates cutting process and reduces manual labor.
Multi-Material Application
Suitable for a wide range of industrial materials.
Safe Operation Design
Protects operators with safety blade structure.
Flexible Production Setup
Supports multiple preset cutting modes.
Stable Industrial Performance
Designed for continuous production line operation.
Easy Maintenance
Comes with built-in tools for simple servicing.
Dual Roll Efficiency
Allows simultaneous use of two tape rolls.
Working Principle
The ZCUT-9 operates using an automatic feeding system combined with a precision blade mechanism. The machine measures and cuts tape based on preset length values, controlled by a microprocessor system.
Dual sensors ensure accurate positioning and cutting consistency, while the memory function allows quick switching between different production requirements.
Applications
Electronics Manufacturing

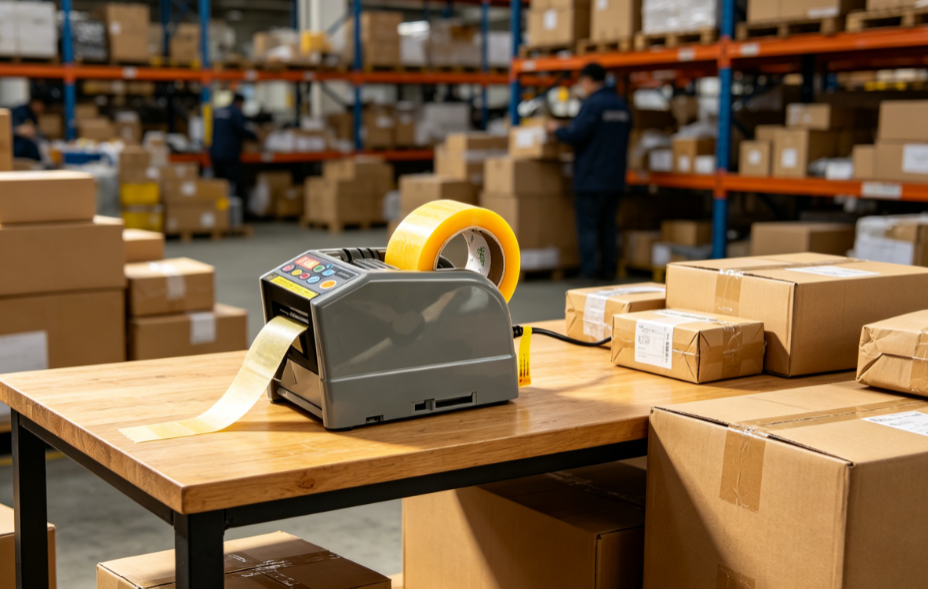

Packaging Industry
PCB Assembly Lines
Automotive Component Assembly
Industrial Production Lines
Insulation Material Processing
Cable & Wire Manufacturing
Labeling & Sealing Operations
Hardware Assembly
General Manufacturing Applications
Why Choose Shenzhen Chuera Electronics Technology Co., Ltd.
Shenzhen Chuera Electronics Technology Co., Ltd. specializes in intelligent automation equipment, soldering systems, dispensing machines, screw locking systems, and industrial manufacturing tools. We focus on delivering high-efficiency, stable, and durable solutions for global industrial production.
With strong R&D capability and strict quality control systems, we support OEM and ODM customization to meet diverse industrial needs.
FAQ
1. What is ZCUT-9 used for?
It is used for automatic cutting of tape and similar materials.
2. What is the cutting range?
It supports cutting lengths from 5mm to 999mm.
3. Can it cut materials other than tape?
Yes, it can cut film, foil, and insulation materials.
4. Does it support multiple tape rolls?
Yes, it supports dual roll installation.
5. Is it easy to operate?
Yes, it has simple controls and memory functions.
6. Does it improve efficiency?
Yes, it significantly reduces manual cutting time.
7. Is it safe to use?
Yes, it uses a safety blade design.
8. How many settings can be stored?
It can store up to 6 preset lengths.
9. Is maintenance complicated?
No, it comes with built-in maintenance tools.
10. Why choose this machine?
It provides high precision, efficiency, and multi-material compatibility for industrial use.
