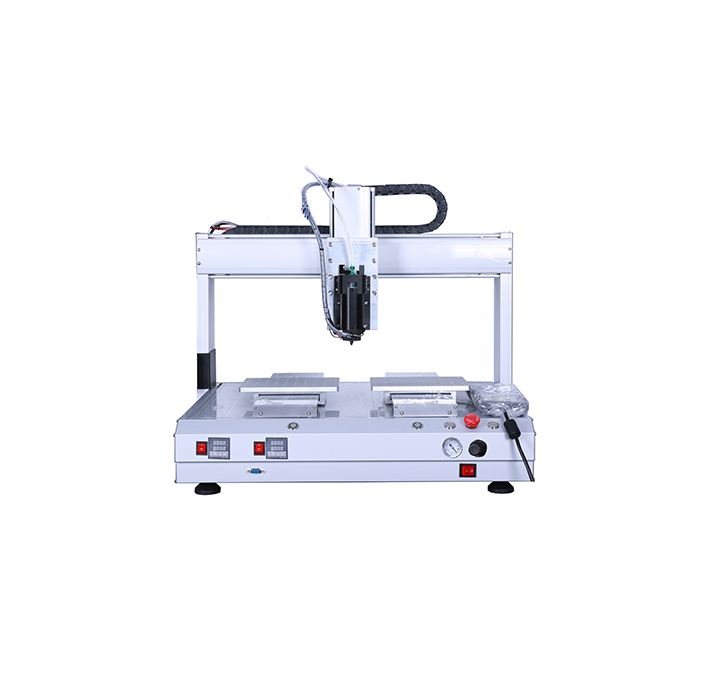

Product Overview

The Dual Y-Axis Automatic Dispensing Machine is a high-precision industrial automation system designed for controlled adhesive application in modern manufacturing environments. It utilizes a dual Y-axis motion structure to improve positioning accuracy, operational stability, and production efficiency, making it suitable for complex dispensing tasks in electronics and industrial assembly processes.

With advanced motion control technology, the system ensures accurate glue placement and consistent dispensing volume across all production cycles. The dual Y-axis design allows for smoother movement, better load distribution, and enhanced stability during high-speed operation, making it ideal for precision manufacturing applications.

This equipment is widely used in electronics production, PCB assembly, automotive component manufacturing, LED sealing, and other industrial bonding processes where accuracy and repeatability are critical. It supports programmable dispensing paths, enabling flexible operation for different product requirements and production workflows.

Key Features

Dual Y-Axis High Stability Structure

Improves motion balance and enhances dispensing accuracy during operation.

High Precision Dispensing Control

Ensures consistent glue volume and accurate positioning.

CNC Intelligent Control System

Supports programmable dispensing paths for complex production requirements.

Smooth Motion Performance

Reduces vibration and improves stability during high-speed dispensing.

Strong Industrial Compatibility

Suitable for integration into automated production lines.

Flexible Programming Options

Allows customized dispensing routes for different product designs.

Reduced Material Waste

Precise control minimizes excess adhesive usage.

High Efficiency Operation

Supports continuous industrial production with stable performance.

Durable Mechanical Design

Built for long-term use in demanding manufacturing environments.

Easy Operation Interface

Simple control system reduces operator training time.

Technical Specifications

Product Advantages

High Precision Movement System

Dual Y-axis structure ensures stable and accurate dispensing performance.

Improved Production Efficiency

Supports continuous operation with reduced manual intervention.

Consistent Dispensing Quality

Ensures uniform adhesive application across all products.

Flexible Production Adaptation

Easily adapts to different product shapes and dispensing requirements.

Strong Structural Stability

Reduces vibration and improves long-term reliability.

Reduced Operating Cost

Automated dispensing reduces labor and material waste.

Easy System Integration

Compatible with automated production line systems.

Long Service Life

Industrial-grade components ensure durable performance.

Working Principle

The machine operates through a CNC-controlled motion system that drives the dispensing head along programmed X, Y, and dual Y-axis coordinated movements. The adhesive is precisely controlled through a pressure and valve system, ensuring consistent flow and accurate placement.

The dual Y-axis structure enhances mechanical stability during motion, reducing deflection and improving accuracy in high-speed operation. The system follows pre-programmed paths to achieve repeatable dispensing results suitable for mass production environments.

Applications

PCB Electronics Manufacturing

LED Lighting Assembly

Automotive Electronics

Semiconductor Packaging

Household Appliance Assembly

Communication Equipment Manufacturing

Industrial Automation Production

Sensor & Module Bonding

Precision Mechanical Assembly

Smart Device Manufacturing

Why Choose Shenzhen Chuera Electronics Technology Co., Ltd.

Shenzhen Chuera Electronics Technology Co., Ltd. is a professional manufacturer specializing in intelligent soldering systems, dispensing equipment, ESD protection products, and Industrial automation solutions. We focus on delivering high-precision, stable, and efficient production equipment for global manufacturing industries.

With strong R&D capability, strict quality control, and OEM/ODM customization services, we provide reliable solutions that help customers improve production efficiency and product quality.

FAQ

1. What is the Dual Y-Axis Dispensing Machine used for?

It is used for precise adhesive dispensing in industrial manufacturing processes.

2. What is the advantage of dual Y-axis structure?

It improves stability, reduces vibration, and increases dispensing accuracy.

3. Can it handle complex dispensing paths?

Yes, it supports CNC programmable paths for complex operations.

4. Is it suitable for mass production?

Yes, it is designed for continuous industrial production.

5. What materials can it dispense?

It can dispense glue, adhesive, sealant, and similar materials.

6. Does it support automation integration?

Yes, it can be integrated into automated production lines.

7. Is operation complicated?

No, it has a simple CNC control interface for easy operation.

8. Does it reduce material waste?

Yes, precise control minimizes excess adhesive usage.

9. What industries use this machine?

Electronics, automotive, LED, semiconductor, and industrial manufacturing.

10. Why choose this machine?

It offers high precision, stable dual-axis motion, and efficient automated dispensing performance.
