Product Overview

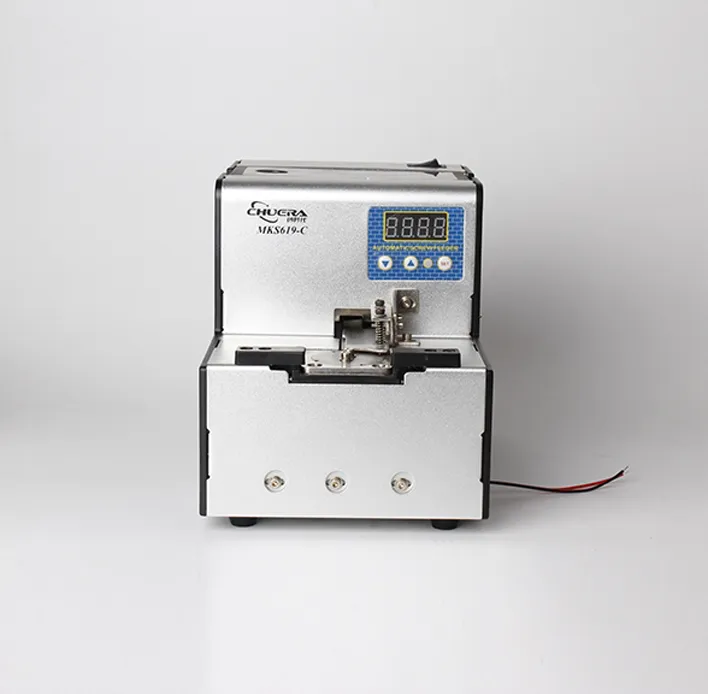

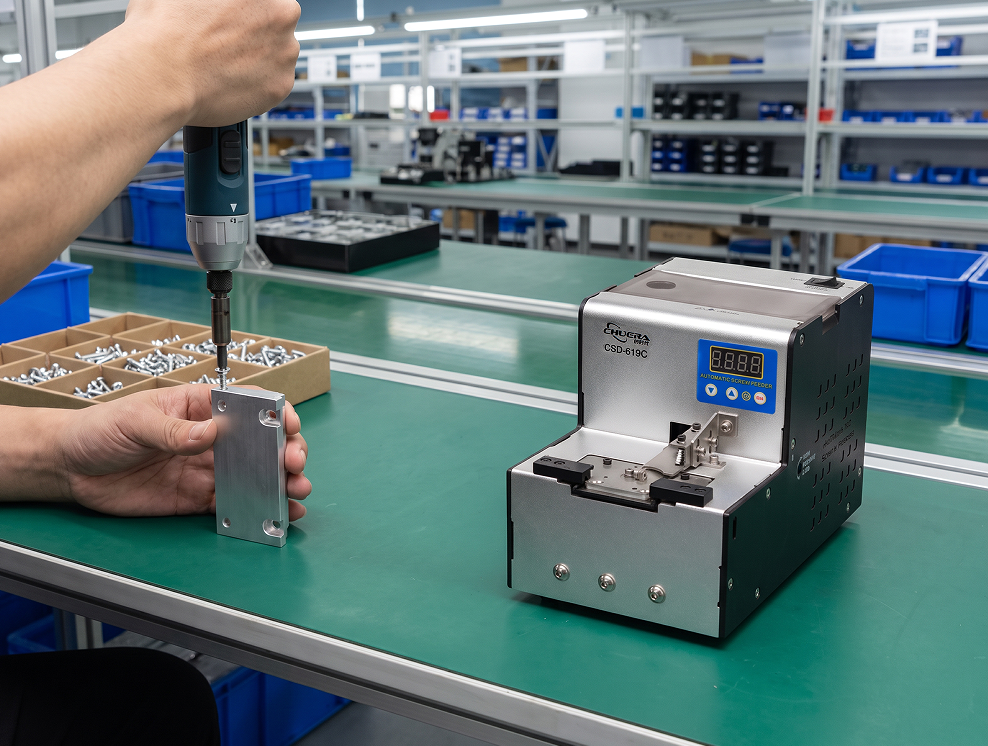

The CSD-619C Rotary Screw Sorting Machine is a high-efficiency turntable-type Screw Feeding System designed for automated production lines. It is engineered to improve screw sorting accuracy and feeding speed while eliminating manual handling errors in assembly processes.

The machine uses a rotary disk structure combined with intelligent rail adjustment to support multiple screw types, ensuring stable and continuous feeding performance. It is widely used in electronics manufacturing, appliance assembly, and industrial automation environments.

With anti-jamming design and independent vibration control, the system ensures smooth operation and significantly improves production efficiency.

Key Features

Adjustable Rail System

Supports flexible adjustment for different screw types and lengths.

Wide Screw Compatibility

Compatible with M1.0–M5.0 standard screws, special screws, short screws, and washer screws.

Anti-Jamming Design

Screws that are not correctly positioned are automatically returned to the drum for re-circulation.

Stable Feeding Accuracy

Ensures precise screw positioning without front-back vibration at pickup point.

Independent Vibration Control

Feeding and vibration systems can be controlled separately for optimized speed adjustment.

Adjustable Feeding Delay

Allows flexible control of screw feeding speed via delay settings.

Easy Operation Design

Simple interface suitable for both experienced and new operators.

Multi-Standard Compatibility

Supports both metric and imperial screw types.

High Efficiency Performance

Each screw cycle saves up to 1.4 seconds compared to traditional systems.

Automatic Counting & Alarm System

Real-time display with automatic stop and fault alarm function.

Screw machine parameters:

Screw head: Suitable for various types of screws (maximum length L = 10MM)

Output speed: 1 pellet per second ± 0.3 seconds

Input voltage: AC 220V - 240V 50Hz

Product dimensions: 202.5 * 126 * 149 MM

Net weight: Approximately 3.0KG

Product Advantages

High-Speed Sorting System

Improves screw feeding efficiency significantly.

Strong Compatibility

Supports multiple screw types and lengths.

Anti-Jamming Reliability

Ensures smooth continuous operation.

Improved Production Efficiency

Saves time per screw and increases output speed.

Flexible Speed Control

Adjustable delay for precise feeding control.

Stable Industrial Performance

Suitable for long-term production use.

User-Friendly Operation

Easy to learn and operate.

Reduced Labor Cost

Eliminates manual screw sorting.

Working Principle

The CSD-619C operates using a rotary disk mechanism where screws are circulated within a drum system. Properly oriented screws are guided into a track system, while incorrect ones are automatically returned for re-circulation.

Independent vibration control ensures smooth feeding, and adjustable delay settings allow precise control of output speed, making it suitable for various production requirements.

Applications

Electronics Manufacturing

Screw Locking Production Lines

Appliance Assembly

Automotive Components

Smart Device Manufacturing

Industrial Automation Lines

Hardware Assembly

PCB Assembly Support Systems

Mass Production Factories

Precision Assembly Operations

Why Choose Shenzhen Chuera Electronics Technology Co., Ltd.

Shenzhen Chuera Electronics Technology Co., Ltd. specializes in intelligent automation equipment, soldering systems, screw locking machines, dispensing systems, and industrial manufacturing solutions. We deliver stable, efficient, and high-quality equipment for global industrial production needs.

With strong R&D capability and strict quality control, we support OEM and ODM customization for diverse automation applications.

FAQ

1. What is CSD-619C used for?

It is used for automatic screw sorting and feeding in production lines.

2. What screw sizes does it support?

It supports M1.0 to M5.0 screws and special types.

3. Does it have anti-jamming function?

Yes, unaligned screws are automatically recycled.

4. Is feeding speed adjustable?

Yes, delay time can be adjusted for speed control.

5. Does it support different screw types?

Yes, it supports standard, short, and washer screws.

6. Is it suitable for mass production?

Yes, it is designed for industrial continuous use.

7. Does it show counting data?

Yes, it has a digital display with counting function.

8. Is it easy to operate?

Yes, it is simple and user-friendly.

9. Does it improve efficiency?

Yes, it significantly increases screw feeding speed.

10. Why choose this machine?

It provides stable, high-speed, and anti-jamming screw feeding for automation lines.
