Product Overview

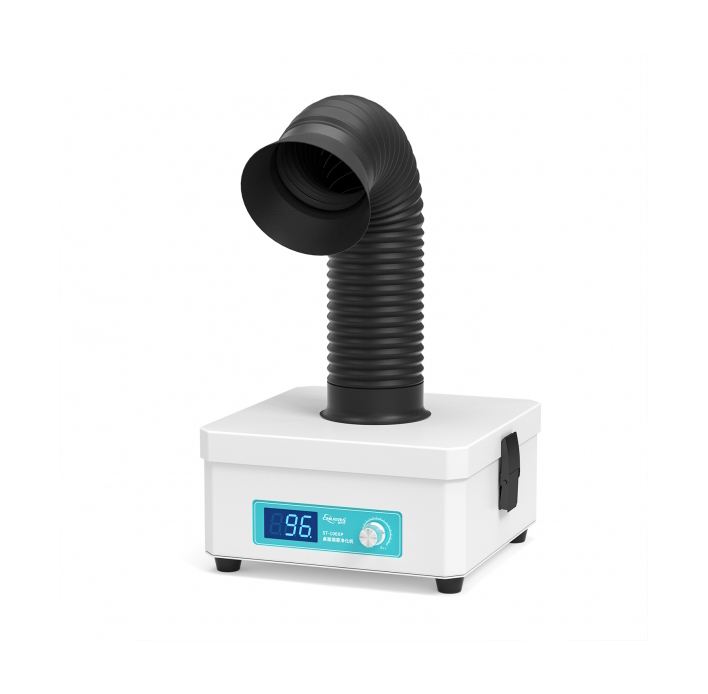

The 100XP desktop solder fume extractor is a compact and high-performance fume extraction system specifically designed for removing solder fumes, smoke particles, and harmful airborne contaminants generated during electronics manufacturing, PCB assembly, soldering, and repair operations. Combining an all-metal integrated housing, efficient multi-stage filtration, and a stable brushless motor, the 100XP provides reliable air purification while creating a safer and cleaner working environment.

Modern soldering processes generate smoke containing fine particles, flux residues, and volatile gases that may affect operator health and contaminate sensitive electronic components. The 100XP captures these contaminants directly at the source, preventing them from spreading throughout the workspace and significantly improving indoor air quality.

Built with a durable one-piece metal enclosure, the extractor offers excellent resistance to impact and vibration, making it suitable for long-term industrial use. Its compact desktop design occupies minimal workspace while maintaining powerful extraction performance. The flexible extraction arm can be freely positioned and securely supported, allowing operators to capture fumes precisely where they are generated.

The system adopts a customized centrifugal impeller driven by a maintenance-free brushless motor, providing stable airflow, low operating noise, and long service life. A multi-stage replaceable filtration system effectively removes smoke, particulate matter, and odors while extending the service life of the primary filter and reducing overall maintenance costs.

With plug-and-play installation that requires no external ducting, the 100XP is an ideal air purification solution for electronics production lines, repair workshops, laboratories, educational institutions, and R&D facilities.

Key Features

All-Metal Integrated Housing

Heavy-duty metal construction provides excellent resistance to impact, vibration, and daily industrial use while ensuring long-term durability.

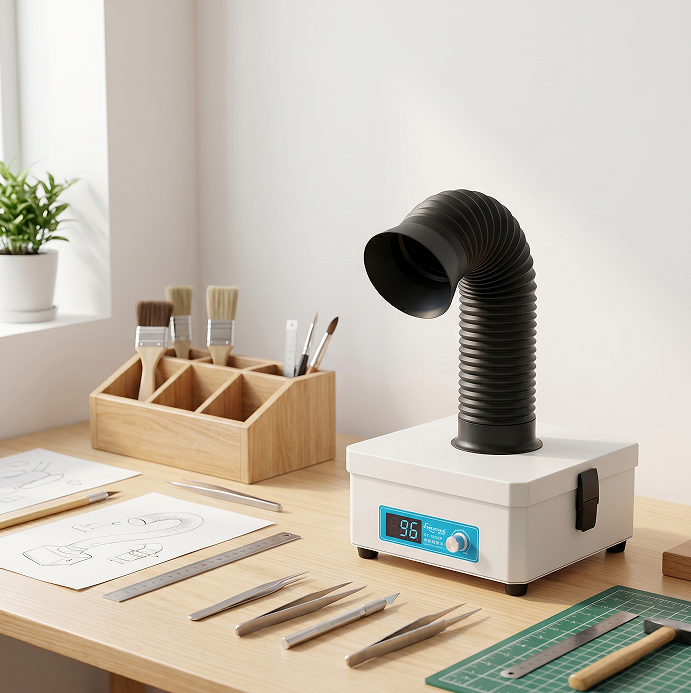

Compact Desktop Design

Space-saving structure fits easily on workbenches without interfering with production operations.

Brushless Motor Technology

Equipped with a maintenance-free brushless motor featuring low noise, high rotational speed, and extended service life.

Customized Centrifugal Fan

Optimized impeller design delivers stable airflow, smooth operation, and efficient fume extraction performance.

Multi-Stage Filtration System

High-efficiency multi-stage filtration effectively captures smoke particles, harmful gases, and airborne contaminants generated during soldering.

Independent Replaceable Filters

Each filter element can be replaced individually, extending the lifespan of the main filter while reducing maintenance costs.

Flexible Extraction Arm

The adjustable extraction arm can be positioned freely and provides strong support for accurate source-capture of solder fumes.

Stepless Airflow Adjustment

Rotary knob allows smooth, stepless airflow control, enabling operators to adjust suction according to different applications.

Quiet Operation

Low-noise design improves workplace comfort during long production shifts.

Tool-Free Installation

Simple plug-and-play setup requires no external ductwork, allowing quick deployment in various working environments.

Technical Specifications

Product Advantages

Superior Structural Durability

The all-metal housing withstands industrial environments and offers greater mechanical strength than conventional plastic enclosures.

Stable Extraction Performance

The customized centrifugal fan delivers consistent airflow and reliable smoke capture during continuous operation.

Longer Equipment Lifespan

The high-performance brushless motor reduces wear, minimizes maintenance requirements, and ensures long-term operational stability.

Lower Operating Costs

Independent filter replacement design allows users to replace only the necessary filter stage, extending the service life of the primary filter and reducing consumable costs.

Cleaner Indoor Air

The multi-stage filtration system effectively removes smoke particles and airborne contaminants, improving overall workplace air quality.

Flexible Operation

The adjustable extraction arm enables accurate positioning for different soldering tasks and workstation layouts.

Easy Installation and Maintenance

No external ducting is required, making installation quick and maintenance simple for everyday operation.

Ideal for Modern Electronics Manufacturing

Combining compact size, efficient filtration, and industrial-grade reliability, the 100XP is well suited for electronics production, repair, and laboratory environments.

Working Principle

The 100XP Desktop Solder Fume Extractor utilizes localized source-capture technology to remove harmful solder fumes before they disperse into the workplace. During soldering operations, smoke and airborne contaminants are drawn through the flexible extraction arm by a high-efficiency brushless motor and customized centrifugal fan.

The contaminated air then passes through a multi-stage filtration system, where particulate matter, smoke residues, and odor-causing substances are progressively removed. The modular filter design allows each filter stage to be replaced independently, improving maintenance efficiency and reducing operating costs.

After filtration, clean air is safely discharged back into the workspace, providing continuous air purification without requiring external ventilation ducts. This efficient filtration process helps improve operator safety, protect sensitive electronic products, and maintain a cleaner production environment.

Applications

Electronics Manufacturing

PCB Assembly

Manual Soldering Workstations

Electronics Repair Centers

SMT Rework Stations

Quality Inspection Departments

Research & Development Laboratories

Technical Training Centers

Educational Laboratories

Small Electronics Production Workshops

Why Choose Shenzhen Chuera Electronics Technology Co., Ltd.

Shenzhen Chuera Electronics Technology Co., Ltd. specializes in intelligent Soldering equipment, ESD control solutions, fume extraction and purification systems, automation equipment, and industrial electronic tools. With extensive experience in electronics manufacturing support equipment, Chuera provides reliable products that improve workplace safety, production efficiency, and product quality. The company also offers professional OEM and ODM services to meet diverse customer requirements.

FAQ

What is the 100XP Desktop Solder Fume Extractor used for?

It removes solder fumes, smoke, and airborne contaminants generated during soldering and electronics assembly.

Is it suitable for individual workstations?

Yes. Its compact desktop design is ideal for single-operator workstations and repair benches.

Can the filter be replaced?

Yes. The filtration system is designed for convenient filter replacement and routine maintenance.

Is the unit suitable for continuous operation?

Yes. It is designed for long-term operation in professional manufacturing and repair environments.

What industries commonly use this product?

Electronics manufacturing, PCB assembly, electronics repair, SMT production, laboratories, educational institutions, and quality inspection departments.

Does it improve workplace safety?

Yes. By removing solder fumes at the source, it helps improve air quality and reduce operator exposure to airborne contaminants.

Does Shenzhen Chuera provide OEM and ODM services?

Yes. Customized products and private-label manufacturing services are available according to customer requirements.

What are the main advantages of the 100XP?

Its compact design, efficient filtration, reliable performance, easy maintenance, and suitability for electronics workstations make it an ideal localized fume extraction solution.
